Atlantic Portlights & Deadlights

Stronger Aluminum Outer Frame with Single Welded Joint
By: Lewmar

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

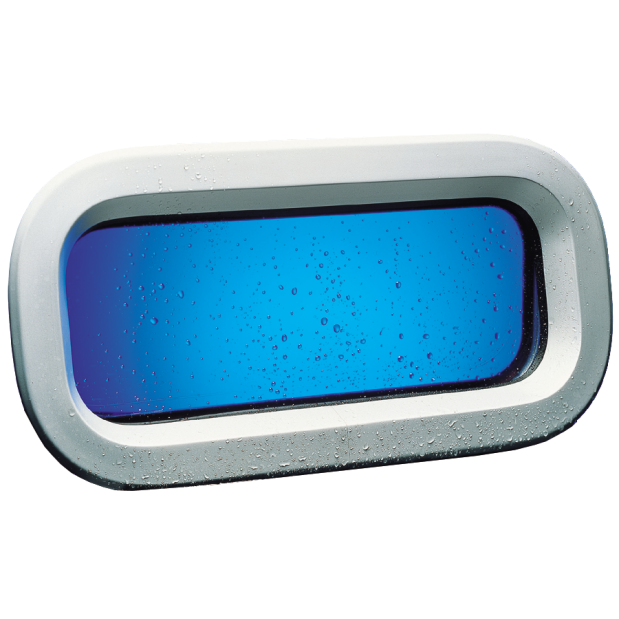

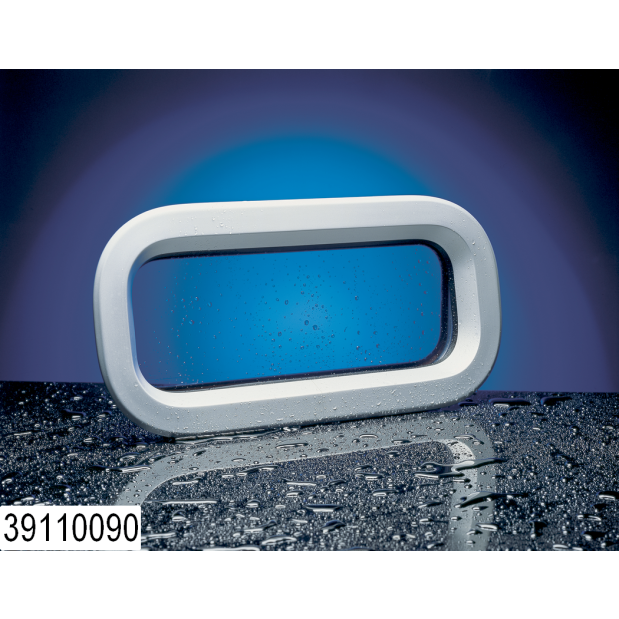

The Atlantic Portlight has clean styling and a clear view through the window.
Its strongly built aluminum outer frame is heavier than Lewmar's Standard Portlight, with just one welded joint.
The 5/16" thick, smoke gray, acrylic lens is bonded to its own aluminum frame for additional stiffness.
The portlight has quick-action metal handles and friction hinges, so it's easy to operate and stays where you leave it.
The interior side is very clean looking, with an anodized aluminum frame and lens trim.

• External frame is designed to drain water, even when angled, thus preventing water from entering the boat when opened
• Friction hinges allow for any open position without the need for knobs, stays or straps
• Quick action metal handles apply correct pressure evenly on the seal, with no need for adjustment
• Comes complete with insect screen and aluminum inside trim
• Easy to install; cut-out shapes are simple
• Spigots (the part that inserts into the hull) for thinner (8-15 mm/0.31-0.59") and thicker (16-24 mm/0.63-0.94") hulls are available; inquire if you don't see what you need
• Note - Portlight opening can be restricted on very thick hulls; at 24mm portlight opening angle is 115°
• Note - Unlike the photo, size 32 has a larger corner radius and has semi-circular, rounded ends with no straight section
• Opening model sizes 10 through 32 are CE approved for hull installation above the waterline (Category A, Area 1)
• Opening sizes 40 through 64 are CE approved for deck, coachroof, cockpit and transom applications (Category A, Area 2a)
• All of the fixed model sizes are CE approved for hull installation (Category A, Area 1)

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDLewmar#AvailabilityDescriptionUOMYour PriceQTY
84858LEW 39110090 39110090Loading...Atlantic Portlight - Size 10 (Nominal 6" x 11" Cut-Out with Spigot for 5/16 - 9/16" Hull)Loading...
129194LEW 39130090 39130090Loading...Atlantic Portlight - Size 30 (Nominal 7" x 15" Cut-Out with Spigot for 5/16 - 9/16" Hull)Loading...
84993LEW 39130070 39130070Loading...Atlantic Portlight - Size 30 (Nominal 7" x 15" Cut-Out with Spigot for 10/16 - 15/16" Hull)Loading...
131125LEW 39132090 39132090Loading...Atlantic Portlight - Size 32 (Nominal 7" x 15" Cut-Out with Spigot for 5/16 - 9/16" Hull)Loading...
92615LEW 39140090 39140090Loading...Atlantic Portlight - Size 40 (Nominal 7" x 18" Cut-Out with Spigot for 5/16 - 9/16" Hull)Loading...
146163LEW 39141070 39141070Loading...Atlantic Fixed Deadlight - Size 40 (Nominal 7" x 18" Cut-Out with Spigot for 10/16 - 15/16" Hull)Loading...
