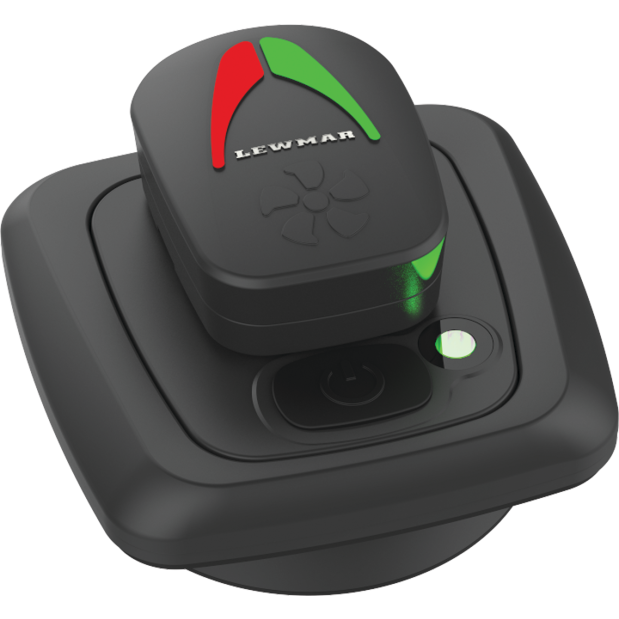

Single Pad Thruster Control Assembly

This Single Pad Thruster Control Assembly provides a superior tactile control for a single thruster installations.

The controller is designed for all Lewmar TT, RT, SRT & VRT thrusters fitted with a blue box and can be fitted to thrusters fitted with a black-box using a controller adapter.

The controller is installed without the need for rear access and features a snap-on bezel to neatly hide the mounting screws.
A cover is also included, providing additional security against accidental use and giving extra environmental protection.

If replacing a previous generation touch panel, joystick panel or dual joystick panel, the existing mounting hole and fixing screw positions can be reused.

• Ergonomic control ‘pad’ gives tactile feedback
• Membrane switch panel sealed from dust and moisture ingress
• Single and dual controllers available
• 12-24V dual voltage supply
• Multi-function LED indicator displays system deployment, thruster operation, low voltage, motor temperature warnings & fault conditions
• Fit existing cut-out of Lewmar joysticks
• Removable cover

Upgrade kit allows installation of single or dual controllers into a thruster system with previous generation controllers, see Related Products
