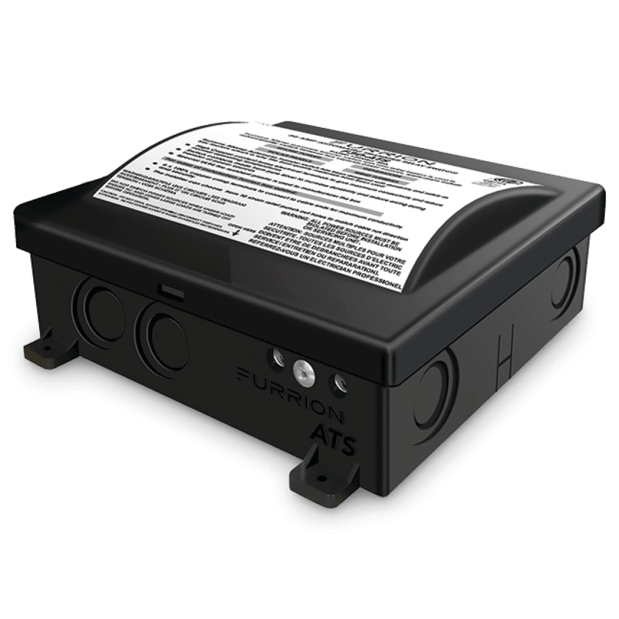

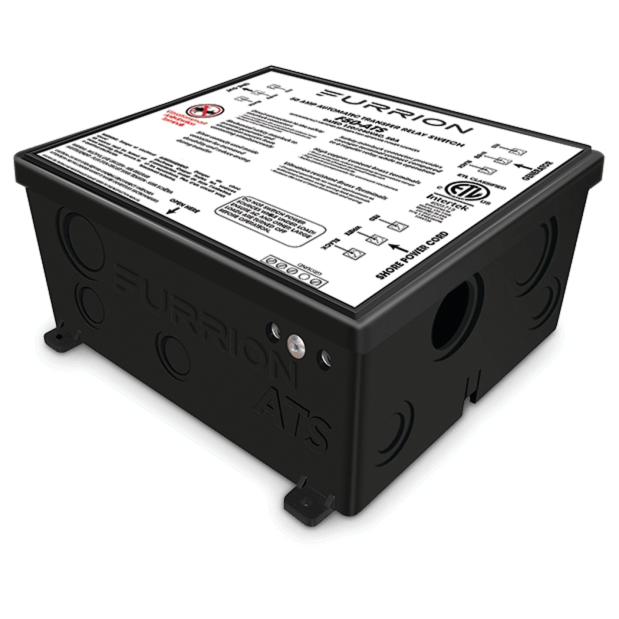

Furrion Transfer Switch

The Furrion Transfer Switch seamlessly transitions between power sources, equipped with a safety interlock and a time delay of 20 to 30 seconds, guaranteeing dependable and secure operation for your RV. Its robust brass terminals ensure superior conductivity, while Vibrationsmart and Climatesmart technologies safeguard against severe road and weather conditions.

Certified to UL1008 safety standards and incorporating a flame-retardant, mountable enclosure, it is crafted for both safety and ease of use.

High Quality Materials
High copper content brass terminals reduce operating temperature, increase conduction and improve safety. A direct connection to the safety interlock contacts provides less resistance in the circuit which reduces heat, improves thermal and electrical conductivity and reduces the risk of a thermal event. The mechanical safety interlock prevents generator and shore power sources from connecting simultaneously and provides a stronger terminal contact.

Safety Features
The Furrion transfer switch features a built-in safe switch interlock system and is used to automatically switch between two separate 125/250V AC power sources. These power sources can be from a generator, shore power cord or inverter. The mechanical interlock between contractors ensures both cannot be used simultaneously, preventing overvoltage on the output line.

Furrion Technology
The transfer switch is equipped with Furrion's Climatesmart and Vibrationsmart technology to ensure the unit is capable of withstanding rough vibrations and extreme temperature fluctuations that are part of a typical mobile lifestyle.

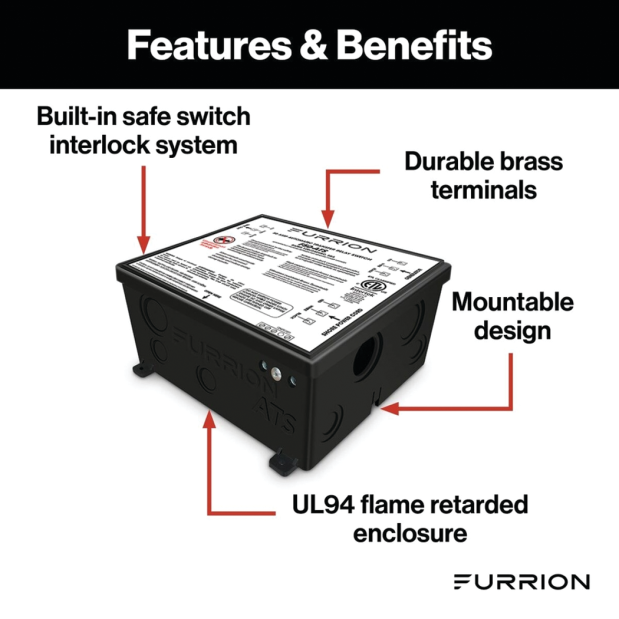

Furrion Transfer Switch Features:
• Safe and Automatic -- The transfer switch has a built-in safe switch interlock system to switch between two power sources
• Safety Feature -- The mechanical interlock between contractors cannot be used in parallel, preventing overvoltage
• Time Delay -- Once AC power from the generator is sensed by the transfer switch at input 2 terminals, it will start a timer and automatically switch over to generator power supply after a 20-30 second delay
• Durable and Reliable -- Designed with Furrion's proprietary Vibrationsmart™ and Climatesmart™ technologies, this ATS is built to withstand constant vibrations and extreme temperatures
• Highest Safety Standards -- The automatic transfer switch comes in a UL94 flame retarded enclosure and is certified to UL standards UL1008
