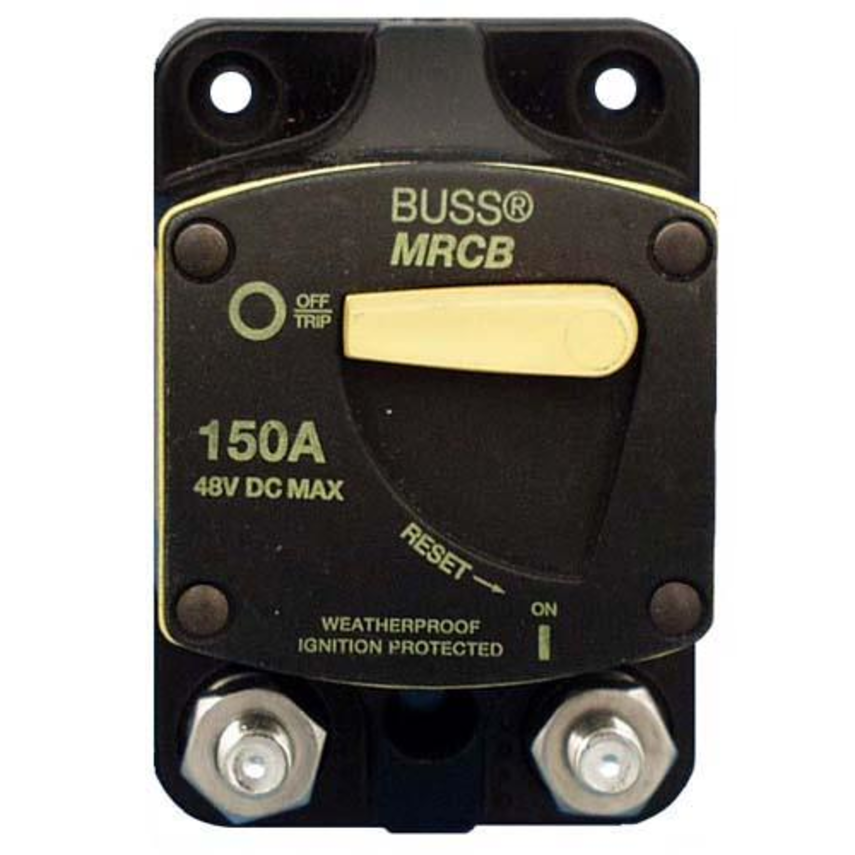

These Bussmann® breakers are available in 50, 70, 110 and 150A sizes and are offered in surface-mount or thru-bulkhead versions. Thru-bulkhead models include a faceplate and install with a simple 2-1/8" holesaw cutout. All are IP66 for use in wet locations. Connections are 5/16" to accept large terminal lugs. All accept input voltage up to 48VDC.
• Switchable/Manual reset
• Single lever
• Ignition protected
• Weather proof
• Mounting hole clearance for 5mm or 10-32 screws
• Robust 5/16-18 electrical termination studs in corrosion resistive materials.
• Large clearance around studs to accept large gauge wire lugs.
• All components meet SAE J1171 Ignition Protection.
• Vapor proof
