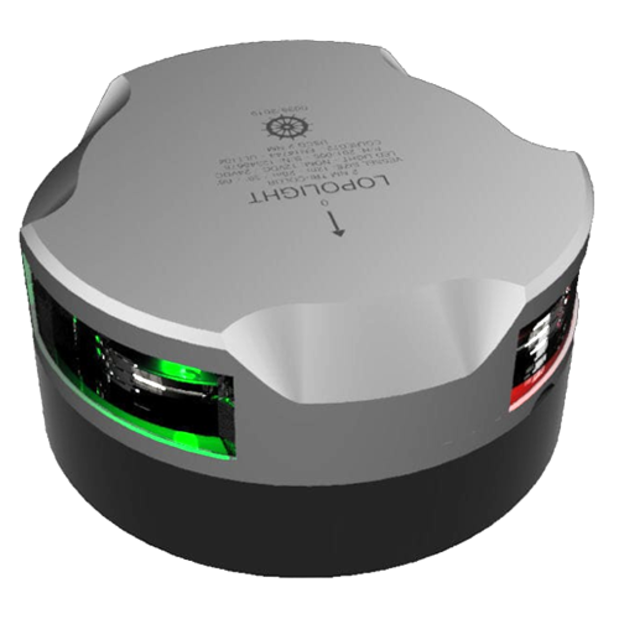

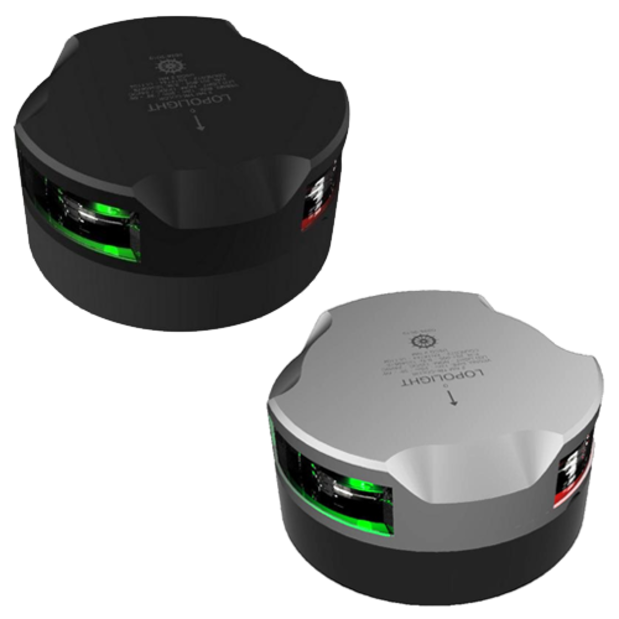

2NM Tri-Color LED Nav Light - Sail 12-20m, Horz Mt
2NM Tri-Color LED Nav Light - Sail 12-20m, Horz Mt, Silver
SKU: 1032788 Item ID: LOP 201-005
- Sailboats 39.4 ft to 65.6 ft
- 112.5/112.5/135 Deg R/G/W Beam
- Mounts on Horizontal Surfaces
Your Price:$607.54/ Each
Availability:
Manufacturer Discontinued - Limited Stock Remaining
Ships immediately
This item is no longer produced by the manufacturer. Limited quantity is available.
Description
What you need to know –
• LED Tri-Color Mast Top Light (combination port/starboard/stern light)
• 360° total visible arc – 2 nautical mile 112.5° red Port/112.5° green Starboard and 2 nm 135° white Stern
• Certified for use on sailboats (only) between 12m and 20m (39.4 ft - 65.6 ft) in length
• Mounts on horizontal surfaces
• Machined aluminum housing
• Standard 20mm (0.79") thick black HDPE K-Lock (twist lock) base
• 12V/24V
• Supplied with 2.3 ft (0.7m) connection cable
Specifications
MFG #:201-005
Type
2NM LED Tri-Color Nav Light - Sailboats 39.4 ft - 65.6 ft, Horizontal Mount, Silver
Housing Finish
Silver
Visibility Miles
2 NM
Visibility Arc
112.5°/112.5°/135°
Dimensions
3.6" Diameter x 1.81" Overall Height
Mount
Horizontal Surfaces
Vessel Length
39.4 - 65.6 ft (12-20m)
Beam Color
Red/Green/White
Beam Intensity
5.4 Candela
Cable Length
2.3 ft (0.7m)
Weight
1.2 lb
Model
Tri-Color Light
IP Rating
IP68
Housing Material
Anodized Aluminum
Operating Temperature
-25°C - 55°C
Cable Routing
Bottom
Current Draw (12/24V)
0.213/0.123 Amps
Nominal Voltage
12/24V
Power Draw
3W
Input Voltage Range
10-32V DC
Included Base
Standard 20mm (0.79") HDPE K-Lock Base
