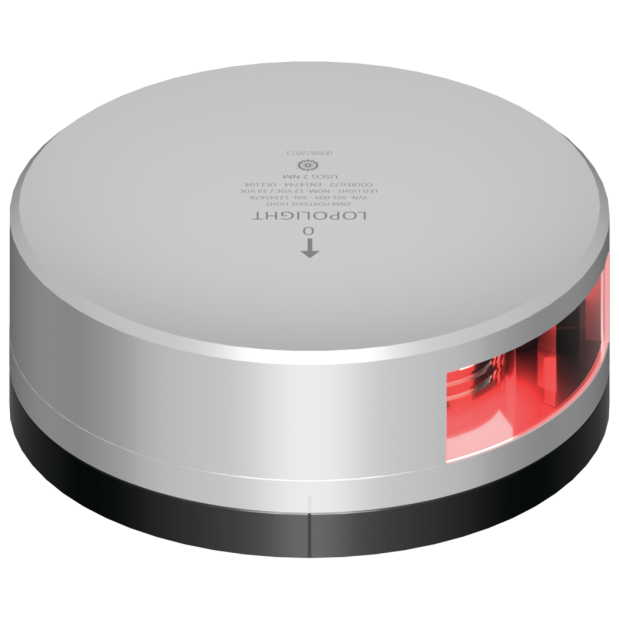

2NM Port - Red LED, Silver w/ FB Base

This navigation light features a housing made of anodized aluminum in a silver color. It is designed to be mounted horizontally. The FB base is specifically designed to center the wiring for antenna-type pole mountings. It offers both a screw-down onto the deck solution and a from-below mounting option. Ultimately, the base ensures a more streamlined and compact profile. It has an operating voltage of 10-32VDC and an IP rating of IP68.

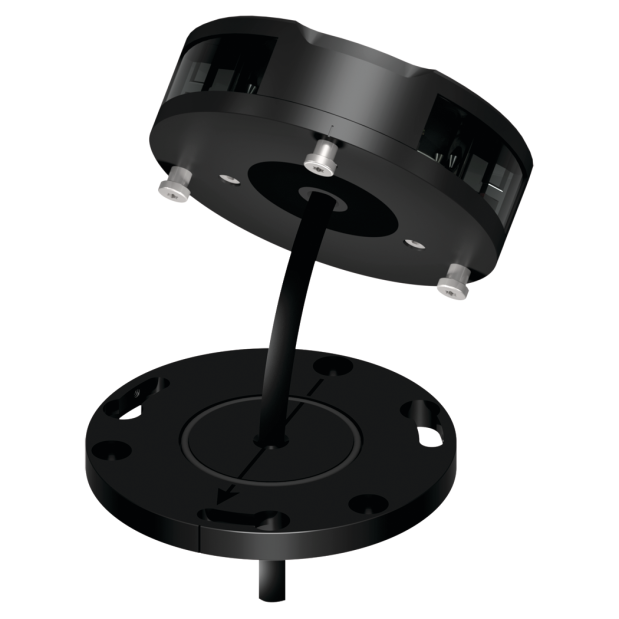

FB Lights with Improved Mounting System
The FB system replaces the standard 20 mm black K-lock base.

Locking Mechanism
There are 2 locking screw positions, only one lock screw is needed, this allows for installation in locations where only one side of the light is accessible (typically for a sidelight installation).

Low Profile
The FB system allows for a lower mounting, the FB mounting is 10 mm lower than the outgoing. You can even mount the light with screws from underneath and save another 8mm.

Waterproof Installation
The outgoing black K-lock plastic base was never intended to be waterproof – the new FB system employs O-rings in the base to ensure that the cable remains dry.

Better Cable Management
With the cable firmly mounted in the center it prevents cable management issues seen in the previous version.
Please note that the FB lights are NOT compatible with the K-lock mounting system.
