What you need to know –

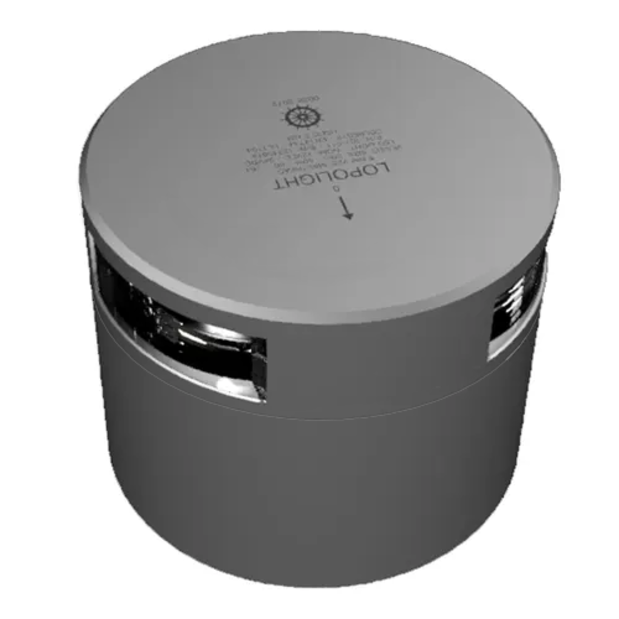

• LED Masthead (Steaming) Light - with dual lenses
• 5 Nautical Mile visibility, 225° white beam
• Certified for use on all vessels 20m to 50m (65.6 - 164 ft) in length
• Mounts on horizontal surfaces
• Machined aluminum housing
• Available cable gland outlets - (2) at side, (2) at bottom
• 12/24V
Lopolight offers 2 styles of 5 NM Horizontal Mount Masthead lights, the ones offered here are the sleeker, "updated" models.
See Related Products for their taller, more traditional-style models of these horizontal mount masthead lights.
This 20-50m vessel, horizontal mount Masthead Light comes standard with a 48.5mm (1.91") tall machined aluminum 400-034 Pro-Mount Base, a 5-pin cable Terminal Block,

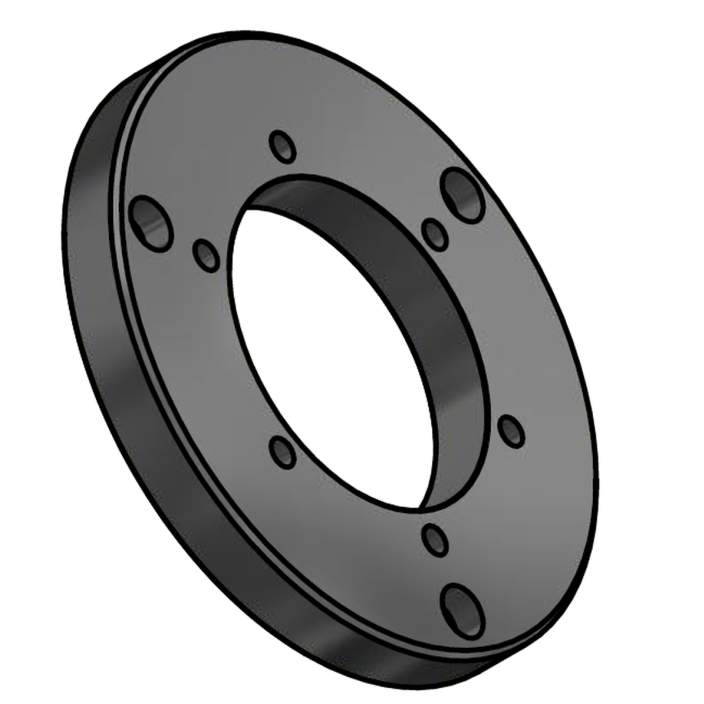

as well as an optional use 400-404 black HDPE plastic Mounting Plate.

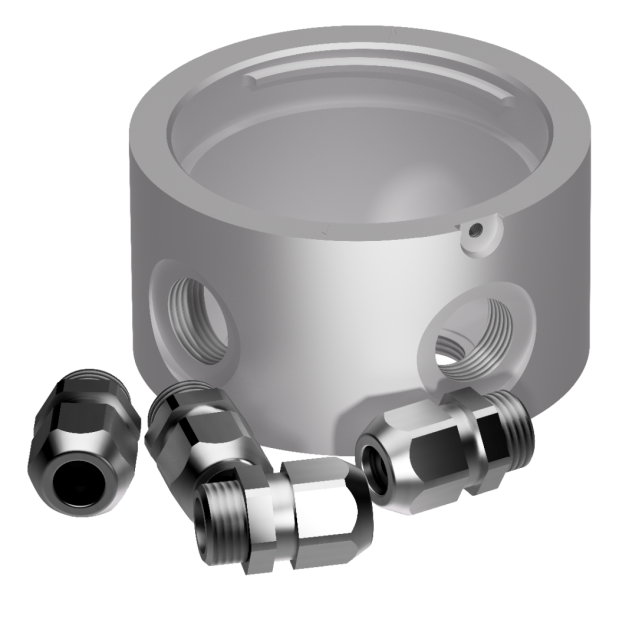

The 400-034 Base has (2) each, M20 (1/4"-1/2") watertight side and bottom cable ports and glands. Additionally, two each M16 (5/32"-3/8") glands and adapters are included.
Two (2) watertight plugs are also included for the unused gland ports.
Note – In the image shown, the division between the light and the base is not visible.
