Description

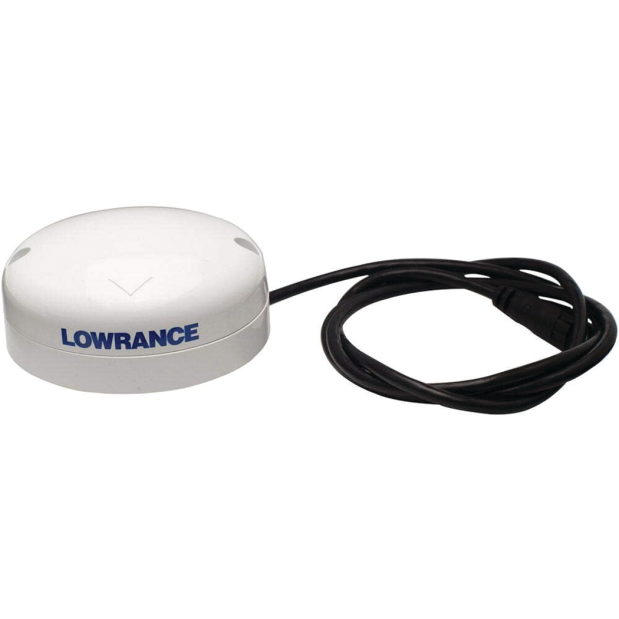

The Lowrance Point-1 serves as the perfect positioning and heading device for the Lowrance AutoPilot.
The Point-1 delivers highly precise and swift updates on boat position and speed.
Moreover, in contrast to other antennas that only provide position data, the Point-1 also offers heading information, ensuring accurate boat direction at any speed and facilitating radar/chart overlay.
• Precision position receiver and heading sensor in rugged, NMEA-2000 compatible external antenna module
• 10Hz GPS/GLONASS updates for smooth and accurate location
• Integrated Electronic Compass for exact vessel orientation and COG
• Compatible with HDS Gen2/Gen2 Touch and Elite-7 HDI/m
• Compact and integrated position + heading antenna
• NMEA 2000 compatible: micro-C connector with 4' pigtail cable, pole mount
• Positioning: supports GPS and GLONASS (Galileo-ready with future software update) and WAAS/EGNOS/MSAS differential correction
• Integrated electronic compass
• NMEA 2000 antenna module enables flexible boat location for ideal positioning and best performance, and independent source selection on any display
• Improved time to first fix, position accuracy and reliability and with combination of GPS and GLONASS satellite signals
• Integrated electronic compass provides chart stabilization, accurate course over ground at low speed, and radar overlay on chart
- • Not recommended for use with MARPA or autopilot input
• High speed update (10 times per second) provides smooth performance, and the most 'up-to-date' information
• Advanced controls will become available in HDS Gen2/Gen2 Touch
- • GPS and GLONASS : On / off
- • SBAS (WAAS/EGNOS/MSAS): On / off
- • GNSS signal update: 1, 5, 10 Hz
- • Filtering: Low, medium, high, auto and off
- • Compass calibration option through the MFD
- • Heading offset
• IPX-7 Waterproof rating
• GPS Receiver Channels: 32
• Heading Accuracy: 3 deg.
• Horizontal Accuracy: 5 m
• Rate of Turn: 3 deg.
• Receiver Type: L1, C/A code, 1.575 GHz Frequency/ L2 C/A code, 1.602 GHz Frequency
• 5 second Satellite Reacquisition
• 3.54"W x 1.50"H x 3.54"D
