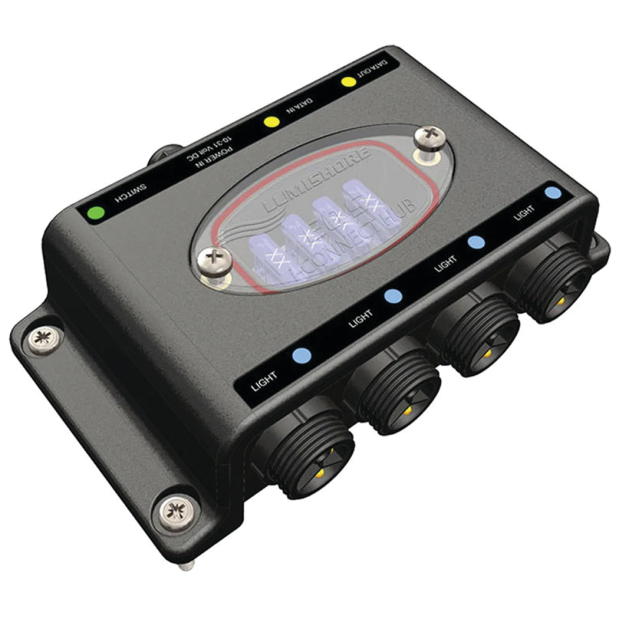

Lumishore's EOS i-connect hub facilitates an easier installation process for connecting several SMX lights. It allows for the connection of up to 4 lights per hub, with the capability of incorporating up to 4 hubs in a single installation, resulting in a maximum of 16 lights per vessel.
This junction box streamlines and consolidates all light and switch connections, thereby minimizing the number of cables that need to be installed.
• Full EOS color change
• Lumi-Link compatible
• Specially designed for ease of installation
• Plug-and-Play connections
• Built-in switching power relay
• Replaceable blade fuse for each light
• Status indication LED for each light
• Built-in noise filter
• Number of lights per hub: 4
• Max number of hubs per installation (Surface mount): 4 Hubs (16 Lights)
• Max number of hubs per installation (Thru Hull): 4 Hubs (16 Lights)
• Connections: Plug-and-Play connections
• Fuses: Replaceable blade fuses. Each light Individually fused
• Status indication LEDs: Yes - for each light
• Voltage range: 10.5 - 31V DC
• Max input current: 20 A
• Max output current: (i.e., Max current per light): 5A
• Cable Entry / Exit: IP68 Connections
• Switching method: Built-in relay
• Noise suppression: Built-in noise filter
• Reverse polarity protection: Yes
• Lumi-Link compatible: Yes
• Ingress progression: IP68
• Box construction: Robust weatherproof ABS
