Description

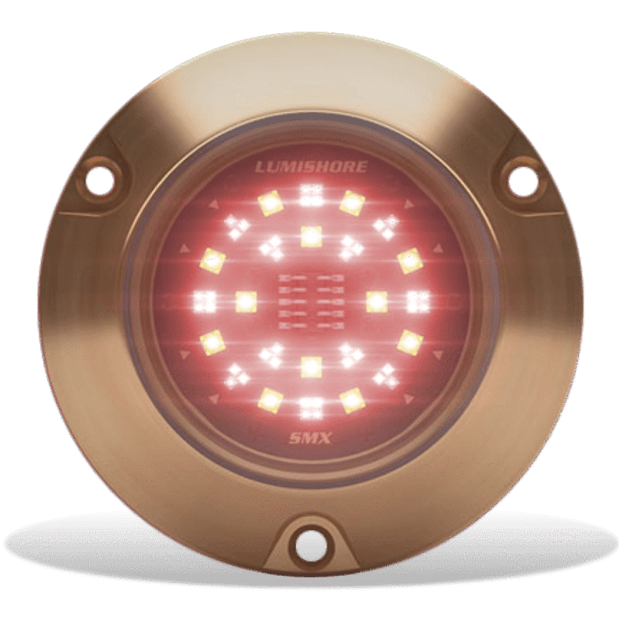

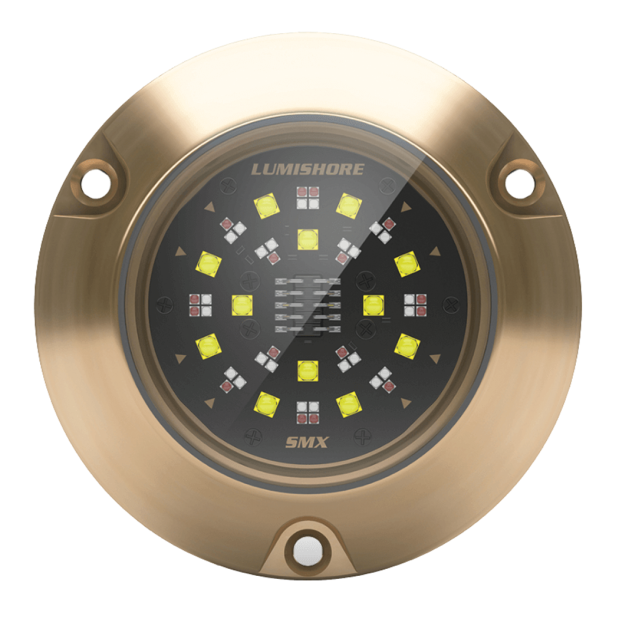

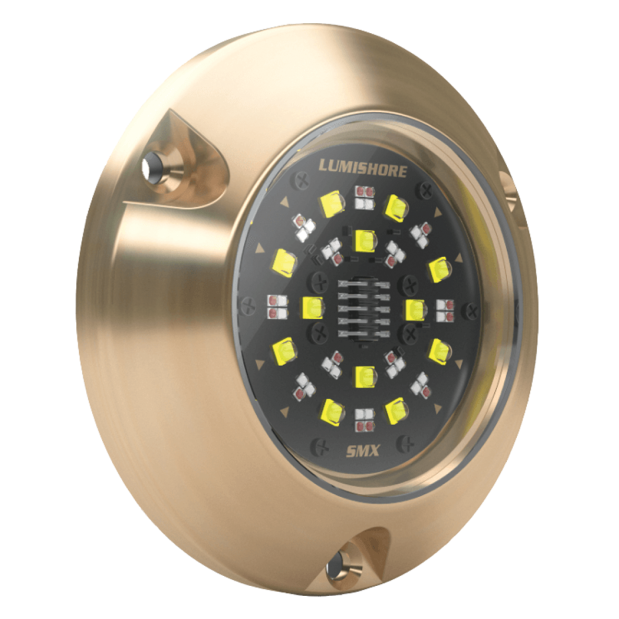

The SMX154 provides boat owners with unparalleled full-color management of their underwater lighting system, offering 7,000 verified fixture lumens and an extensive 90° beam angle.
You can control your SMX154 underwater lights directly from your compatible MFD and/or Lumishore Display.
Lumishore's distinctive light discovery and automatic installation feature streamlines the system setup and minimizes installation time.
It is appropriate for stepped hulls, transoms, and side mounting.
• Available led colors: Full eos color change (rgbw)
• 15,750 Lumens
• Verified fixture lumens (white): 7,000
• Number and type of leds: White–12×10w / green–12×3w / blue–12×3w / red–16×3w
• LED power - hicob array: Yes
• Typical led life: 50,000+ hours
• Beam angle (degrees): 90°
• Driver: Multi-channel internal driver
• Supply voltage: 12/24V DC
• Max current draw: 4.0a/2.0a
• Housing type: Marine grade bronze / glass lens
• User control options: From your mfd and/or optional lumishore display
• Lights synchronized: Y
• Color cycle: Y
• Color cycle w/speed adjust: Y
• Color sweep w/speed adjust: Y
• Customizable favorites: y
• Fixed strobe (2-speed): Y
• Wi-Fi control (app): Y
• Sound-to-light: Y
• Brightness adjust: Y
• Auto light discovery & setup: Y
