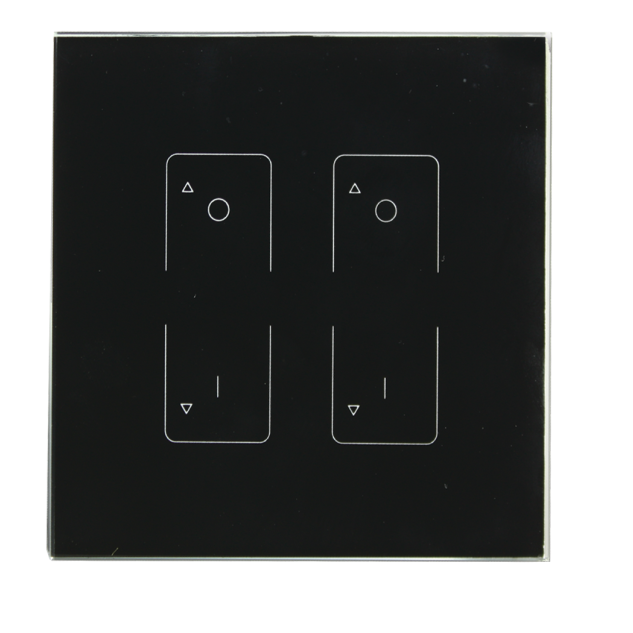

Lunasea Lighting's professional Radio Frequency Light Dimmers offer convenience and total control for your LED lights without wires! They feature an easy touch interface with smooth dimming functionality. This 2 Zone transmitter mounts on a wall and includes an attractive tempered glass faceplate with capacitive touch interface - just like your smartphone. The display is backlit for easy night use. Powered by 12 or 24V DC (no batteries required).
This 2 Zone transmitter is used with up to two LLB-45RR-91-00 Receivers (to which the light fixtures are hardwired) for wireless remote control of up to two different lighting zones: galley, berthing area, saloon, cockpit, etc. One receiver is required for each zone. See Accessory Products, below.
• Can be used with any dimmable light
• Control range of 65 ft
• Reliable touch dimming with 0 - 100% seamless dimming control
• Remembers state it was when receiver power is removed
• Easy pairing with receivers
• This 2-zone transmitter can be used with up to 2 receivers at a time
• Removable faceplate hides fasteners
• Dimensions: 3-3/8"W x 3-3/8"H x 1/2"D (requires rear cut-out for electronics)
• Output voltage/wattage: 12V/96W, 24V/192W, 36V/288W
• Operating Frequency 434 MHz/868 Mhz
• Receiver Voltage: 12-36V DC, 8A output
• FCC Approved
