Description

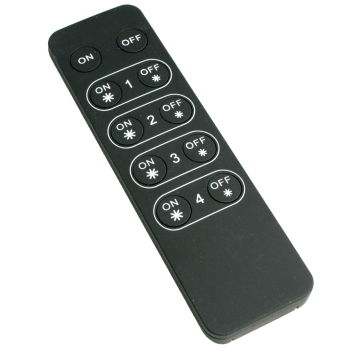

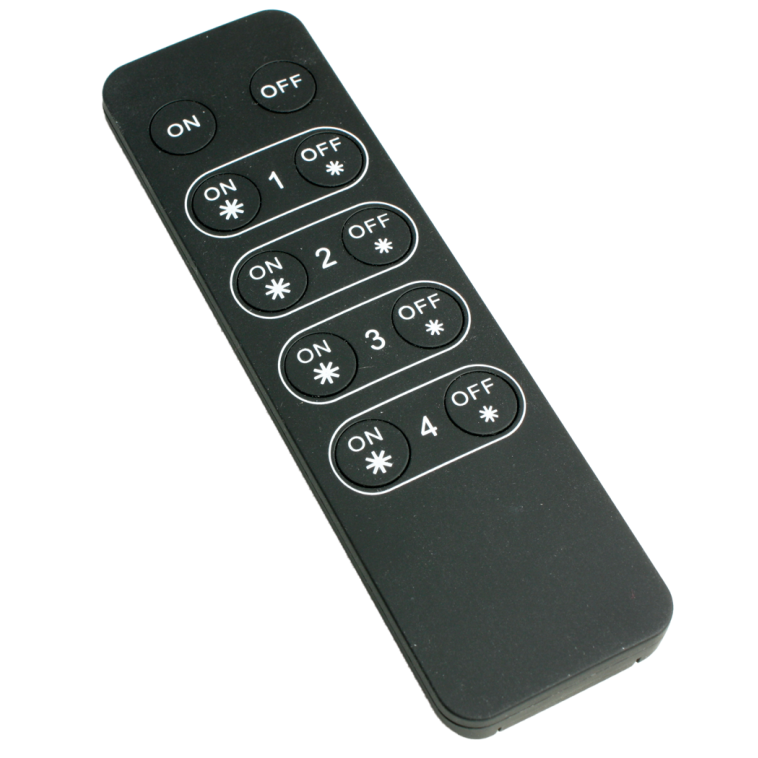

Lunasea Lighting's professional Radio Frequency Dimmers offer convenience and total control for your LED lights without wires! They feature an easy touch interface with smooth dimming functionality. This 4 Zone transmitter can mount on a wall or you can leave it on a table, whichever is most convenient.
This 4 Zone transmitter is used with up to four LLB-45RR-91-00 Receivers (to which the light fixtures are hardwired) for remote control of up to four different lighting zones: galley, berthing areas, saloon, cockpit, etc. One receiver is required for each zone. See Accessory Products, below.
• Can be used with any dimmable light
• Control range of 65 ft
• Reliable touch dimming with 0 - 100% seamless dimming control
• Remembers state it was when receiver power is removed
• Uses a long life CR-2025 battery with an average life of 3-5 years
• Easy pairing with receivers
• This 4-zone transmitter can be used with up to 4 receivers at a time
• Output voltage/wattage: 12V/96W, 24V/192W, 36V/288W
• Operating Frequency 434 MHz/868 Mhz
• Receiver Voltage: 12-36V DC, 8A output
• FCC Approved
