RF Dimmer - 4 Zone Wall Mount Transmitter

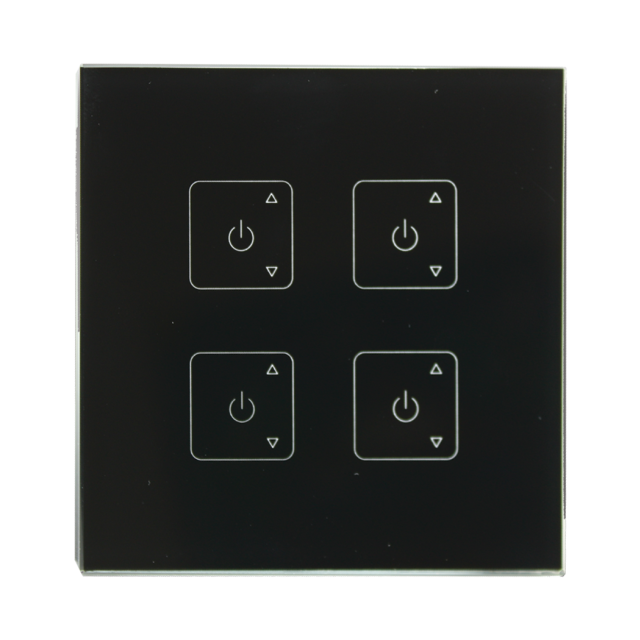

Lunasea Lighting's professional Radio Frequency Light Dimmers offer convenience and total control for your LED lights without wires! They feature an easy touch interface with smooth dimming functionality. This 4 Zone transmitter mounts on a wall and includes an attractive tempered glass faceplate with capacitive touch interface - just like your smartphone. The display is backlit for easy night use. Powered by 12 or 24V DC (no batteries required).

This 4 Zone transmitter is used with up to four LLB-45RR-91-00 Receivers (to which the light fixtures are hardwired) for wireless remote control of up to four different lighting zones: galley, berthing area, saloon, cockpit, etc. One receiver is required for each zone. See Accessory Products, below.

• Can be used with any dimmable light
• Control range of 65 ft
• Reliable touch dimming with 0 - 100% seamless dimming control
• Remembers state it was when receiver power is removed
• Easy pairing with receivers
• This 4-zone transmitter can be used with up to 4 receivers at a time
• Removable faceplate hides fasteners
• Dimensions: 3-3/8"W x 3-3/8"H x 1/2"D (requires rear cut-out for electronics)
• Output voltage/wattage: 12V/96W, 24V/192W, 36V/288W
• Operating Frequency 434 MHz/868 Mhz
• Receiver Voltage: 12-36V DC, 8A output
• FCC Approved
