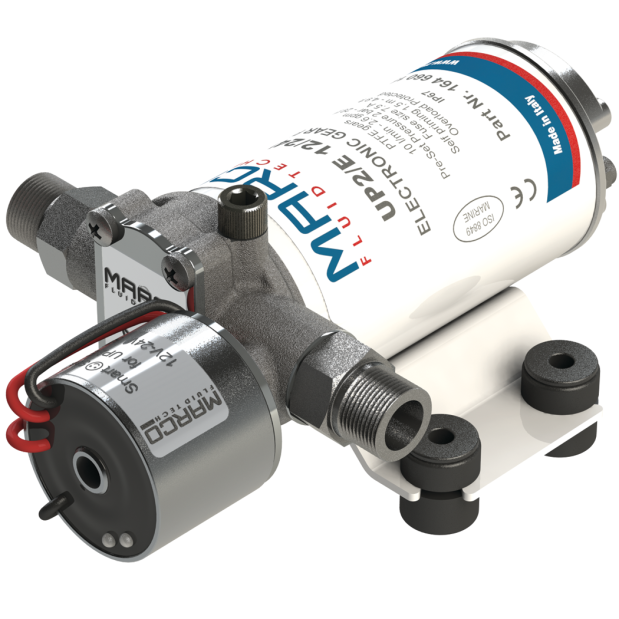

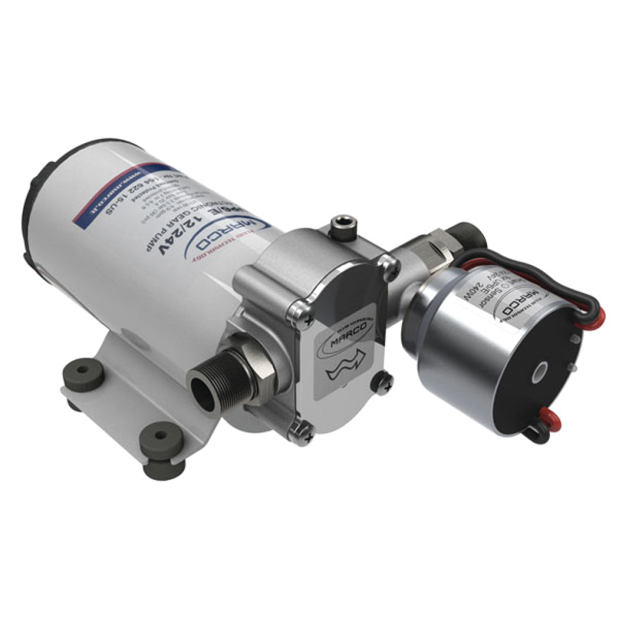

The UP2/E is a positive displacement gear pump with pressure sensor and integral automatic electronic control circuitry that delivers sustained water pressure and flow
to meet modest multi-fixture demands.
The variable speed motor runs only at the required rate to maintain water demand — reducing noise and saving battery power, as well as wear and tear.
On-demand constant pressure is maintained, so there is no cycling, and no need for an accumulator tank.
Typical applications are fresh water pressure systems and shower systems on vessels and RVs, although the pump is also suitable for pumping antifreeze and diesel fuel.
At only 6-1/2" long, this pump is extremely compact for its output. It is self-priming and features quiet PTFE helical gears.
• 2.6 gal/min open flow rate, 1.8 gal/min @ 20 psi; 12/24V multi-voltage
• Variable speed, micro-processor controlled pump automatically adjusts to changing demand to maintain constant water pressure and flow
• Pump ramps up speed to reach required flow rate
• No need for an accumulator tank
• For use with fresh or salt water
• Self-priming to 4.9 ft
• Integral check valve in outlet port prevents loss of prime
• Rubber mounting feet reduce vibration
• Ports ‐ 3/4" female BSPP female thread with (2) O-ring sealed adapters to 3/4" hose barbs
• Red/green/yellow LED function indicators, and flashing blue LED empty tank visual alert, located on pressure sensor
• Run dry protected – pump automatically shuts off when tank is empty
• Short circuit and overload protected
• PTFE helical gears, nickel-plated brass body, stainless steel shaft with lip seal
• 2-year warranty; CE marked
Note ‐ Unlike the larger pumps in the UP/E Pump range, the UP2/E does not have the option to connect to the optional PCS remote control panel.
