CLMD16 16-Channel DC Load Controller Module

The MPower® CLMD16 is a 16-Channel DC Load Controller Module designed for larger breakers and multiple circuits. It features four breakers rated for a maximum of 25 amps and twelve breakers rated for a maximum of 12 amps, with an overall current capacity of 125 Amps.

Furthermore, circuits can be configured in parallel. The CLMD16 is equipped with two H-Bridge circuits for reversing polarity, suitable for applications such as engine hatches, passerelles, and trim tabs. It includes eight inputs for hard-wired switches, which can be utilized to toggle breaker states or to receive data from other sources like bilge alarms or hatch positions.

Additionally, there are three inputs available for monitoring tank levels. The CLMD16 is capable of managing various DC load types, including lights, pumps, motors, and electronics. A significant advantage of the CLMD16 is its ability to report the current flowing through each of the 16 breakers, enabling the identification of loads that may be drawing excessive or insufficient electrical current. This functionality is essential for detecting overcurrent faults and under-current situations, such as burnt-out bulbs.

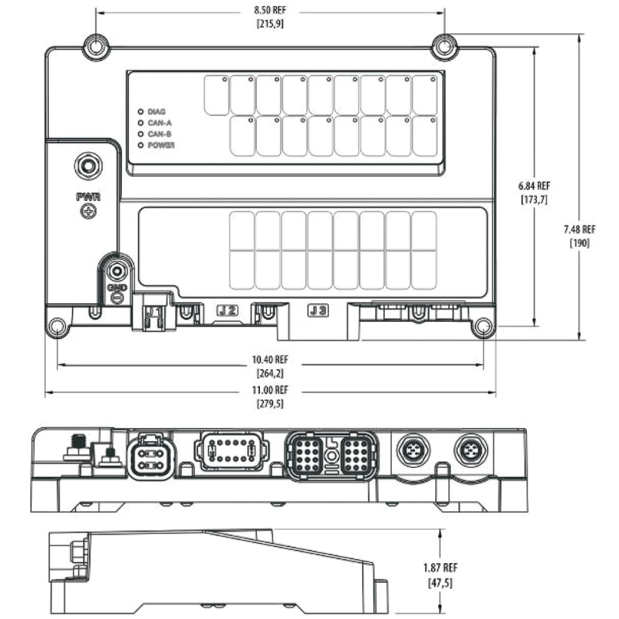

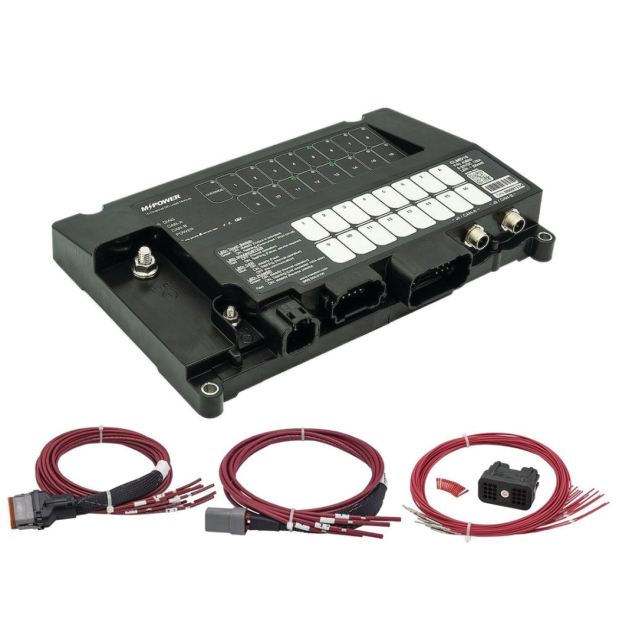

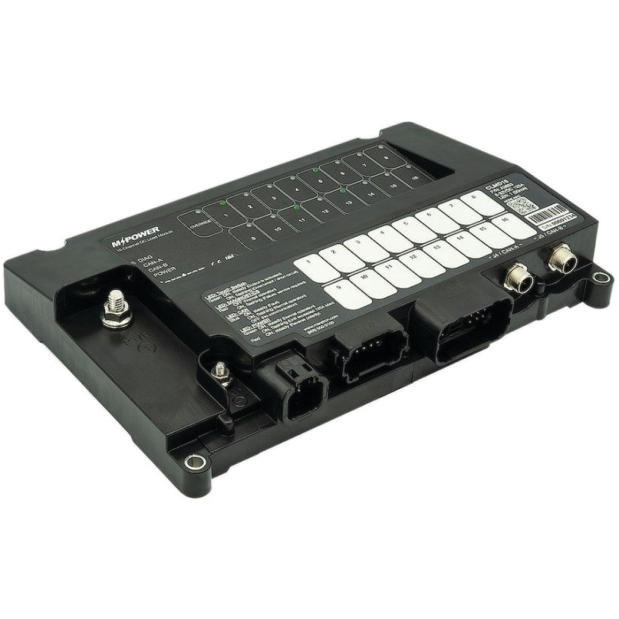

The CLMD16 -R comes with a 1m mating connector for both the J1 and J2 connectors and a 1m I/O harness kit for the J3 connector. (CLMD16 has no connectors included)

• NMEA 2000® Interface
• IP67 Rated
• Ignition Protected
• Opto-isolated from NMEA 2000®, eliminating potential ground loops
• Sixteen (16) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000® network
- 4 breakers capable of carrying up to 25 Amps
- 12 breakers capable of carrying up to 12 Amps
• Individual breaker electrical current monitoring
• Breakers can have Power-Up states defined (ON, OFF or previous states)
• Breakers can be Locked against inadvertent actuation.
• Capacitive touch switches for local control of all loads
• All inputs and outputs protected against short to Power and short to Ground
• Automatic ECB overcurrent shutdown
• Automatic ECB thermal shutdown (Overtemperature Protection)
• Eight (8) discrete digital input channels capable of sensing +ve or ground signals
• Two (2) resistive analog input channels
• One (1) 4-20mA current loop input channel

Applications

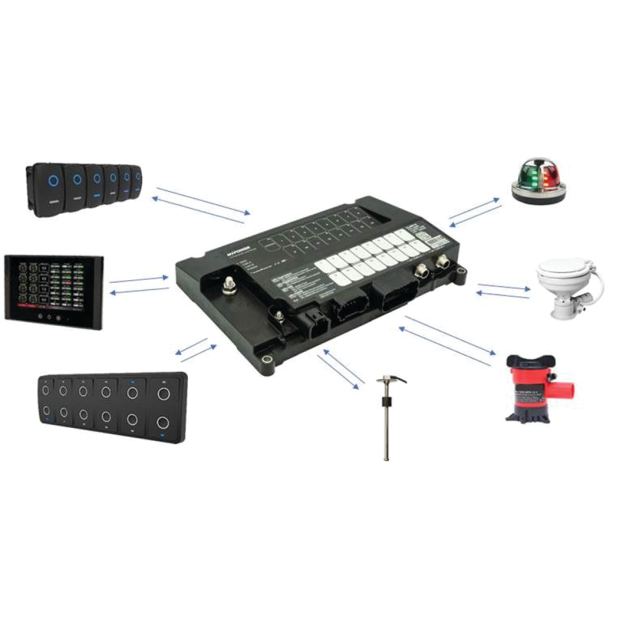

• Remote control of navigation lights
• Remote control of boarding lights
• Burnt out bulb alerts
• Control of area lights with dimming
