This 2-wire receptacle for 12, 24, or 36 volt systems accepts the 12VBPS2 2-Wire Trolling Motor Plug. See Related Products, below.
The ConnectPro™ system offers a revolutionary concept in trolling motor connections.
It features an exclusive locking plug and receptacle mechanism which provides a superior, waterproof electrical connection and current carrying capacity for trolling motors.
This helps eliminate loss of motor power and reduced battery life.
Perfect for today's higher voltage trolling motors.
This system is also useful for connecting a variety of 12 volt accessories, such as fishfinders and stereos to your boat's power system.
The ConnectPro system also features a locking plug and receptacle with a spring clamping connection that provides a secure electrical contact.
NOTE — All ConnectPro components - including these two-wire versions - are rated at maximum of 40 amps.
If your trolling motor or other accessory draws more current than 40A, or if you just want to plan ahead for the future possibility of upgrading to a more powerful trolling motor, you should consider Marinco's 70A Trolling Motor Connector System. See Related Products, below.

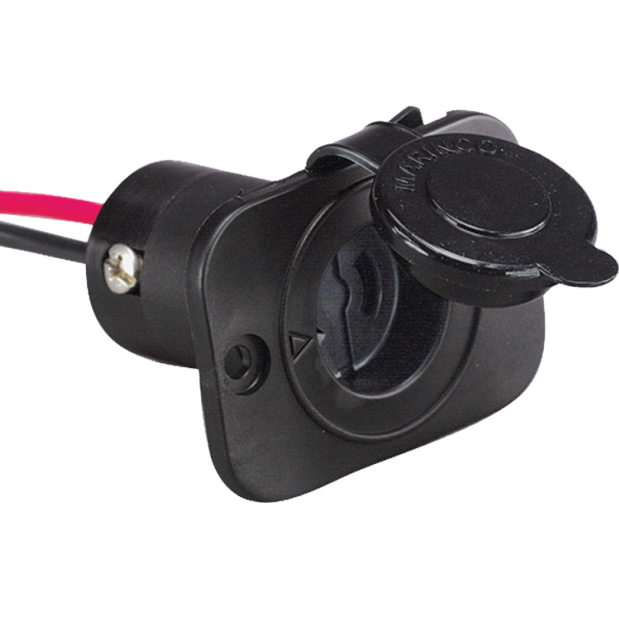

12VBRS2 2-Wire Receptacle features —
• Designed for 2-wire configuration in 12, 24, or 36 volt systems
• Engineered to deal with standing water, hull vibration and other common issues
• Waterproof sealing cap
• Corrosion resistant plated brass electrical components
• Internal drain holes keep water away from electrical components
• Perma-lockscrew terminals will not loosen under extreme hull vibration
• Standard 1-1/8" diameter mounting hole
• Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation
• Accepts 10 and 8 gauge wire
• Easily replaces other trolling motor receptacles
Click here for additional information and technical data about the 12VBRS2 ConnectPro 2-Wire Receptacle.
