Description

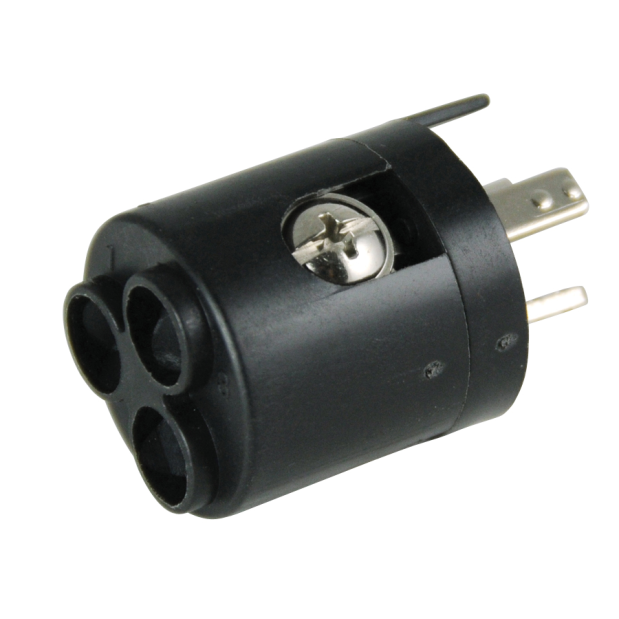

The rear recessed terminals of this 12VBRAD Adapter accept 6 AWG wire. The male prongs at the other end plug directly into the rear of the 12VBR ConnectPro Trolling Motor Receptacle - which normally only accepts 10 or 8 AWG wire.
This allows you to upgrade your receptacle to 6 AWG wire conductors to avoid a significant voltage drop in installations where long wire runs are required. See Relater Products, below.
The ConnectPro™ system offers a revolutionary concept in trolling motor connections.
It features an exclusive locking plug and receptacle mechanism which provides a superior, waterproof electrical connection and current carrying capacity for trolling motors.
This helps eliminate loss of motor power and reduced battery life.
Perfect for today's higher voltage trolling motors.
This system is also useful for connecting a variety of 12 volt accessories, such as fishfinders and stereos to your boat's power system.
The ConnectPro system also features a locking plug and receptacle with a spring clamping connection that provides a secure electrical contact.
NOTE — All ConnectPro components are rated at maximum of 40 amps.
If your trolling motor or other accessory draws more current than 40A, or if you just want to plan ahead for the future possibility of upgrading to a more powerful trolling motor, you should consider Marinco's 70A Trolling Motor Connector System. See Related Products, below.
12VBRAD Adapter features —

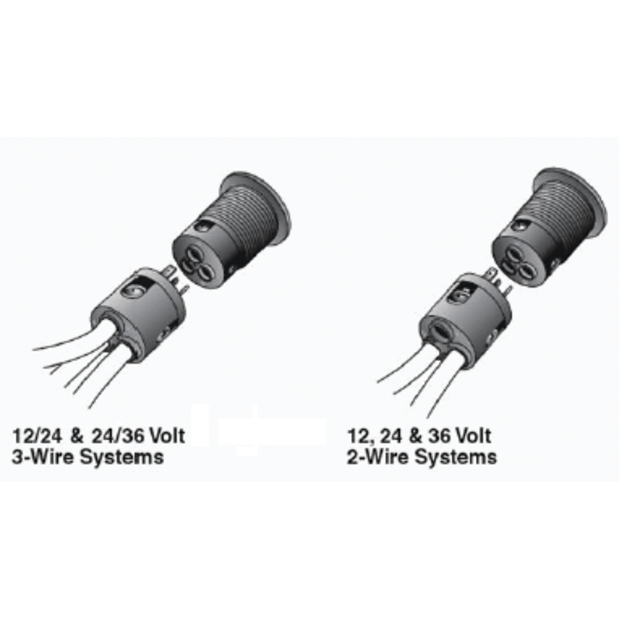

• Suitable for 12, 24, 12/24, 24/36, or 36 volt systems
• Allows using higher capacity 6 gauge wire conductors to your ConnectPro Receptacle
• Corrosion resistant, plated brass electrical components
• Easy to install
Additional information and technical data about the 12VBRAD Adapter.
