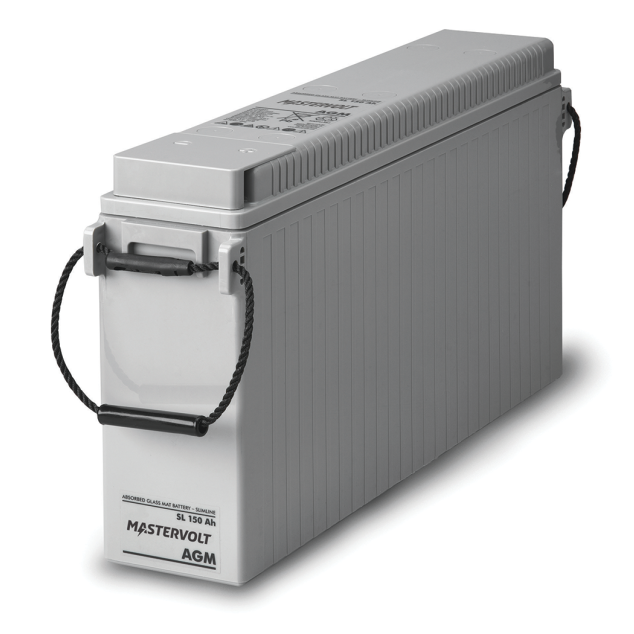

"Slimline" AGM Batteries offer the ability to pack a lot of battery cpacity into a very small footprint compared to traditional battery styles and cases - such as Group 31, 8D, etc. The tall, thin Slimline case design can save up to 15% in volume, and provide a 15% reduction in weight for the same capacity wet cell battery.
As an example, two Slimline 150 amp hour batteries have an installed footprint that is only 1/2" wider and 2" longer than a single traditional 180 amp hour 8D battery.
Mastervolt AGM batteries combine both "starter" and "service" functions into a single 12V semi-deep cycle AGM battery. They are ideal general purpose batteries.
As a starter battery they deliver short bursts of high current to power engine starting, side thrusters, winches, etc.
As a service battery they are designed to easily withstand cyclical use for onboard lighting, instrumentation, entertainment, etc.
Of course, these batteries include all the advantages of Absorbed Glass Mat battery technology: maintenance-free, no fumes, can't spill or leak, very low self-discharge rate, not affected by freezing, etc.
NOTE: Slimline batteries have M6 Hex Bolt studs for connecting to your battery cables. Your cables should ideally be fitted with 1/4" ring terminals, which are available for cables up to 2/0 AWG from Ancor and FTZ. (Slimline batteries do not come with post terminals.)
• Both "starter" and "house" functions
• Extremely long life span
• Entirely maintenance-free and safe
• Can be installed in any position
• First-rate condition even after winter storage
• Suitable for 3-step Plus charging method
• Terminal connections protected by slide-on plastic cover
• Voltage is 12V DC
• Max. overall dimensions, including terminals and handles: 22"L x 4.3"W x 11"H
• Weight is 89 lb
• Two-year warranty
Heavy on the technical side...
In AGM batteries, the electrolyte (mixture of water and sulphuric acid) is largely absorbed in layers of fiberglass.
This type of battery is entirely maintenance-free and there is no gas formation with normal use.
Not requiring any ventilation, these batteries can be installed anywhere.
Their construction gives a very fast discharge at very high currents so AGM batteries are ideal for systems that require high currents (for instance when starting an engine).
The battery poles can be unscrewed and this type of battery can be combined with every standard battery terminal.
AGM batteries make ideal universal batteries.
They have excellent starter function, and are a perfect upgrade for older wet lead acid batteries. During starting, a 90 amp hour AGM battery provides the same initial power surge as a 180 amp hour wet lead-acid battery.
Glass-fiber technology ensures low internal resistance.
Use of thicker plates allows deep discharging without damaging the battery during cyclical use.
