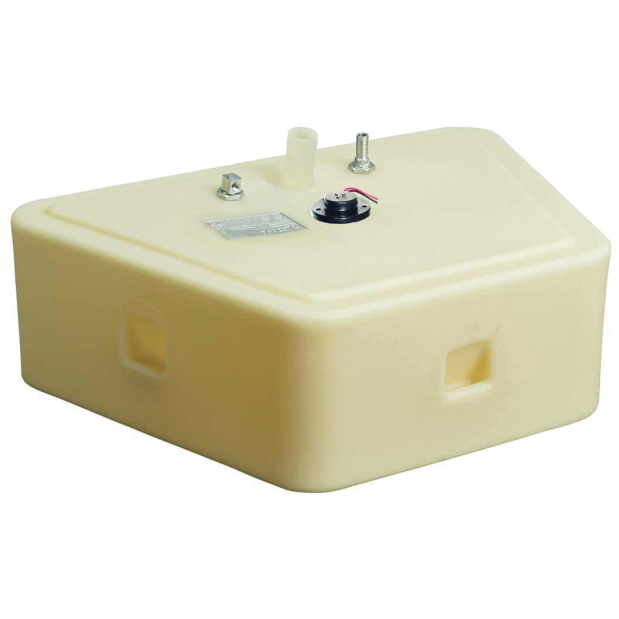

19 Gallon Below Deck Bow Fuel Tank with Top Withdrawal

Unlike aluminum tanks, this comprehensive line of cross-linked polyethylene models is a distinctive Moeller innovation featuring corrosion/pit resistance and exclusive Moeller Tite™ molded-in machined aluminum fittings.
These tanks vary in shape and fitting location; please call to verify that the tank you selected will suit your needs.

Only available with factory installed gasoline senders. For use with diesel engines, a separate diesel sending unit (035724-10 see Related Products below) must be purchased and installed; the gasoline unit supplied with the tank is non-returnable.
Sending units are found in our Instruments & Navigation Chapter at the end of the "Gauges – Engine & Tank" section.
• Rotationally molded, allowing for complex shape designs
• 32"W (Rear), 18"W (Front) x 20.75"L x 12.06"H
• Fittings hold highest OD and I. tolerances in the industry, allowing for the highest level of input flow available during tank refueling

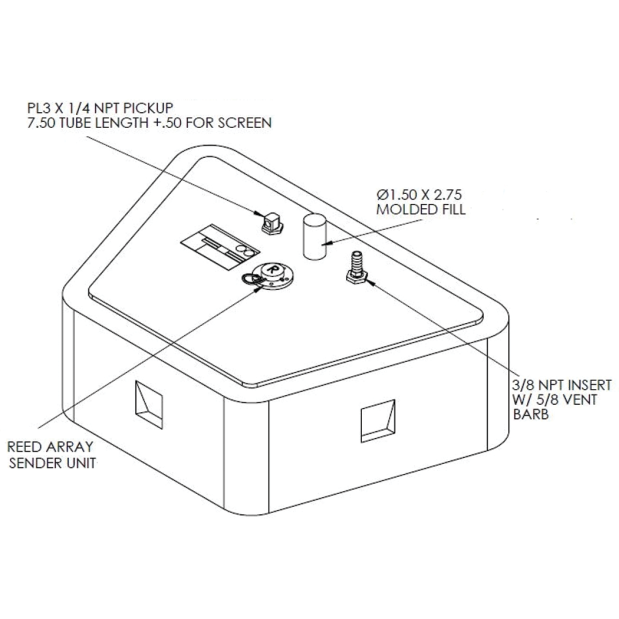

• Fuel Pick-Up – 12" PL3 – 1/4 NPT (33500-12 see Related Products below)

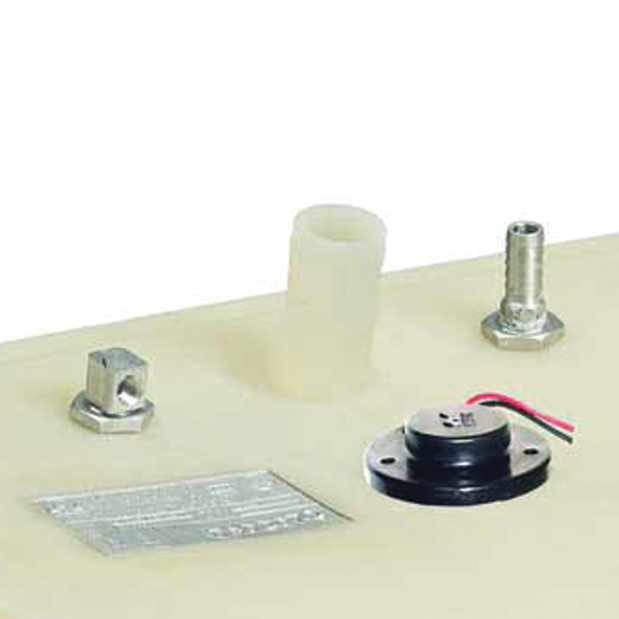

• Machined aluminum 3/8" withdraw fitting has 360° rotational capability for hook-up convenience
• Convenient hold down grooves molded directly into tank shell
• Conforms to all ABYC, NMMA and U.S. Coast Guard regulations
• Available with CE certification
