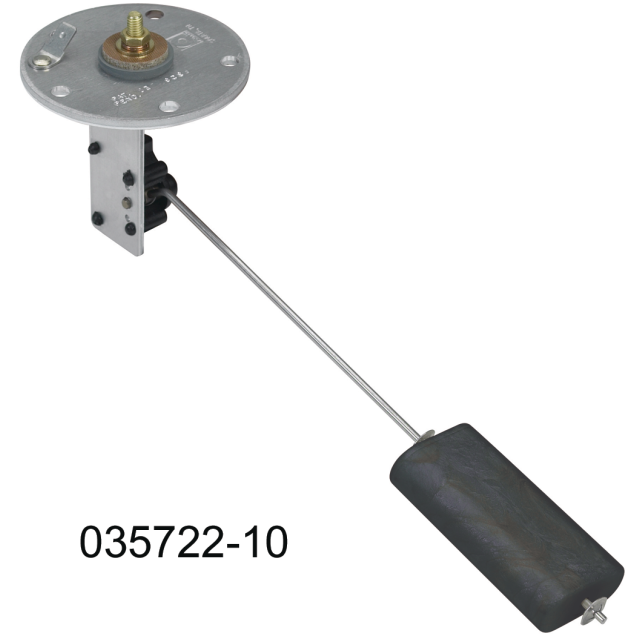

Universal Electric Sending Unit 6" - 12" Tank Depth
Swingarm Electric Sending Units gather fuel level information the same way as the mechanical sending units.
It does, however, connect to a dash mounted gauge without a conversion capsule.
They are suitable for various tank depths within their stated range — just measure the tank depth and make the swingarm the correct length.
All electrical senders and dash-mounted gauges are calibrated to the industry standard 33 to 240 Ohms, and are compatible with competitive units
Internal components will not rust or corrode.
Float rotates easily in 90 degree increments for tank wall and baffle clearance.
Industry standard SAE 5-hole mounting bolt pattern (pattern is asymmetric - there is only one way to properly align the unit)
Note - tank gasket is sold separately; see Related Products, below.
