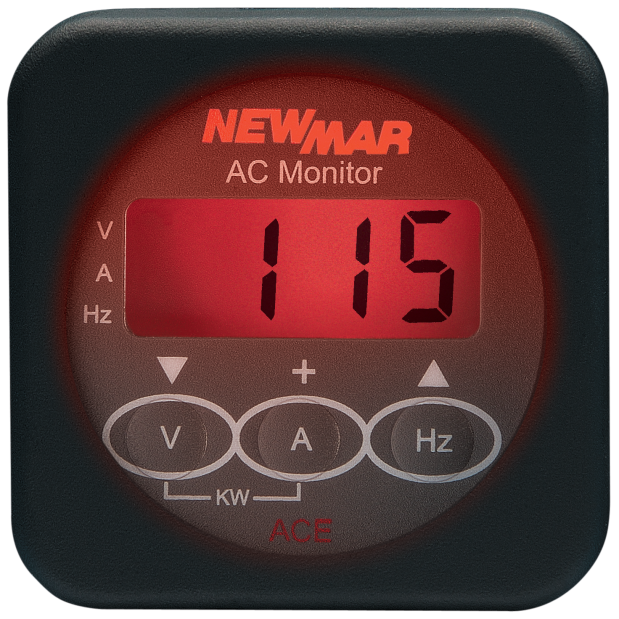

AC Energy Monitor

For 115/230 volt systems. Reads: 90-300 VAC, 0-150 amps, frequency from 40-70 Hz and power from 0-45 kW. Features alarm circuits for high/low voltage and high/low frequency.
Can be programmed to provide automatic generator shutdown (via contacts) in the event that voltage or frequency exceed predetermined range.
Current and voltage transformers are included. 12 or 24 volt source required to power meter.

All read-outs and programming of these multiple functions are easily controlled via touch-pads on the instrument face.

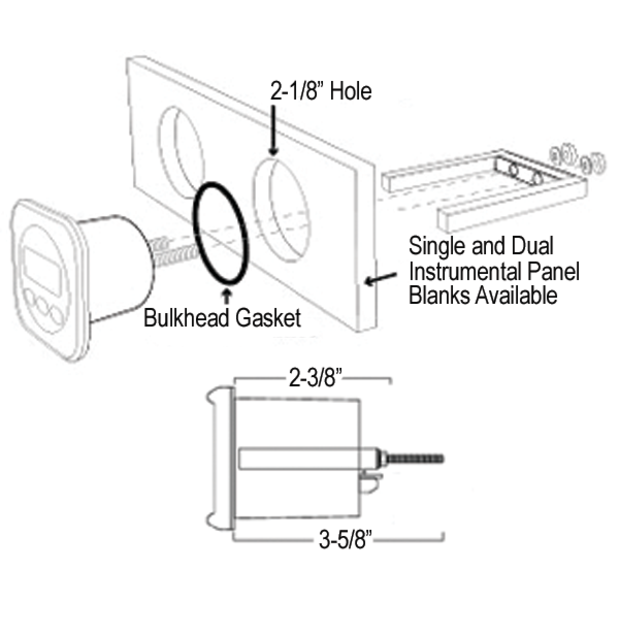

LCD displays are easily read in bright sunlight and feature five level adjustable red back-lighting for conservation of night vision. The instrument faces are only 2.5" square, providing maximum information in a minimum of space. Typical accuracy is +/- 1%.
