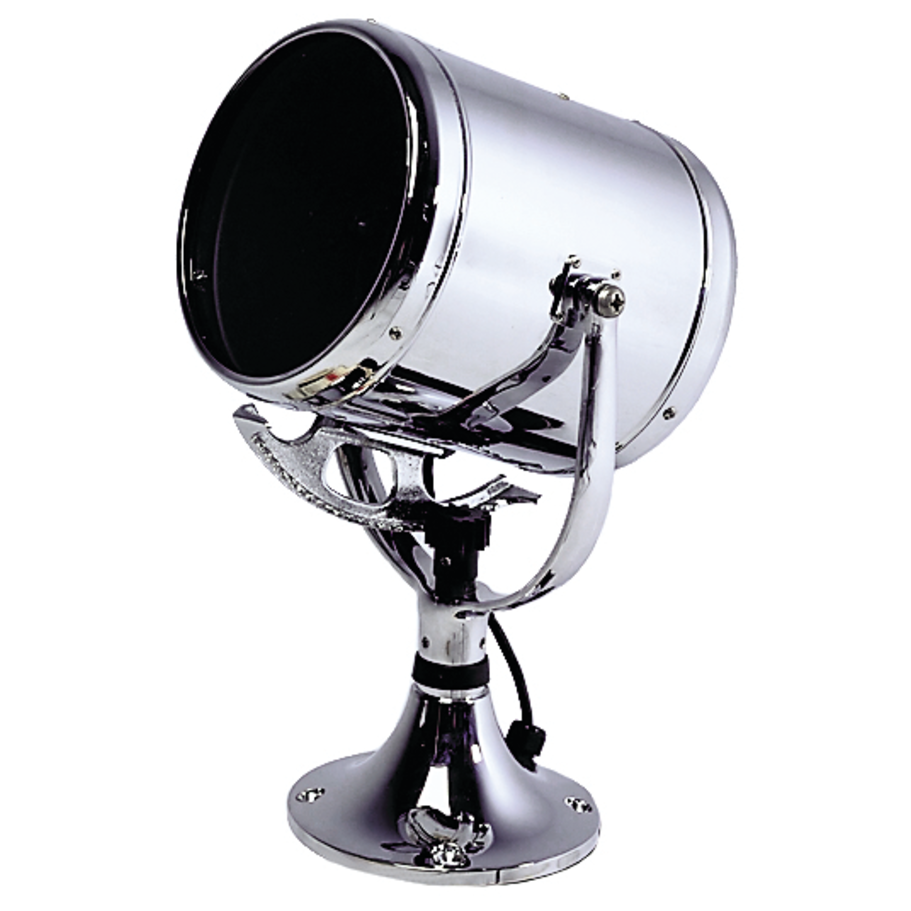

These Fig. 0313 lights are aimed using your choice of a Fig. 0852 Wheel Control or a Fig. 0969 Lever/Gear Control from the pilot house, below the light.
The controls are sold separately from the light - be sure to purchase one if you want to use the light.
These Wheel or Lever/Gear Controlled lights are aimed from the pilot house below the light. In using the Wheel Control, turning the upper wheel aims the light horizontally, and turning the lower wheel aims the light vertically. With the Lever/Gear Control, turning the lever from side to side aims the light horizontally, while twisting the lever handle aims the light vertically.
These Series 0305 lights can only use Lever Controls designed for "Standard Pedestal" lights. Select the length of lever to suit your installation.
• Convenient sealed beam bulb incorporates bulb and reflector in a single unit
• Bronze base, brass body - with chrome or white powder coat finish
• Available in 12V, 24V or 32V models
• Light output and beam range vary by voltage, see Spec Table for details
• CE marked
