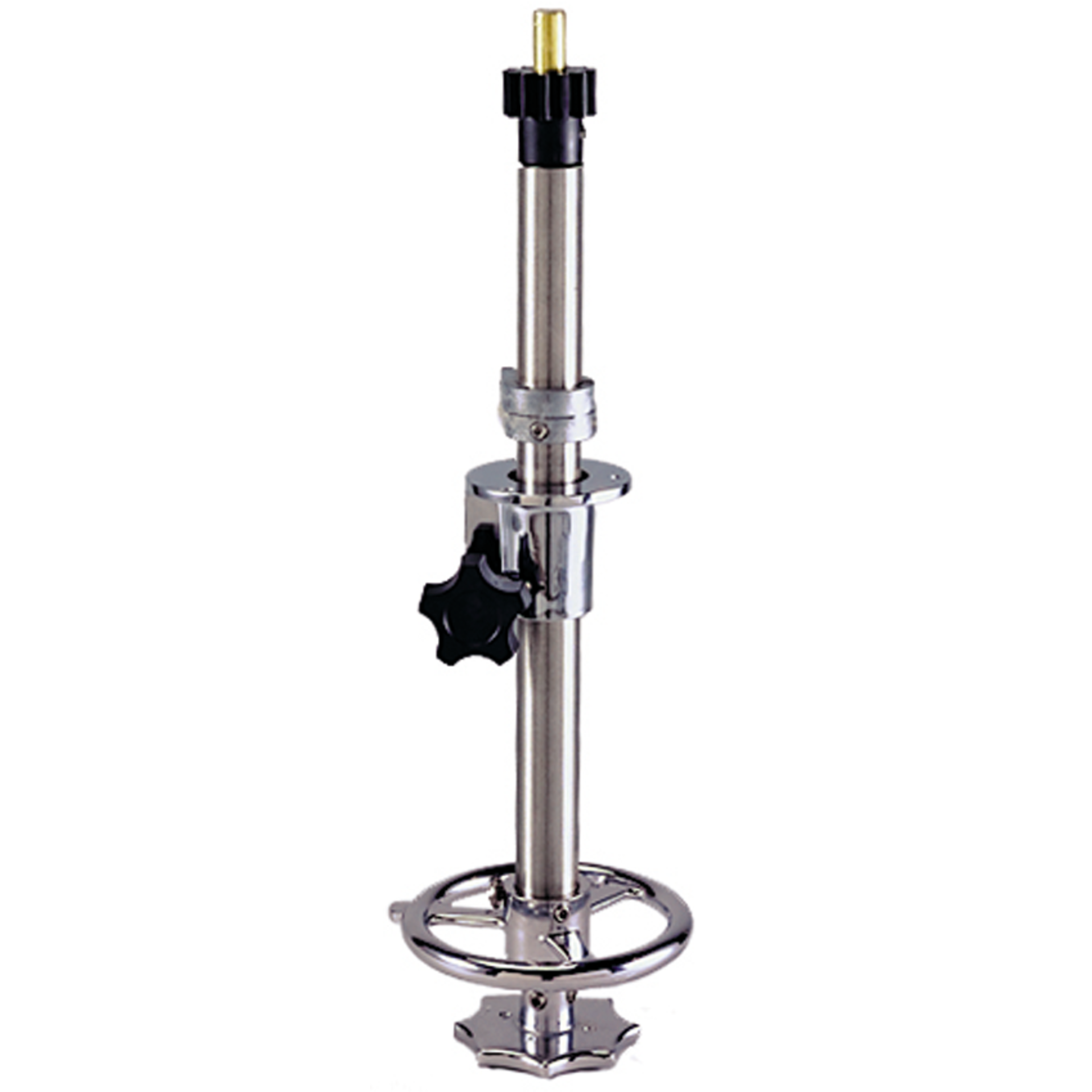

Fig. 852 Searchlight Wheel Control Assemblies
Fig. 852 Searchlight Wheel Control Assemblies, Standard Pedestal, 7-1⁄2"
Standard Pedestal|7-1/2"
Description
When using a Wheel Control, you turn the upper wheel for horizontal position, and turn the lower wheel for vertical position.
The pedestal height on your 10", 12", or 14" Series 885 searchlight (with Standard, Medium or High Pedestal) will determine which lever control series you can use.
The 8" Series 305 and 313 searchlights only accept "Standard Pedestal" controls.
Control assemblies of different lengths may be interchanged on searchlights of the same pedestal height. Choose the length which best suits your application.
• Length in table is measured from the bottom of the searchlight base (the upper surface of your cabin roof)
• Stainless steel tubes with chrome-plated fittings
• Distance between wheels is 2"
• Maximum ceiling thickness for all the 7-1/2" wheel controls is 3"
Specifications
Product Options
| Selected | SKU # | MFG # | Availability | Pedestal Type | Length | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 09200 | MFG #: 0852000 | Special Order Only | Standard Pedestal | 7-1/2" | $439.64 Each | |||
| SKU #: 15027 | MFG #: 08520A0 | Special Order Only | Standard Pedestal | 14-1/2" | $489.35 Each | |||
| SKU #: 153649 | MFG #: 08520B0 | Special Order Only | Standard Pedestal | 21-1/2" | $548.62 Each | |||
| SKU #: 13859 | MFG #: 08520C0 | Special Order Only | Standard Pedestal | 28-1/2" | $620.66 Each | |||
| SKU #: 177613 | MFG #: 0852H00 | Special Order Only | High Pedestal | 7-1/2" | $597.46 Each |
