Marine Carbon Canisters - EPA Compliant

Heat Shield Models Available
By: Perko

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Carbon canisters have been used in automotive applications for decades.
They filter hydrocarbons out of fumes vented during day/night thermal expansion and/or refueling of tanks.
Canisters are then purged when fresh air is drawn into the tank during thermal contraction or while the engine is running.
By regulation, canisters must be protected from water and raw fuel, as both reduce their efficiency.

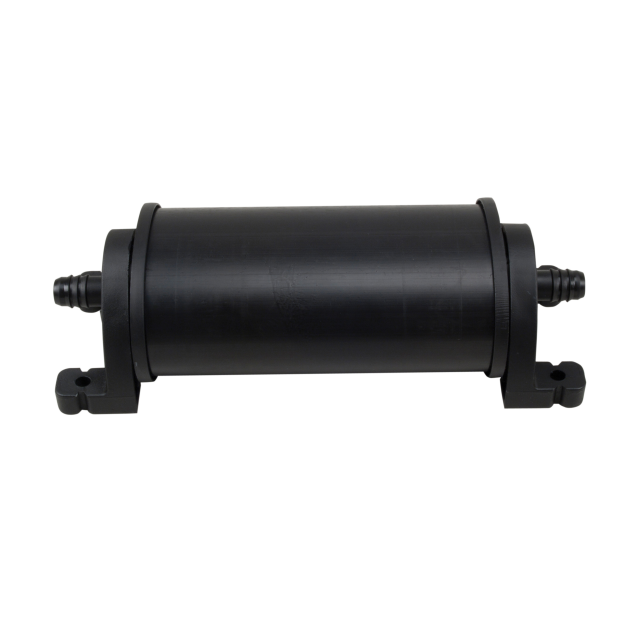

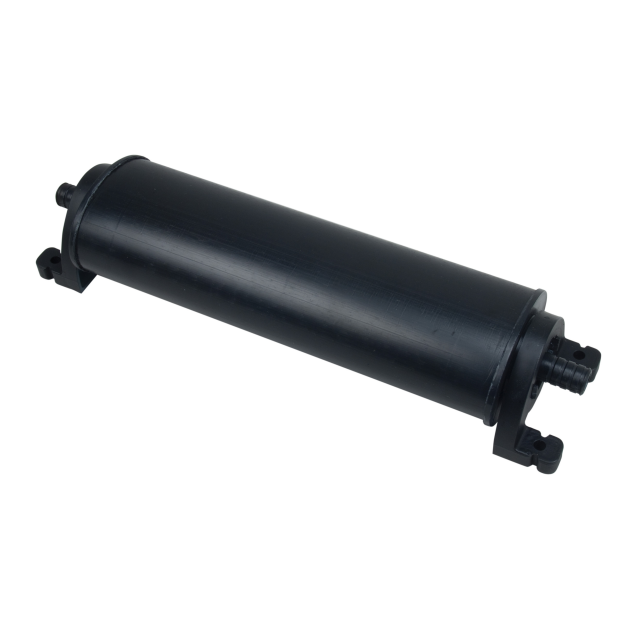

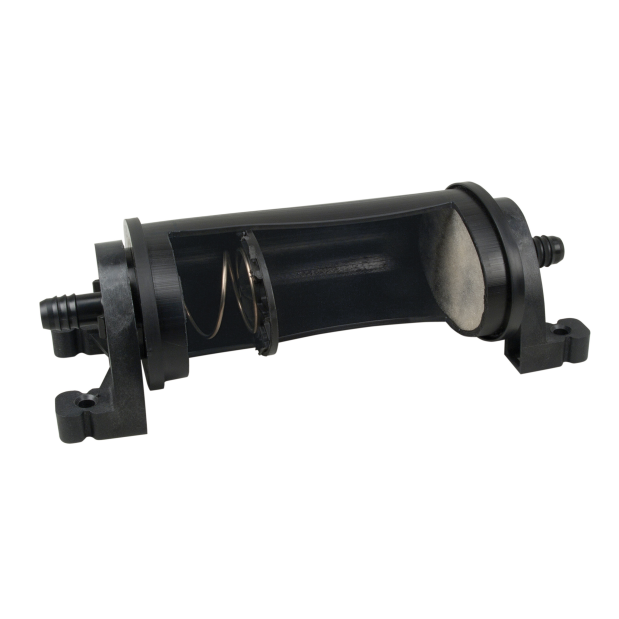

• Polymer body
• End caps welded to extruded body

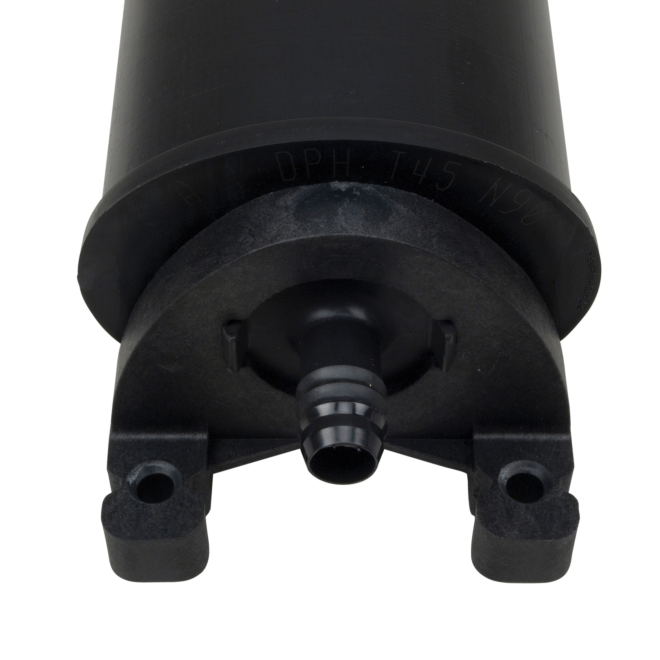

• Mounting bracket rotates on end cap to allow movement of mounting bracket without stressing the canister body
• Optional heat shield available for mounting in engine compartments

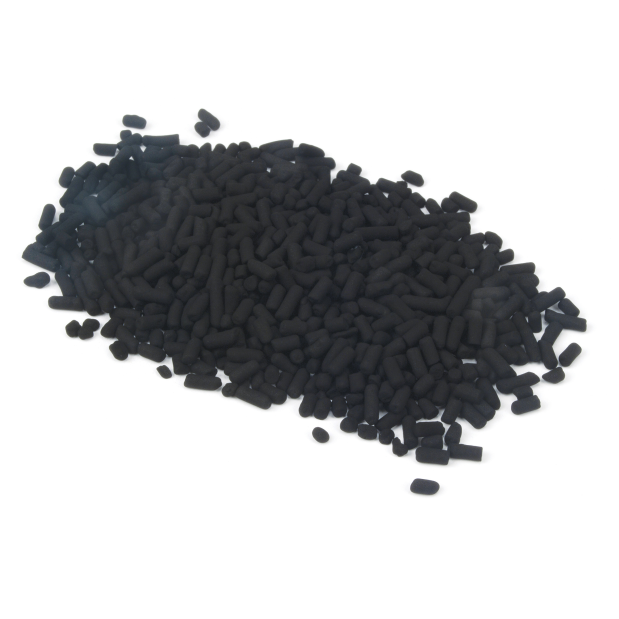

• Marine grade of activated carbon - for lower moisture adsorption than automotive carbon

Canister sizing is dictated by both boat and tank size:

For Boats Under 26 feet Long ("Trailerable")
Tank = 000-062 gal >>> Canister = 0.5 liter
Tank = 062-093 gal >>> Canister = 0.75 liter
Tank = 093-124 gal >>> Canister = 1.0 liter
Tank = 124-186 gal >>> Canister = 1.5 liter
Tank = 186-248 gal >>> Canister = 2.0 liter
Tank = 248-372 gal >>> Canister = 3.0 liter
Tank = 372-496 gal >>> Canister = 4.0 liter

For Boats Over 26 feet Long ("Non-Trailerable")
Tank = 000-124 gal >>> Canister = 0.5 liter
Tank = 124-186 gal >>> Canister = 0.75 liter
Tank = 186-248 gal >>> Canister = 1.0 liter
Tank = 248-372 gal >>> Canister = 1.5 liter
Tank = 372-496 gal >>> Canister = 2.0 liter
Tank = 496-744 gal >>> Canister = 3.0 liter
Tank = 744-992 gal >>> Canister = 4.0 liter
The non-trailerable allowable tank volumes are larger because, floating in water, the tank is more insulated - and day/night thermal expansion/contraction is not as great.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDPerko#AvailabilityDescriptionUOMYour PriceQTY
377403PKO 0485005033 0485005033Loading...0.5 Liter Carbon Canister - 5/16" x 5/16" Inlet/OutletLoading...
377405PKO 0486005035 0486005035Loading...0.5 Liter Carbon Canister - 5/16" x 5/8" Inlet/OutletLoading...
377407PKO 0486005055 0486005055Loading...0.5 Liter Carbon Canister - 5/8" x 5/8" Inlet/OutletLoading...
430593PKO 0486007055 0486007055Loading...0.75 Liter Carbon Canister - 5/8" x 5/8" Inlet/OutletLoading...
377409PKO 0485010033 0485010033Loading...1 Liter Carbon Canister - 5/16" x 5/16" Inlet/OutletLoading...
377411PKO 0486010035 0486010035Loading...1 Liter Carbon Canister - 5/16" x 5/8" Inlet/OutletLoading...
377413PKO 0486010055 0486010055Loading...1 Liter Carbon Canister - 5/8" x 5/8" Inlet/OutletLoading...
377415PKO 0485015033 0485015033Loading...1.5 Liter Carbon Canister - 5/16" x 5/16" Inlet/OutletLoading...
377417PKO 0485015035 0485015035Loading...1.5 Liter Carbon Canister - 5/16" x 5/8" Inlet/OutletLoading...
377419PKO 0485015055 0485015055Loading...1.5 Liter Carbon Canister - 5/8" x 5/8" Inlet/OutletLoading...
377421PKO 0485020033 0485020033Loading...2 Liter Carbon Canister - 5/16" x 5/16" Inlet/OutletLoading...
377423PKO 0486020035 0486020035Loading...2 Liter Carbon Canister - 5/16" x 5/8" Inlet/OutletLoading...
377425PKO 0486020055 0486020055Loading...2 Liter Carbon Canister - 5/8" x 5/8" Inlet/OutletLoading...
377427PKO 0485030033 0485030033Loading...3 Liter Carbon Canister - 5/16" x 5/16" Inlet/OutletLoading...
377429PKO 0485030035 0485030035Loading...3 Liter Carbon Canister - 5/16" x 5/8" Inlet/OutletLoading...
377433PKO 0485040033 0485040033Loading...4 Liter Carbon Canister - 5/16" x 5/16" Inlet/OutletLoading...
377435PKO 0485040035 0485040035Loading...4 Liter Carbon Canister - 5/16" x 5/8" Inlet/OutletLoading...
377437PKO 0485040055 0485040055Loading...4 Liter Carbon Canister - 5/8" x 5/8" Inlet/OutletLoading...
377439PKO 0485H05033 0485H05033Loading...0.5 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377441PKO 0485H05035 0485H05035Loading...0.5 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377443PKO 0485H05055 0485H05055Loading...0.5 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
377445PKO 0485H10033 0485H10033Loading...1 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377447PKO 0485H10035 0485H10035Loading...1 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377449PKO 0485H10055 0485H10055Loading...1 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
377451PKO 0485H15033 0485H15033Loading...1.5 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377453PKO 0485H15035 0485H15035Loading...1.5 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377455PKO 0486H15055 0486H15055Loading...2 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
377457PKO 0485H20033 0485H20033Loading...2 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377459PKO 0485H20035 0485H20035Loading...2 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377461PKO 0485H20055 0485H20055Loading...2 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
377463PKO 0485H30033 0485H30033Loading...3 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377465PKO 0485H30035 0485H30035Loading...3 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377467PKO 0485H30055 0485H30055Loading...3 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
377469PKO 0485H40033 0485H40033Loading...4 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377471PKO 0485H40035 0485H40035Loading...4 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377473PKO 0485H40055 0485H40055Loading...4 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
