The Perko Single Battery Disconnect Switch permits the battery to be shut off from the electrical system when the vessel is not in use. They can also serve as an emergency main disconnect switch in the event of an electrical problem.
Three mounting options:

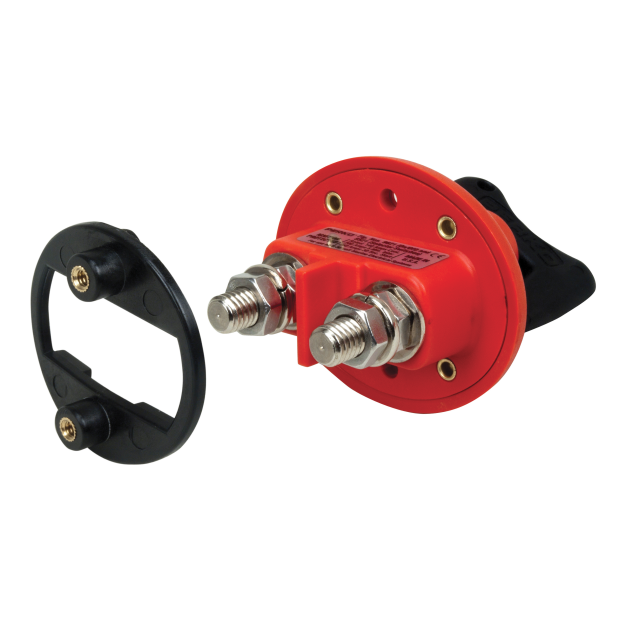

Panel mount with backing plate - Face plate flush mounts on surface.

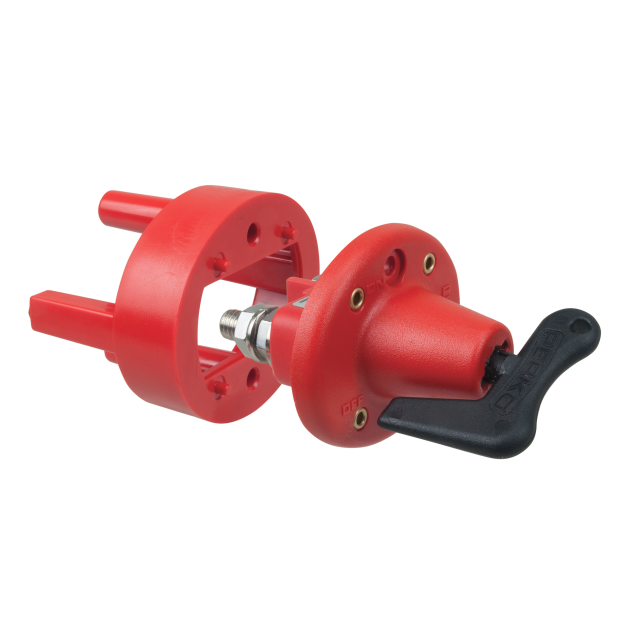

Bulkhead mount with mounting legs - Allows for direct cable access.
Cup mount - Attractive, durable easy open/close cover that hides and protects switch face.
• Red polycarbonate polymer body
• Black polymer actuator key
• Nickel plated terminals
Technical Information:
• Rating: 140 Amps Continuous, 200 Amps 5 Min. Intermittent, 250 Amps 30 Second Start
• Panel Mount Installation Hole Size: 2-1/8"
• Cup Mount Installation Hole Size: 3"
• For use with alternators and generators 6-50 V.D.C. Marine Electrical Systems
• Ignition Protected
• Face Dimensions: 3" x 2-1/2"
