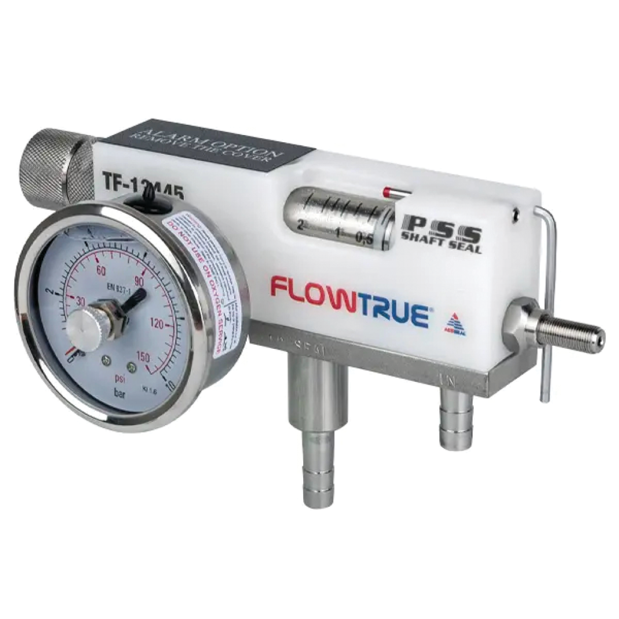

FlowTrue Adjustable Flow Meter

The FLOWTRUE® is a fully patented, durable, and adjustable flow meter that regulates the volume of water supplied to the mechanical seal for cooling purposes.

The innovative and sophisticated design of the FLOWTRUE® ensures that it is the least prone to clogging among all available flow meters. This is attributed to the large internal clearances incorporated in its design. There are three models available, allowing the product to be utilized in packing applications, single seals, and double mechanical seals. Furthermore, additional instrumentation, such as flow alarms, can be integrated to enhance control over the sealing environment.
• Adjustable flow meter - Controls the amount of water flowing to the mechanical seal for cooling purposes
• Innovative flow tube cleaning mechanism - The device can be cleaned without interupting flow and pressure to the seal
• Unique segmental valves - Prevent FLOWTRUE® from clogging
• Integrated non-return valve - Protects plant water supply from product contamination
• Modular design - Ensures that the device can be easily upgraded and repaired

• Construction: Features a main body that is made out of polyacetal, with an 316L stainless steel base and fittings.
• Maximum Temperature: 176°F (80°C)
• Flow Rate (Adjustable): 0.25 - 2.0 Gallons per min. (1.0 - 8.0 Liters per min.)
• Pressure (Adjustable): 0 - 360 PSI (0 - 25 BAR)
• Fitting Size: 3/8"
