ENG MNT 5/8 STUD 30-91LB #91
R & D Engine Mounts

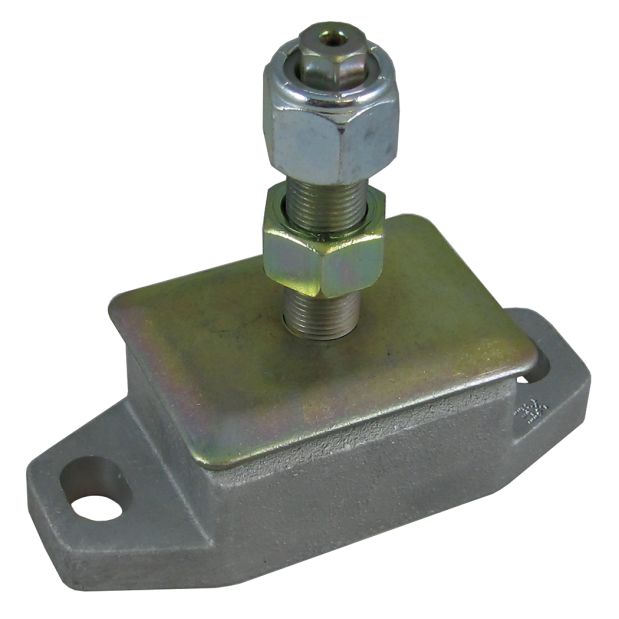

5/8" Stud Small Shear Mount

4" Mounting Hole Centers • Low Height with Minimum Longitudinal Deflection

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
Please choose product option(s).
Designed specifically for marine applications, the Rectangular Shear Mountings offer low height with the best combination of stiffness — soft vertically and at right angles to the crankshaft to isolate vibration, stiff fore and aft to absorb the propeller thrust.
The rubber component is covered by an oil shield to protect it from petroleum based products.
These mounts are preloaded 0.07", based on the anticipated combined engine and transmission weight, to limit engine movement.
To facilitate in the ease of installation the mounts are height adjusting, and the mounting holes in the base of the mount are slotted to assist in alignment of the drivetrain.

• Typical applications include 1,2, & 3 cylinder short stroke high speed engines
• Offers a fail safe design
• Corrosion protected for long service life
• Deflection: 0.07" - 0.14"

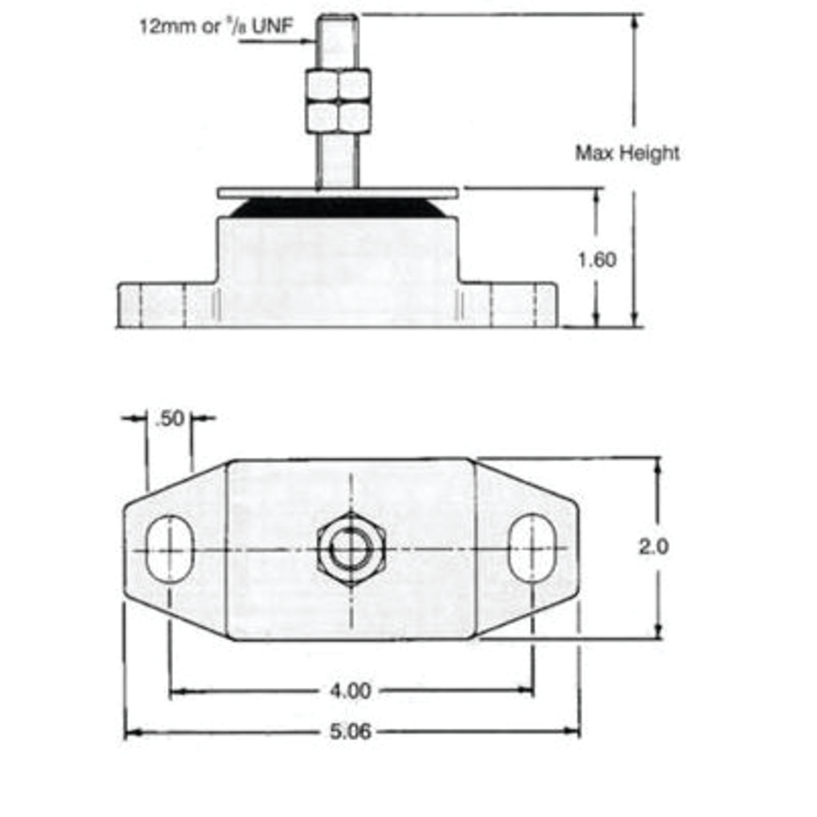

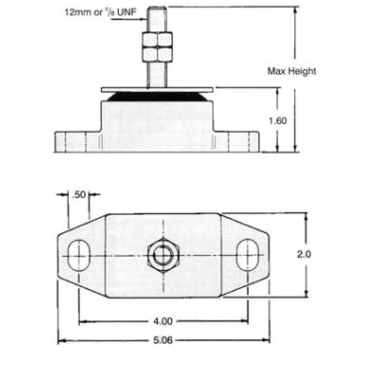

• Base height to top of oil shield at the base of the stud: 1.64"
• Height adjusting nut: 0.55" thick
• Overall mount dimensions: 5.00"L x 2.18"W x 4.57"H

• Note: You need to keep the engine foot low on the stud: the Maximum clearance between the bottom of the lower height adjusting nut and the oil shield on top of the base is 3/8" (10mm); if more height is required, a spacer is recommended under the mounting casting
• When calculating mount requirements, remember to include weight of engine, transmission, and all fluids
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDR and D Drivetrain#AvailabilityDescriptionUOMYour PriceQTY
179092RDD 800-040 800-040Loading...5/8" Stud Small Shear Mount, 30 - 91 lb per MountLoading...
141178RDD 800-041 800-041Loading...5/8" Stud Small Shear Mount, 70 - 201 lb per MountLoading...
Add To Cart
