Description
Racor Turbine Fuel Filters have a world-wide reputation as the best engine protection you can install.
Turbine Filters come in three sizes (500, 900, and 1000), each in one industrial (F) and two marine (MA and MAM) versions.
Now, Racor has upgraded the larger 900 and 1000 models of their Turbine Fuel Filters with features that make this new generation of “V-Series” filters easier to use, more efficient, and more reliable.
Prominently featured is a large shut-off valve integrated into each individual unit – eliminating the need for manifolds and up-stream valves in the fuel delivery line.
Also featured are lower resistance to fuel flow, extra in/out ports, and improved water separation.
(Look for the "V" in the model number.)
The MAM version of turbine filter in this entry is Racor's highest rated Marine design for engine room applications.
It has aluminum water collection bowls, fire-tested drain plugs, and features USCG, ABS, and UL certifications.
See the linked Manufacturer's Resource for a more detailed overview of the differences in the three types of turbine filters — F, MA, and MAM.
This Dual Filter configuration has the advantage of allowing you to use both filters simultaneously to achieve higher maximum flow capacity, with the ability to isolate one filter at a time, if necessary, for servicing the water collection bowl or filter element without having to shut down your engine.
At the heart of every V-Series Turbine unit, is an upgraded service filter element featuring new, third generation Aquabloc® Synergy media.
The new "V" type service filters are designed for the "V" filters, but they are also backward compatible with previous turbine filters.

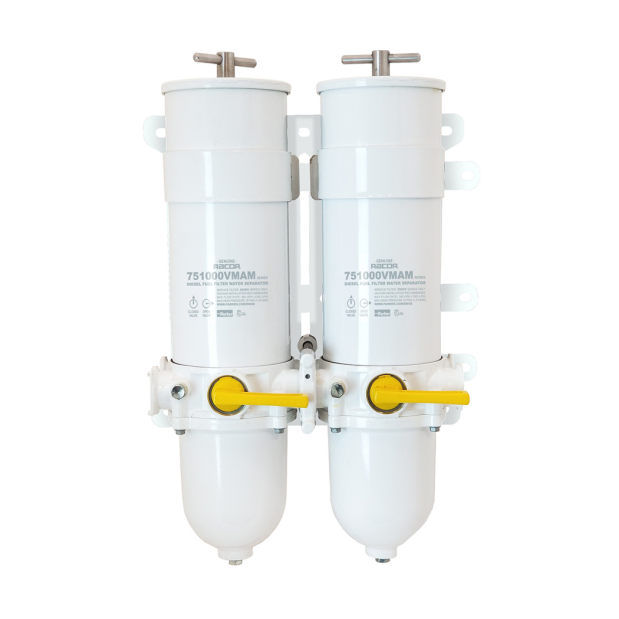

Key features of this new V-Series Dual 1000VMAM fuel filter/water separator –
• Maximum flow rate 360 gph (1362 lph)
• A large-handled integral shut-off valve on each unit – easy to see, eliminates manifolds, extra fittings, and upstream valves
• Larger inlet/outlet ports for less restrictive flow
• Two (2) inlet and two (2) outlet ports allow installation in any configuration required to meet fuel delivery needs
• A new conical baffle turbine design and filter media for improved water separation and filtration
• Replacement filter element – 2020V
V-Series features in detail –
• Individual Integrated On/Off Valve for each filter – eliminates the extra valves and complicated manifold plumbing found on older multi-filter installations
Isolates the filter element for simplified replacement.
The valve position is easy to see from across the engine room.
Large size and intuitive operation makes the valve position easy to use and avoids selection errors.
• Top-Loading Filter Element – for easy service
Supplied standard with a 10 micron V-Series filter element (can be exchanged for user-supplied 2 or 30 micron elements to suit the application)
Toolless access, easy-lift Bail Handle
• Larger 1-5/16” Inlet/Outlet Ports – for less restrictive fuel flow
Less resistance to fuel flow means reduced load on the engine’s fuel pump. Although the ports are larger, maximum fuel flow remains the same, but it’s easier to pull the fuel through the filter.
Each filter is supplied with (2) 3/4” female NPT adapters for the larger 1-5/16-12 UN-2B (SAE 1926-1) straight thread ports, as well as (2) plugs for the unused ports.†
• Dual Inlet/Outlet Ports – increase flexibility and convenience
Right and left side inlet and outlet ports can accommodate any installation requirements. Plumb from the left, plumb from the right, plumb straight across…
simplifies installation by minimizing bends, tubing or hose, and number of fittings.
• Upgraded Conical Turbine/Baffle design increases centrifugal efficiency for better water and particle removal
Provides longer filter element service life.
• Integral Port for Vacuum Gauge – 1/4” NPT port is conveniently located on the front of each unit
Installation of a vacuum gauge where it is easy to monitor is essential for knowing when a filter element has become clogged and needs to be replaced.
This is a "no brainer" accessory which will save you money in the long run, or possibly prevent an untimely engine shut down.
Additional V-Series Filter features –
• Lightweight Universal Mounting Bracket – included with each filter
• Internal floating ball check valve maintains prime when engine is turned off
• Quick-turn self-venting water drain at bottom of bowl
• Integral port in bowl for water-level sensor
• Powder coated corrosion-free filter housing
• Options – Heaters, Priming Pump Kit, water-in-fuel (WIF) sensors
• Not for use with gasoline
NOTE: V-Series Filter assemblies require Racor’s new V-Series Aquabloc® Synergy Service Filter
Elements (2040V & 2020V), which have replaced older models of elements.
Aquabloc® Synergy high efficiency media – is both pleated and corrugated to maximize surface area,
slowing fuel velocity for better filtration/water capture and more time between replacements.
Each new 2040V (5") or 2020V (10") element includes a new lid gasket and T-handle O-ring.
The new V-Series elements are required for V-Series Filters, and they are also backward compatible with existing 900 and 1000 type turbine filters.
Note – Older 2020/40-OR and more recent 2020N/40N filter elements will not work with the new V-Series Turbine Filters.
NOTE – Installation location of a 1000VMA filter must allow 10” clearance above the unit for filter element replacement.
† The adapter's UN-2B straight threads seal with an O-ring on the fitting.
Seal the NPTF threads at the other end using pipe dope when fitting your hose or tubing adapter. Do not use Teflon® tape, which can shed fragments into the fuel.
