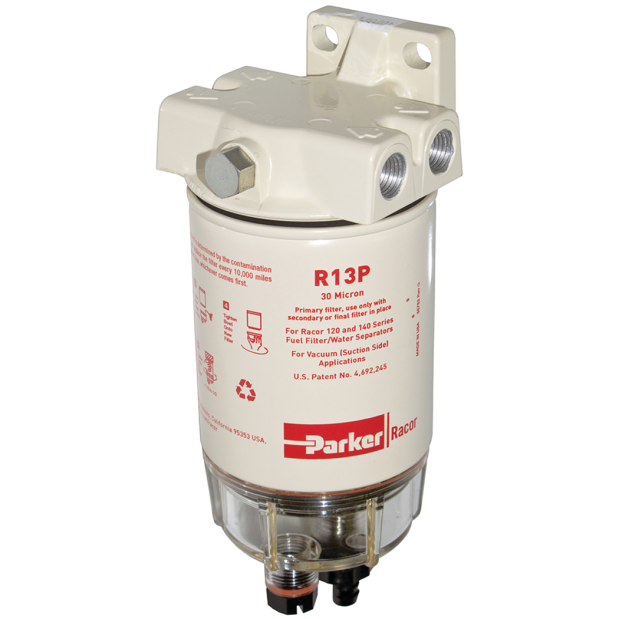

120B Diesel Spin-On Series Fuel Filter with Clear Bowl - 30 Micron Element, 20 GPH

The Racor 120 Series fuel filter and water separators offer Racor proven protection in a small, compact package. The 120 Series offers reliable protection for smaller diesel engines used in generator sets and small construction equipment. Their compact size fits tight mounting locations and cramped engine compartments. Multiple ports offer installation flexibility.

Among the 120 series of filters, these B models offer higher 20 gph flow rates than the 120A models.

The 120 Series assemblies feature spin-on, high-capacity, Aquabloc® II replaceable filter elements which stop 99% of water, remove solid contamination, and are available in 2, 10, and 30 micron.
Filtration needs should be based on application, fuel quality, operating climates, and maintenance schedules.

• For vacuum side of fuel system (tank side of fuel pump)
• 20 GPH maximum flow rates
• Reuseable spin-on contamination collection bowl
• Clear bowl allows water and contamination levels to be seen at a glance
• Clear bowl will not discolor from alcohol, additives, or UV light
• Mounting head has four 1/4"-18 NPTF ports with standard vent plug
• Height: 8.0"
• Bowl has a positive seal drain for easy servicing
• Bowl has a port for an optional water detection kit

2 micron replacement element = R13S

2 micron replacement element = R13P
