90GPH FUEL FILTER/SEPARATOR 2MIC
690 Diesel Spin-On Series
Share THIS PAGE:

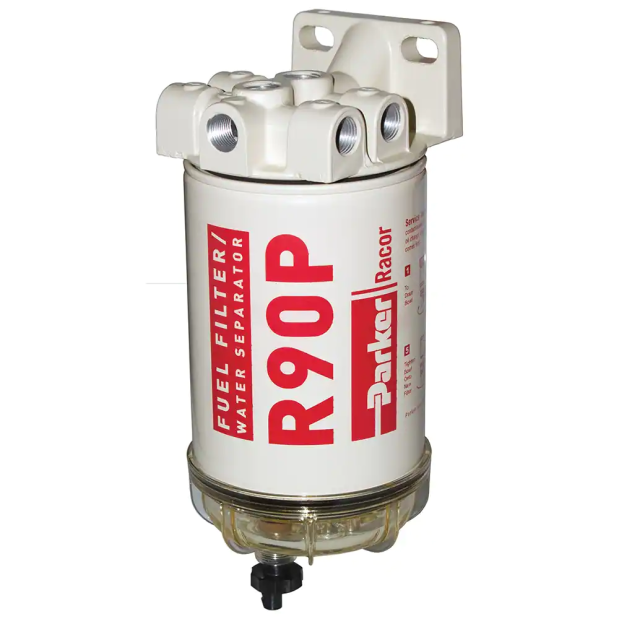

690R Series Diesel Spin-On Fuel Filter - with Clear Bowl

90 GPH Filter • 2 and 30 Micron Models
By: Racor

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
All 600 Series spin-on fuel filter/water separators feature multiple fuel ports (4 inlets and 3 outlets) and a unitized mounting bracket for installation convenience. Inlet and outlet threads are 3/8"-18 NPTF for all models.
These filter assemblies most engine applications.

Additional 600 Series features include spin-on high capacity, Aquabloc® II replaceable filter elements which stop water, remove solid contamination, and are available in 2, 10 and 30 microns.
Filtration needs should be based on application, fuel quality, operating climates, and maintenance schedules. Also included are spin-on contaminant collection bowls. The clear bowls used with these filters will not discolor from alcohol, additives, or UV light and have a leak-proof, positive seal and self-venting drain for easy servicing. Water and contamination levels can be seen easily at a glance.

• Options include: water detection kits (for diesel applications only), vacuum or compound gauges and 12 or 24 volt dc, 200 watt fuel heaters
• May be ordered with an in-bowl water probe to alert the operator of water and contamination
• Use on vacuum side of system
• Height: 11.7"
• Brass fittings sold separately

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDRacor#AvailabilityDescriptionUOMYour PriceQTY
141420RAC 690R2 690R2Loading...690 Diesel Spin-On Series, Filter with 2 Micron ElementLoading...
362839RAC 690R30 690R30Loading...690 Diesel Spin-On Series, Filter with 30 Micron ElementLoading...
Add To Cart
