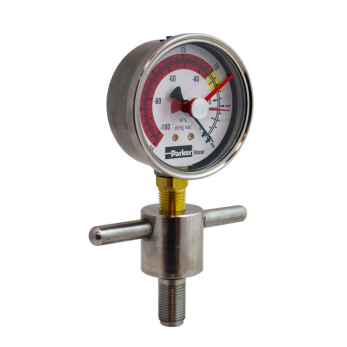

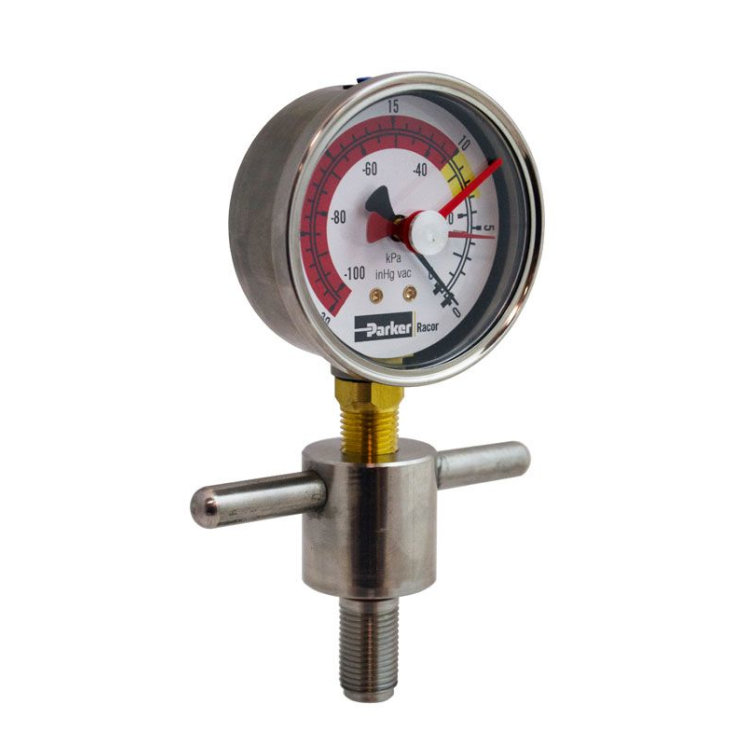

Racor RK19671 T-Handle Gauge Kit

Vacuum/restriction indicators monitor filter condition as the filter slowly becomes clogged with contaminants. As the filter gets dirty, restriction increases and less fuel is delivered to the engine causing the engine to lose power and eventually stall. By installing a vacuum/restriction indicator in your fuel system, visual monitoring of filter condition is possible at a glance, increasing fuel system troubleshooting efficiency, eliminating guess work, and lengthening filter change out intervals.

Fits: 500 (manufacturered after 2002), 900 and 1000 model Turbine Series fuel filter/water separators, including UL marine listed models (MA versions).

• Stainless Steel case and face increased from 2.0 inches to 2.5 inches diameter for easier reading
• The Racor rk19671 improved cases feature a pressure relief valve to adjust to ambient barometric pressure changes
• Acrylic lenses upgraded to polycarbonate
• Needle stops replaced with internal locking mechanism to prevent damage due to an accidental overpressure
• Internal sealing at the fitting, lens, and pressure relief valve reduces the likelihood of internal contamination by splashing fluids
• Gauge Thread Size (threads that screw in to top of t-handle): 1/4-18 NPTF
• T-handle Thread Size (threads that screw in to top of turbine filters): 9/16-18 UNF - 2A
• Gauge reads vacuum -30 to 0 "Hg
• No tools required
• Stainless steel material provides superior corrosion resistance
• Compatible with all Turbine series (500 (manufactured after 2002), 900 and 1000)
• UL approved for use on marine listed models (MA versions)
• Eliminates the guesswork from fuel filter maintenance
• Lowers operational costs and extends filter life
