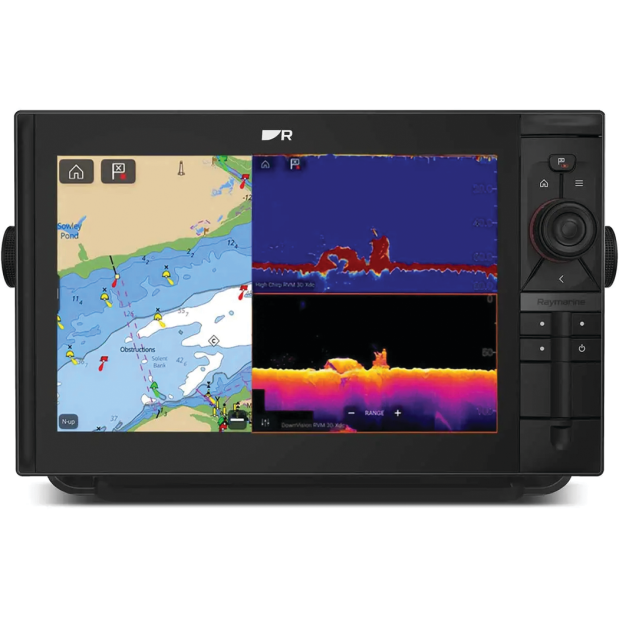

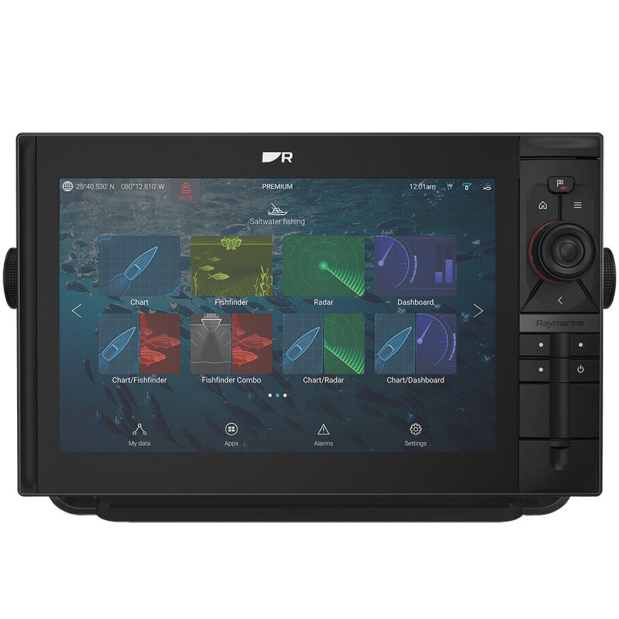

Axiom 2 Pro RVM HybridTouch Chartplotter

No matter where your day takes you, you can confidently handle any unexpected situations with ease, thanks to the exceptional awareness provided by Axiom® 2 Pro. This remarkable fishing system combines a chartplotter, fish finder, radar, autopilot, and video capabilities into one powerful device. With Axiom 2 Pro's HybridTouch™ technology, which combines a user-friendly touchscreen and keypad interface, navigating and controlling the system is effortless. The intuitive LightHouse operating system further enhances the user experience. Specifically designed for deep-sea exploration, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder equipped with RealVision® MAX CHIRP sonar technology. With this advanced system, you can plan your next offshore adventure with confidence and embark on a successful fishing expedition.

Power That Pushes the Limits
Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Enjoy faster, seamless integration of GPS, fishfinder, radar and video thanks to the super intuitive LightHouse operating system.

Ready for All Conditions
Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors and excellent sunlight visibility.
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions

Confident Control

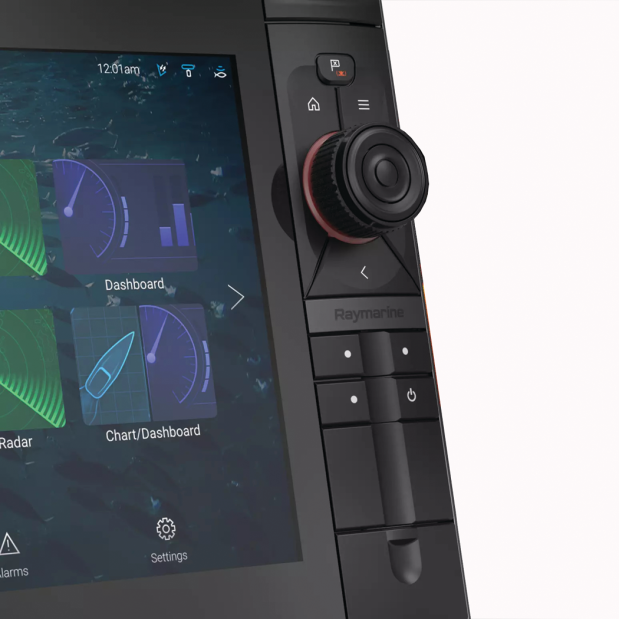

Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.
Customize your Axiom 2 Pro with interchangeable keypads that allow you to choose between a dedicated Evolution autopilot keypad or user-programable soft keys.

Find More Fish with RealVision MAX
RealVision MAX ups your fishfinding game with increased range, better resolution and sharper fish targets.
Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D and 600-watt traditional CHIRP fishfinder for coastal fishing, plus a 1kW dual channel CHIRP fishfinder for deep water.

Discover More
Created from official hydrographic chart sources, you can trust LightHouse Charts for maximum readability, intuitive navigation, and superior quality.

Upgrade your Awareness
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.

Turn Night Into Day
FLIR thermal imaging and Axiom 2 Pro turn night into day, keeping you safe and secure so you can boat with confidence.

Make Smarter Decisions
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.

Advanced Engine Integration
Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.

Stream, Watch, and Listen
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen with HDMI output.

Connections
• Ethernet connection: 2 RayNet (10/100/1,000 Mbits/s) ports
• NMEA 2000 connection: DeviceNet connector
• Wi-Fi: Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
• Bluetooth: v4.0
• Accessory connection : USB Micro B
• Internal storage: 64GB Solid State
• External storage: 2 front mounted MicroSDXC card slots
• Digital Video and Audio: HDMI Out Micro connector type D
• Analog video connections: BNC Analog video input (on power cable)
• Analog audio connections: RCA connectors via power cable
• External GPS anternna: TNC connector

Sonar
Power output
• RealVision MAX high CHIRP sonar channel: 600 Watts RMS
• Traditional dual channel CHIRP channel: 1kW RMS
Sonar channels
• RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)
• 1kW CHIRP Port: 42 - 250kHz (Transducer dependent)
RealVision MAX Depth range
• 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft),
RealVision 3D: 91 m (300 ft)
1 kW Depth range
• 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)
Connections
• 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector
