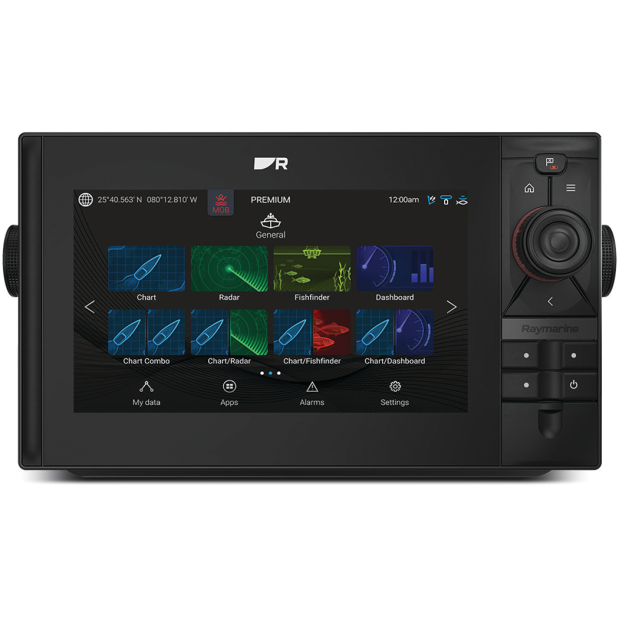

Axiom 2 Pro S Chartplotters

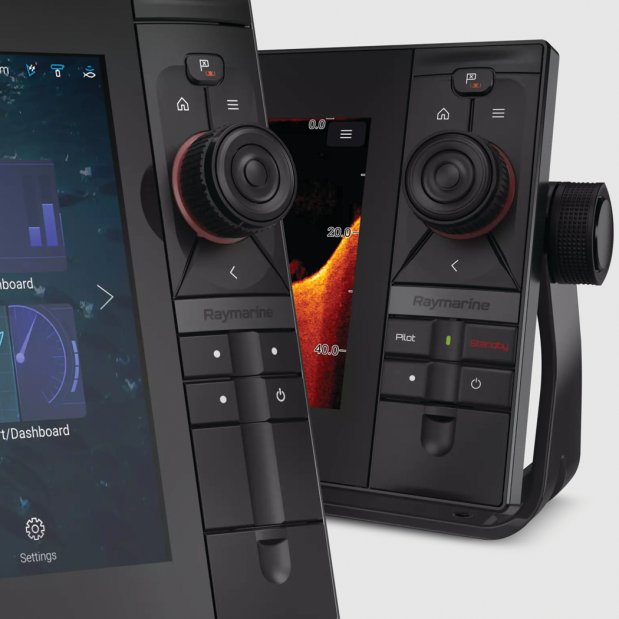

The Axiom 2 Pro integrates chartplotter, sonar, radar, autopilot, and video functionalities into a comprehensive navigation system. This advanced system allows for smarter navigation and the ability to expand your setup, facilitated by the user-friendly LightHouse operating system. With Axiom 2 Pro’s HybridTouch™, you can confidently plan your next journey using a seamless combination of touchscreen and keypad controls. The Axiom 2 Pro S chartplotters come equipped with a built-in single channel High CHIRP sonar, providing an optimal solution for accurate depth measurement and underwater exploration. Offered in display sizes of 9, 12, or 16 inches, the Axiom 2 Pro serves as an excellent companion for cruising.

Polars and Dynamic Laylines
Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.

Race Like a Pro
Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.

Tactical Advantage
Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.

Discover More

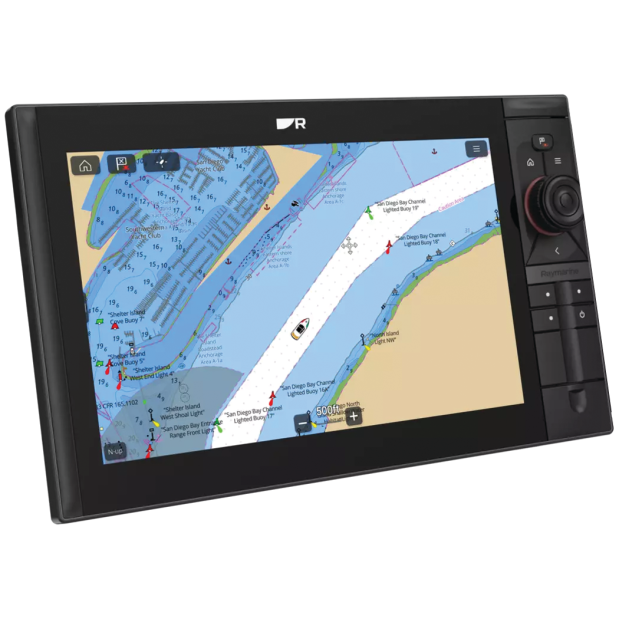

Created from official hydrographic chart sources, you can trust LightHouse Charts for maximum readability, intuitive navigation, and superior quality.

Upgrade your Awareness
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.

Turn Night Into Day
FLIR thermal imaging and Axiom 2 Pro turn night into day, keeping you safe and secure so you can boat with confidence.

Make Smarter Decisions
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.

Advanced Engine Integration
Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.

Stream, Watch, and Listen
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen with HDMI output.

Stay Connected
Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.

Axiom on your Smartphone
Built-in Wi-Fi lets you view and control your Axiom 2 Pro on your phone or tablet with the Raymarine Mobile App.

Do More with LightHouse Apps
Expand the capabilities of our Axiom 2 Pro with third-party apps from our marine technology partners.

Create a Powerful Navigation System
Two RayNet Ethernet ports and NMEA2000 give you the flexibility to create an Axiom 2 Pro system with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.

Connections:

• Digital Video & Audio Out Connection: HDMI Out Micro connector type D’
• External GPS Antenna Connection: TNC connector
• Accessory connection: USB Micro B (rear–charging, external storage device or RCR-SD/USB Accessory (A80440)
• Ethernet connection: RayNet (10/100/1,000 Mbits/s) x2
• External storage: MicroSD card slot x2 (front)
• Chart options: Navionics+ or Navionics Platinum or C-map 4D Software, Lighthouse North America included with the E70653-00-102 (E70653 comes with no charts)
• NMEA 2000 connection: DeviceNet connector
• Analog video connections: BNC Analog video input (on power cable)
• Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
• Transducer connection: 25-pin RealVision type connector (requires adaptor cable)
• Audio connections: Left and Right RCA connectors via Power/Video/Audio cable

GPS:

• GNSS compatibility: GPS, Galileo, GLONASS, Beidou

Sonar:

• Channels: CHIRP conical sonar (Uses CPT-S Transducers with adapter cable A80490)
• Depth range: 0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions

Lighting:

• Illumination: Axiom 2 Pro 9 1300 nits / 1300 cd/m2, Axiom 2 Pro 12 & 16 1200 nits / 1200 cd/m2

Storage:

• Internal storage: 64 GB Solid State

Specifications:
• Cartography Brand: Navionics/C-Map
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: No
