B164 HP DUAL FREQ TRANSDUCER 1KW
Transducers - Depth, Speed and Temperature
Share THIS PAGE:

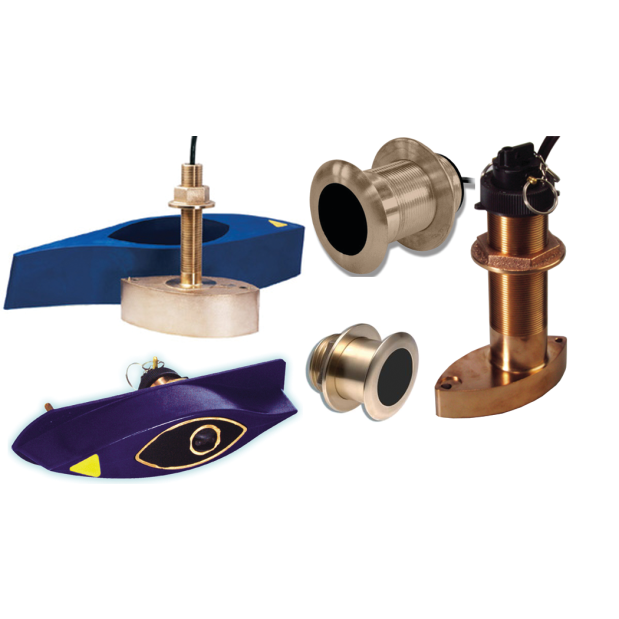

Bronze Thru Hull Transducers

Compatible with a Variety of Raymarine Depth Sounders

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Choose a transducer compatible with the Raymarine Series product you own; see table. Transducer kits come with installation instructions. Please follow these instructions carefully to ensure proper operation.
• Transducers only provide raw data, and must be connected to a processor (usually a depth sounder with a display, or a “black box” module) in order to display depth, speed, etc. Depth transducers are commonly available in 50/200 KHz (deep/shallow water) and 200 KHz (shallow water, less than 600 ft.) models
• Transducers with 0° of element tilt must be mounted so they point straight down; if the hull is curved or angled, they often require fairing blocks to achieve this. Transducers showing a range of element tilt angles (relative to the hull) can be set to a particular angle within that range at the time of installation. This can eliminate the need for using a fairing block when mounting on a curved or angled hull
• Models E26030, E66071, and M78717 have a removable core which can be replaced with a plug for safety
• Typical beam angles: 200 kHz 12°, 50 kHz 45°
• Replaceable/removable paddle wheel in speed transducers
• Hull material: wood - use a bronze transducer
• Hull material: fiberglass - use any transducer material
• Hull material: aluminum - use a plastic transducer

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDRay Marine#AvailabilityDescriptionUOMYour PriceQTY

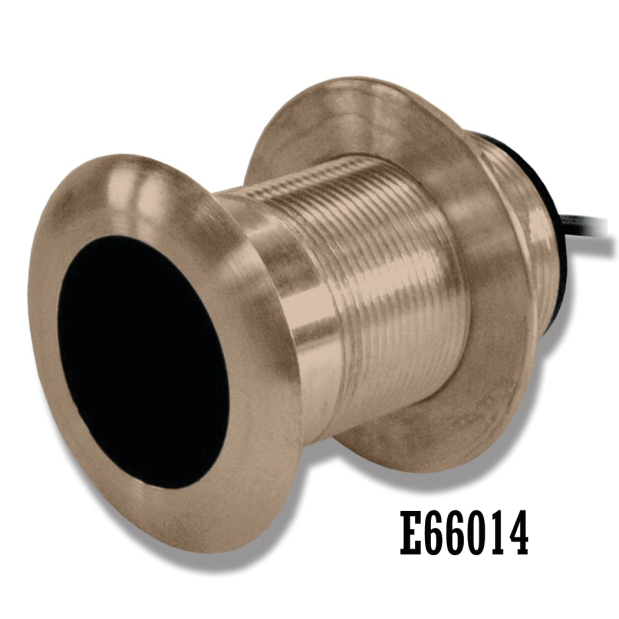

158439RAY E66014 E66014Loading...Bronze Thru Hull Transducers - Depth, Speed and Temperature, RAY E66014Loading...
362846RAY E66087 E66087Loading...Bronze Thru Hull Transducers - Depth, Speed and Temperature, RAY E66087Loading...

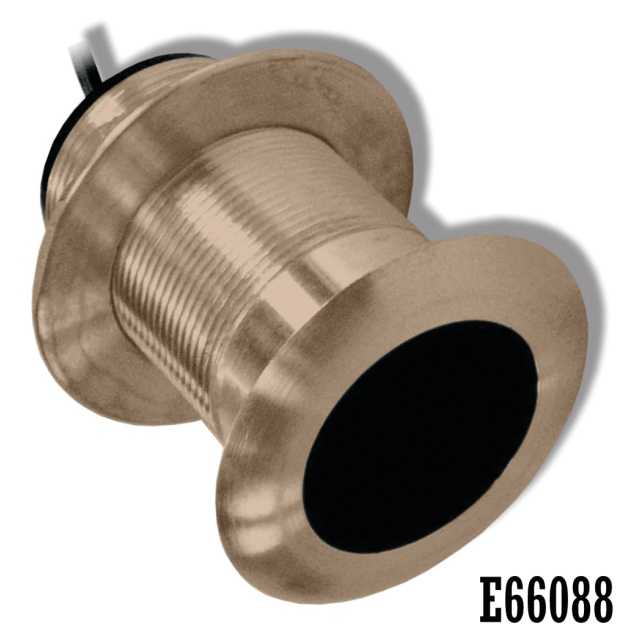

214383RAY E66088 E66088Loading...Bronze Thru Hull Transducers - Depth, Speed and Temperature, RAY E66088Loading...

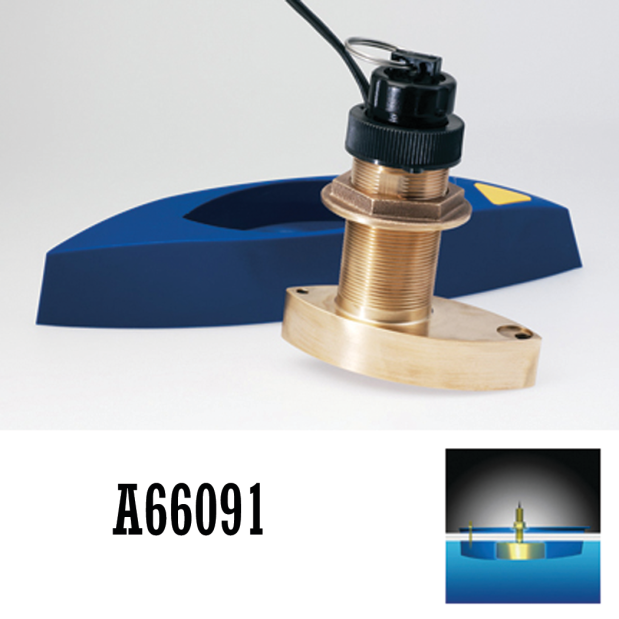

198160RAY A66091 A66091Loading...Bronze Thru Hull Transducers - Depth, Speed and Temperature, RAY A66091Loading...

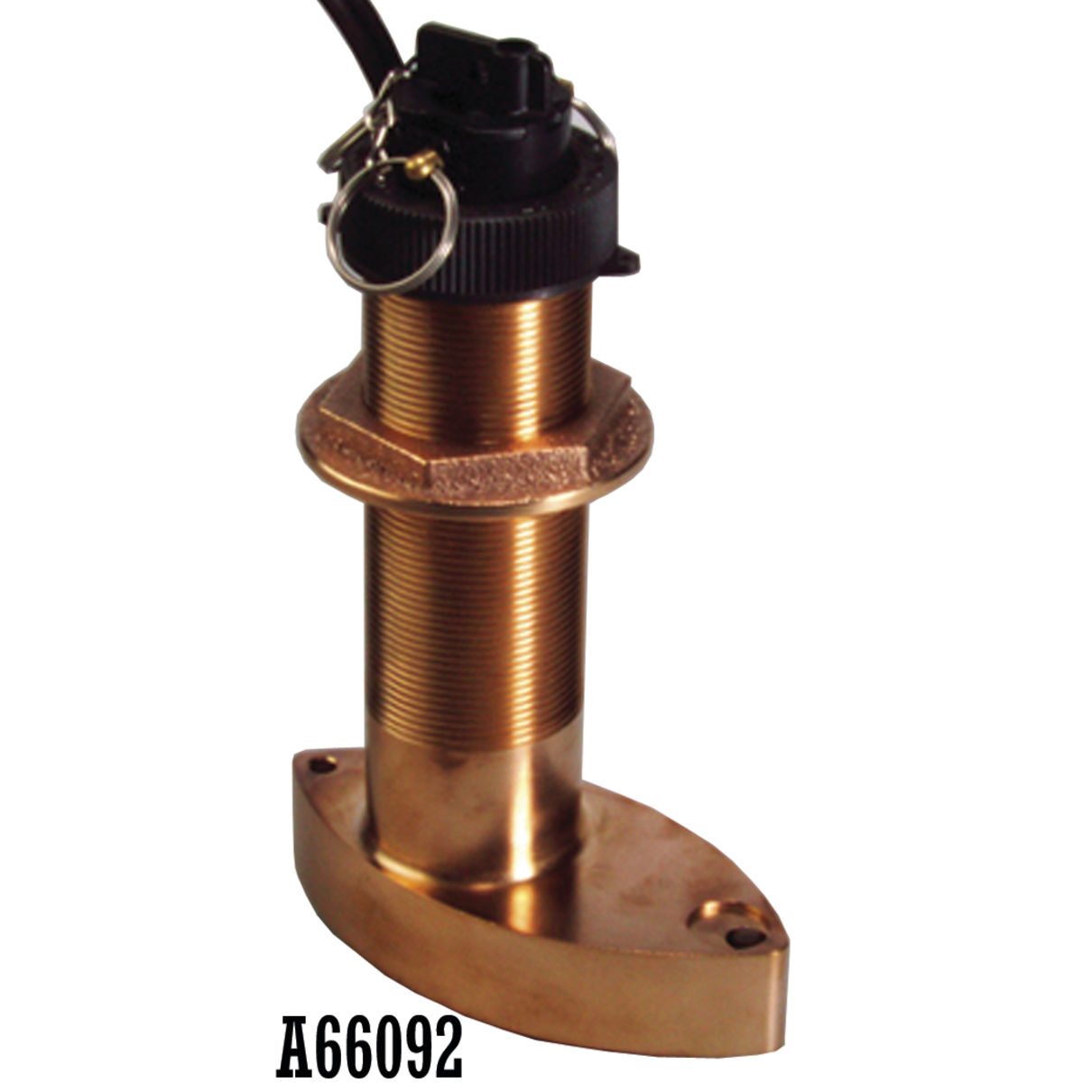

203503RAY A66092 A66092Loading...Bronze Thru Hull Transducers - Depth, Speed and Temperature, RAY A66092Loading...

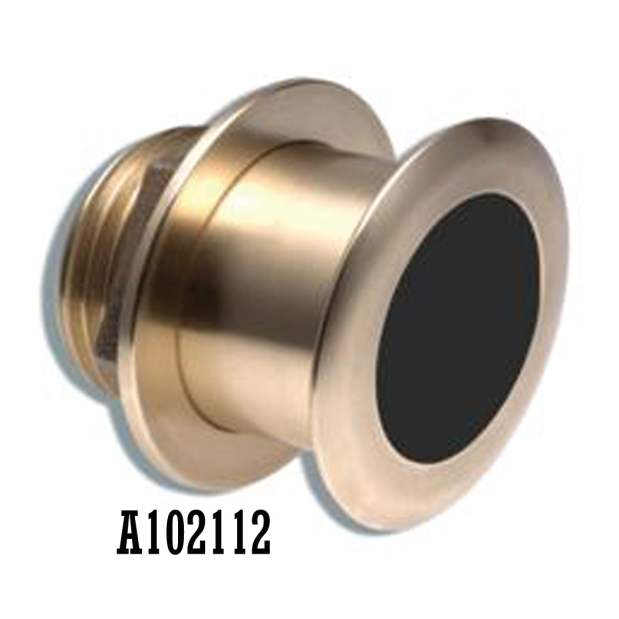

214288RAY A102112 A102112Loading...Bronze Thru Hull Transducers - Depth, Speed and Temperature, RAY A102112Loading...

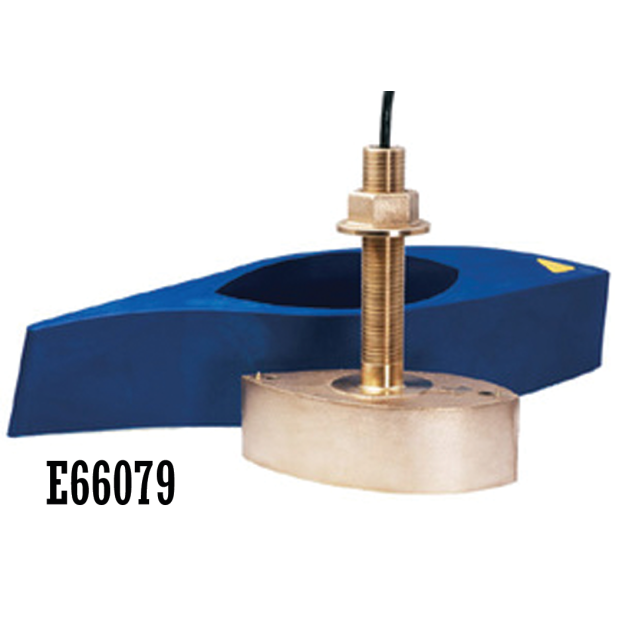

181097RAY E66079 E66079Loading...Bronze Thru Hull Transducers - Depth, Speed and Temperature, RAY E66079Loading...

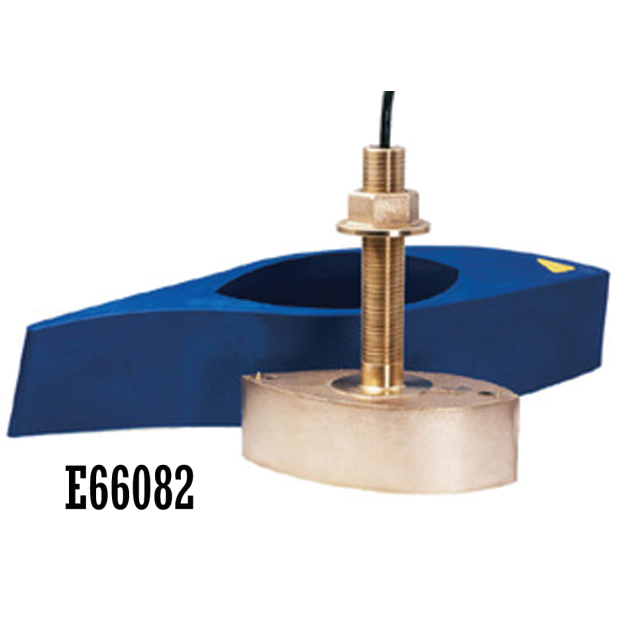

181339RAY E66082 E66082Loading...Bronze Thru Hull Transducers - Depth, Speed and Temperature, RAY E66082Loading...
Add To Cart
