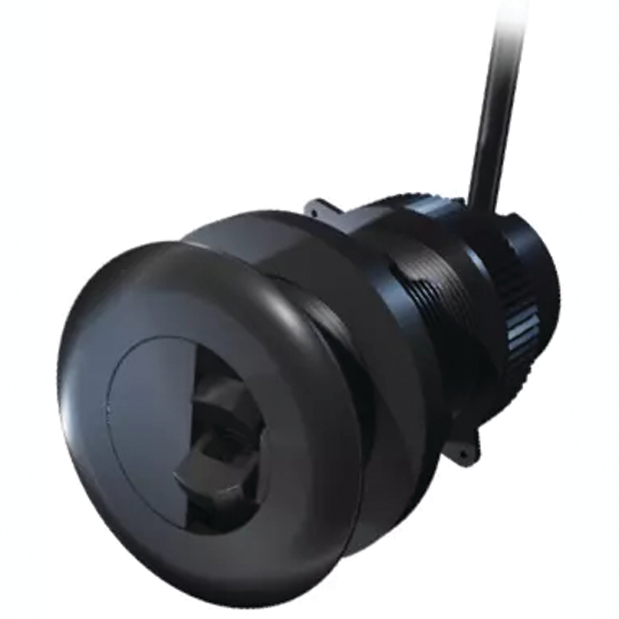

DST810 Gen2 Smart Transducer

Depth, speed, and temperature multi-sensor transducer featuring NMEA2000 output!

The DST810 is a versatile multi-sensor transducer equipped with depth, speed, and temperature sensors. Simply connect the DST810 to the SeaTalk network to access data on all your connected instruments, chartplotters, and multifunction displays.

Additionally, the DST810 comes with an integrated attitude sensor that assesses the vessel's heel and trim. By merging these measurements with the highly accurate readings from its Gen2 paddlewheel sensor, the DST810 delivers heel-compensated speed through water readings without the need for extra sensors.

Calibration of the DST810 is accomplished via the downloadable Airmar CAST app for smartphones and tablets, which connects directly to the transducer using Bluetooth.

• Convenient depth, speed and temperature sensors in a single 2-inch through-hull fitting
• 5.7 Hz speed output (5x per second) for smooth speed-through-water readings
• Advanced speed calibrations for heel and trim available through the CAST app
• Ultra-responsive speed readings from 0.3 knots
• 235 kHz frequency prevents mutual interference with other onboard depth sounder and fishfinders
• 2-inch, high-strength plastic housing suitable for fiberglass or metal hulls
• Retractable housing with water valve for easy maintenance
• 2.5M (8-feet) interconnect cable with SeaTalk(ng) connector
• Adapter required for NMEA2000 output
