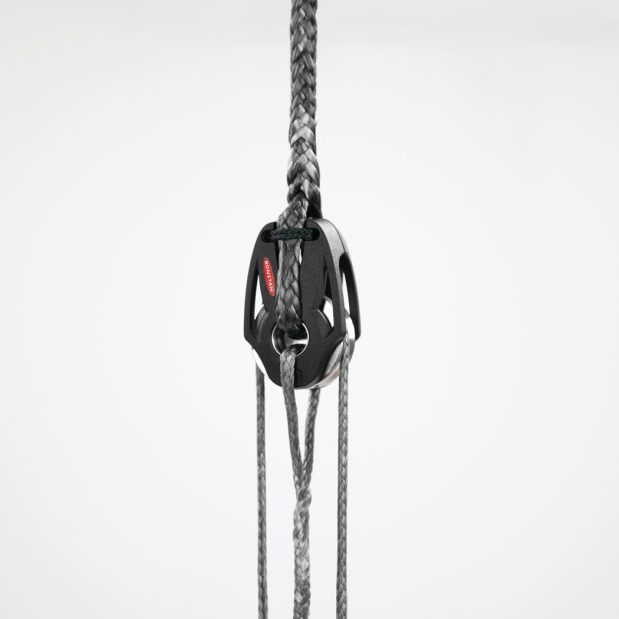

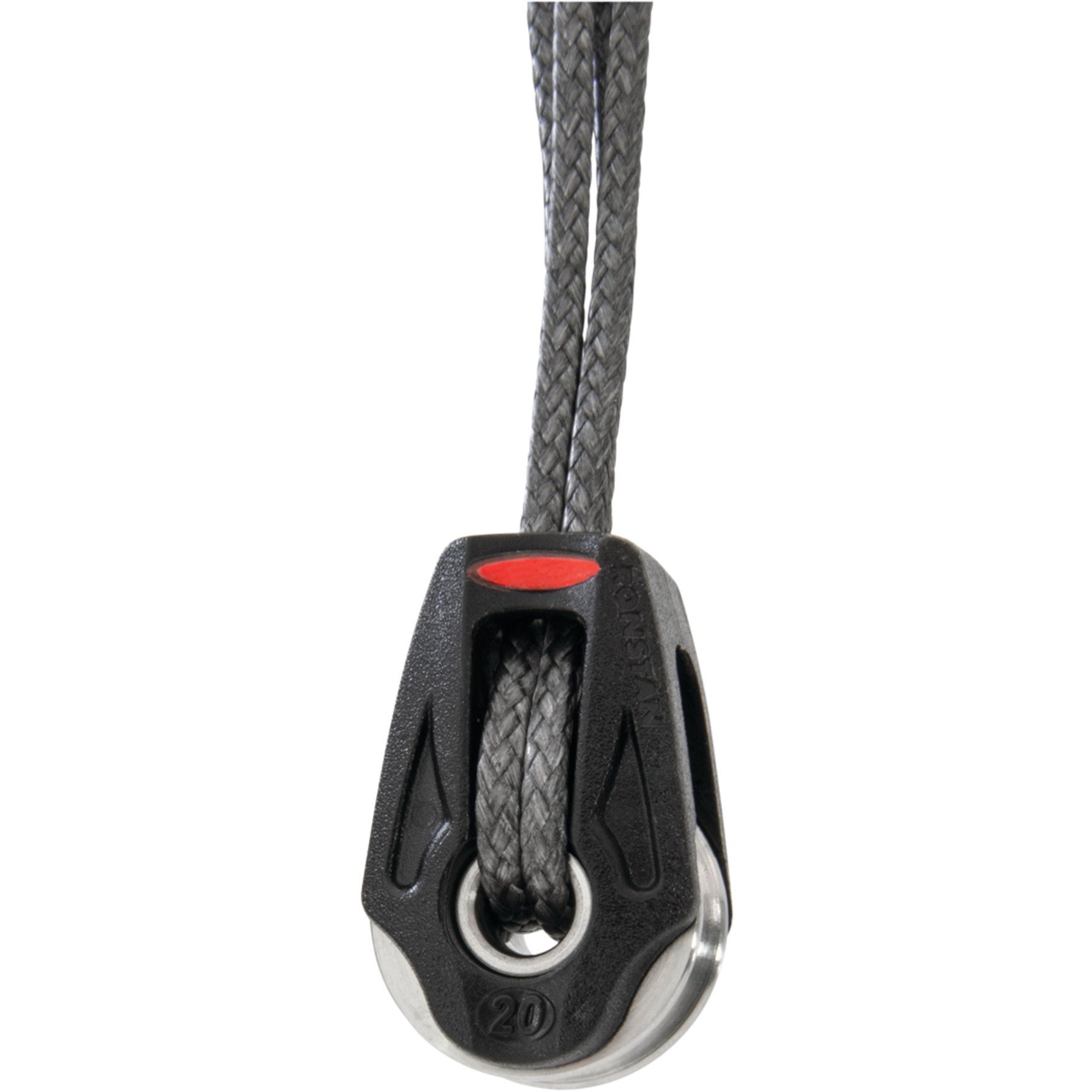

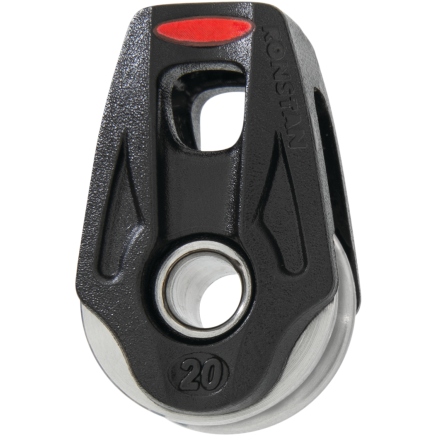

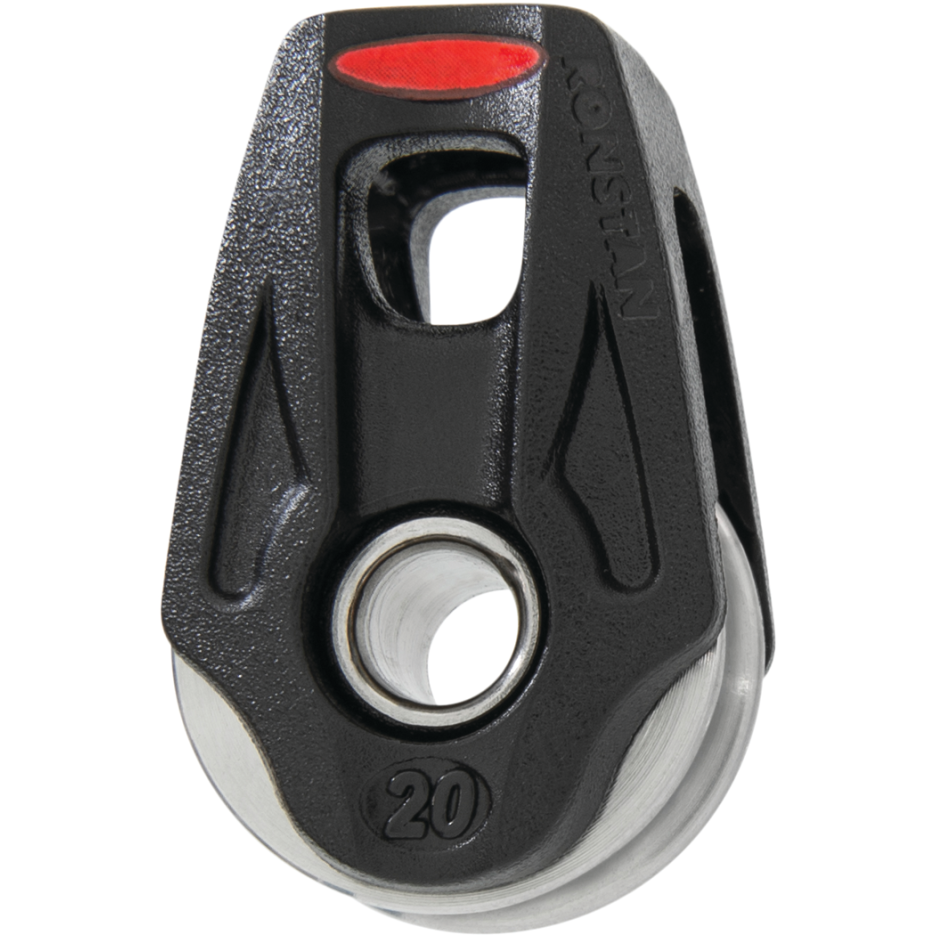

20 mm Lashing Block for High-Load Applications

This block, specifically designed for modern high-performance foiling, skiff and multihull classes, suits any applications where high loads are experienced.
Typical applications include high load vang purchase systems on Moth and Lasers, halyards on skiffs; cunninghams, outhauls and backstay purchase systems just to name a few.
Such a high load rating is unique for a block of this size, its impressive strength-to-weight ratio is a result of clever design and the selection of the right materials, such as glass fibre reinforced nylon cheeks, a high-grade stainless-steel sheave, ball race and balls.
• Suits up to 4mm (5/32") lashing
• Supplied with 750mm (30") x 2mm (3/32") diameter,
• Dyneema® single braid lashing line
• Sheave: high compression strength carbon black Acetal
• Frame:/Cheeks: Toughened, glass fibre reinforced Nylon
• Load straps and ball bearings: Grade 316 stainless steel
• HHL sheave and bearing race: Grade 2205 stainless steel, Balls: Grade 316
• Frame/Cheeks: Toughened, glass fibre

* Block must be lashed through hub. The supplied lashing line must have three passes through head and hub to achieve rated load. MWL & BL are dependent on the strength of lashing. Knots, splices, stitching will generally have a lower BL than the line itself.
