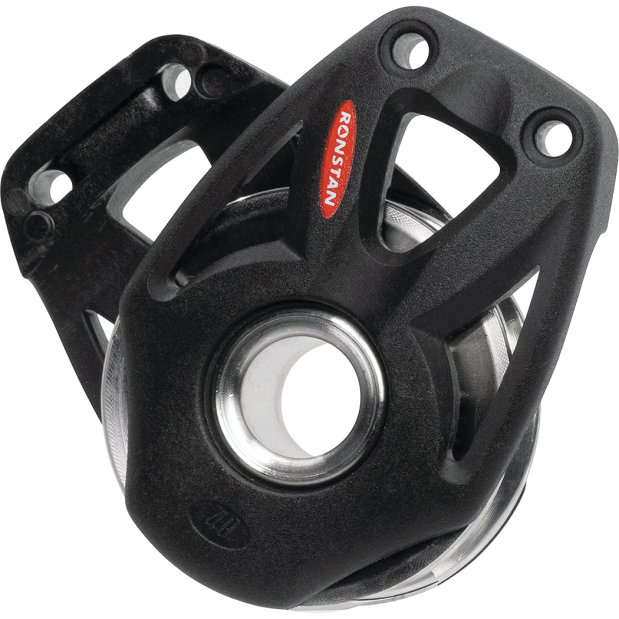

40 mm Orbit Block - Single HHL, Becket, Lashing

The Series 40 ball bearing Orbit single hi-load lashing block provide the perfect balance of strength, performance and reliability. The sheave articulate around stainless steel hub, for use as a snatch block. A 1mm line is supplied to secure lashing line (sold separately) to the head of the block. The Series 40 hi-load ball bearing blocks features a triple stainless steel ball race for extremely high load applications. This blocks feature glass fiber nylon cheeks, high strength grade 2205 stainless steel sheave, stainless steel hub and s.s. ball bearings. Central hub can be used as a becket attachment point. 10mm max line diameter
• High-load sheave manufactured with grade 2205 s.s., triple row of s.s. ball bearings to maintain low friction at very high loads
• Side open cheek for loading pre-spliced lines and for lashing soft attachment line.
• Central hub can be used as becket point
• 1 mm lashing line included to secure soft-attachment line to head of block
• Frame and cheeks manufactured from high tensile glass fiber nylon
• Class leading dynamic and static load ratings
• Lightweight, yet strong. Toughened, glass fibre reinforced nylon replaces stainless steel straps used in our traditional utility blocks
• Soft attachment, lashing and traditional swivel shackle head options
• Low profile and compact
• High performance cleating
• Stainless steel shackle head for unlimited block rotation, and compatibility with sharp fixing points
• Integrated becket
• Low friction 2-stage ball bearing system for efficient and effortless trimming
