Orbit Electric Two-Speed ST Winches - w/Quick Trim

Orbit Winches™ are now available with an E1 Single Speed Electric Motor. Like their manual cousins, they feature the QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
Perfect for enjoying sailing short-handed or with friends and family, E1 Electric winches are engineered with unsurpassed levels of functionality, monitoring, and protections.

Installation is simple with no external control box required. An illuminated “intelligent” push button aids in several safety precautions including overload protection, thermal overload protection, accidental start protection, reverse polarity protection, and more.
At the heart of the system is a high quality, European engineered and manufactured series-wound motor, matched with the optimum gearbox for efficient pulling power and line speed.

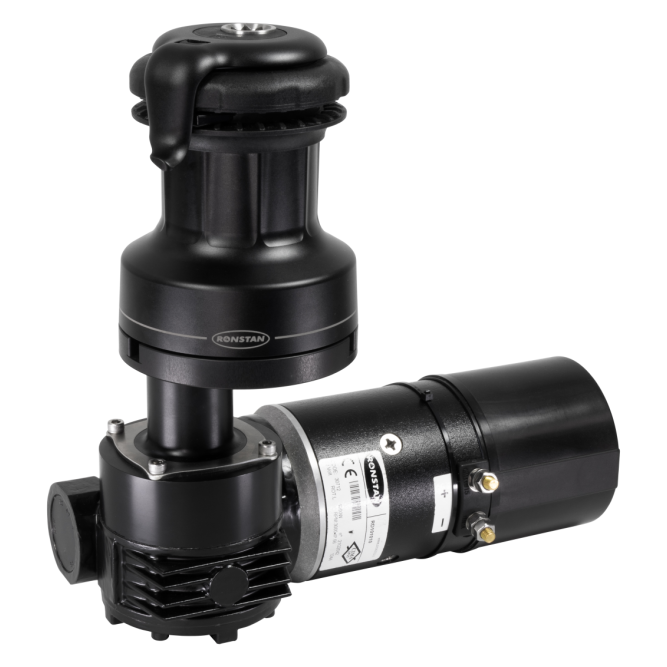

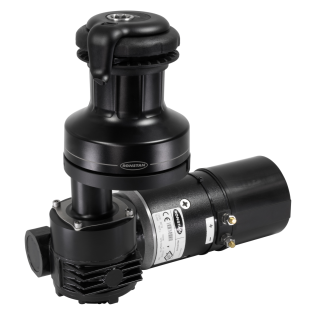

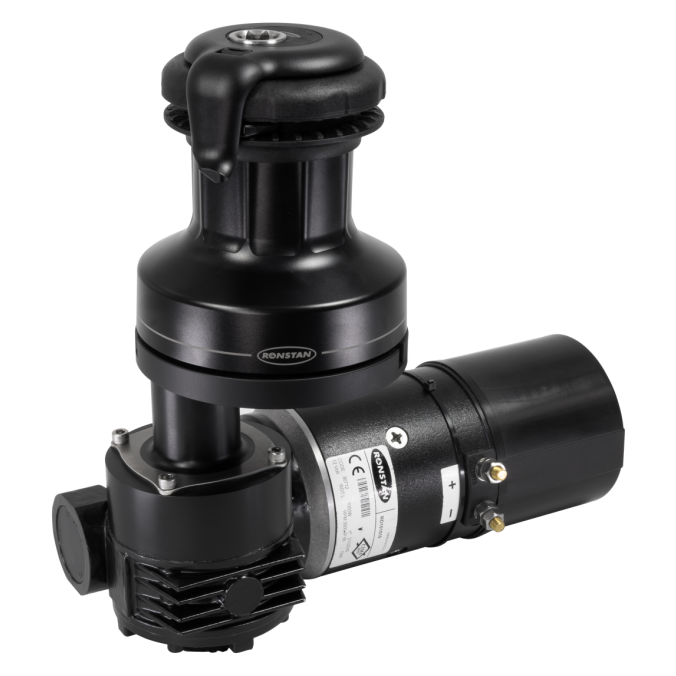

Available for sizes 30QT and 40QT in 12V or 24V versions.
• Power Rib™ drum ensures a controlled grip at all times, whether trimming or easing
• Fully machined aluminium drum, stronger and lighter than traditional cast aluminium drums
• Self-tailer accepts line diameters 7-12mm
• 2-speed manual operation is always available as a backup, to winch beyond the pre-set maximum pull load of the electric function (but below the winch Max Working Load), or just for the experience
• Shaft extensions available to suit thicker deck (K) dimensions
• 3-Year warranty

Sold separately:
Circuit Breaker - 150A for 12V models; 70A for 24V models.
