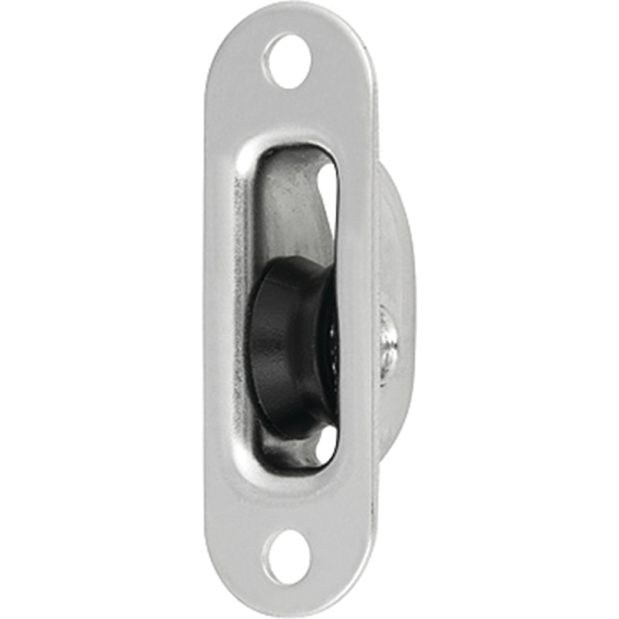

Series 15 mm Ball Bearing Single Exit Block
Series 15 mm Ball Bearing Single Exit Block - 3/16" Line, 260 lb SWL
SKU: 1005219 Item ID: RON RF15711
Description
• Smallest and lightest ball bearing blocks available
• Precision molded acetal sheave running on stainless steel ball bearings provide high performance and low friction
• Features a flush axle rivet to minimize cut-out and facillitate installation
• Formed single piece housing for maximum strength and minimal line wear
Applications
• Dinghy halyards
• Dinghy control lines
• Vangs, cunninghams and tweakers
• Shock cord tensioning systems
Materials
• BB sheaves: UV stabilized acetal
• Ball bearings: Stainless steel
• Cheeks: Grade 316 stainless steel
Specifications
MFG #:RF15711
Breaking Load
1210 lb
Max. Line Diameter
3/16"
Max. Working Load
260 lb
Sheave Diameter
5/8"
Type
Series 15 mm Ball Bearing Single Exit Block
Weight
0.5 oz
Barcode
9316800555246
