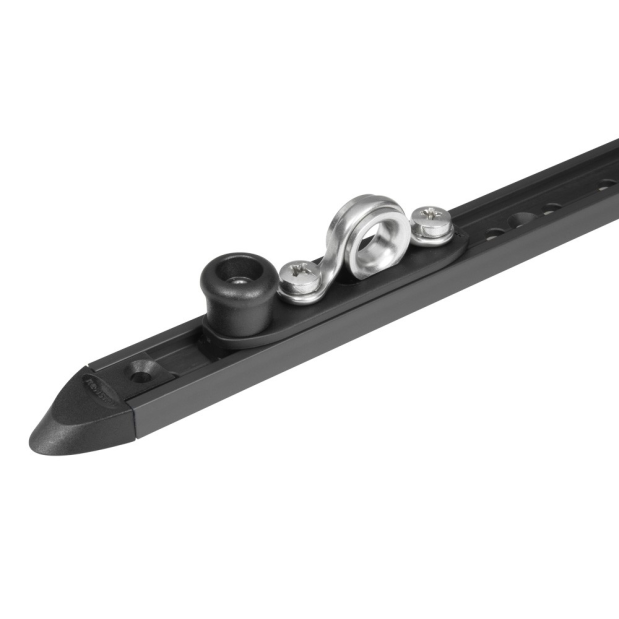

Ser 19 Composite Slide - Saddle Ferrule & Plunger
Series 19 Composite Slide - Saddle with Ferrule Fairlead and Plunger Stop, 485 lb Max. Working Load
SKU: 1013159 Item ID: RON RC91944
- For Series 19 3/4" C-Track
Description
This glass-fiber reinforced polymer slide only weighs about half the weight of the earlier system but provides identical load capacities.
Series 19 composite slides also have lower friction when running in the track.
This Series 19 slide is suited for a variety of functions on sports boats and keel boats up to approximately 23 ft (7m).
The spring-loaded plunger stop allows for fast, positive positioning on the track.
The ferrule saddle provides fairlead function for lines up to 3/8" (10 mm).
• Dinghy and small catamaran jib sheet leads
• Dinghy outhauls
• Strong, lightweight fiberglass reinforced construction
• Grade 316 stainless steel hardware
Specifications
MFG #:RC91944
Length
71 mm (2.8")
Maximum Working Load
220 kg (485 lb)
Breaking Load
440 kg (970 lb)
Weight
40 gm (1.41 oz)
Maximum Line Diameter
10 mm (3/8")
Type
Series 19 Composite Slide - Saddle with Ferrule Fairlead and Plunger Stop, 485 lb Max. Working Load
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
9316800577668
