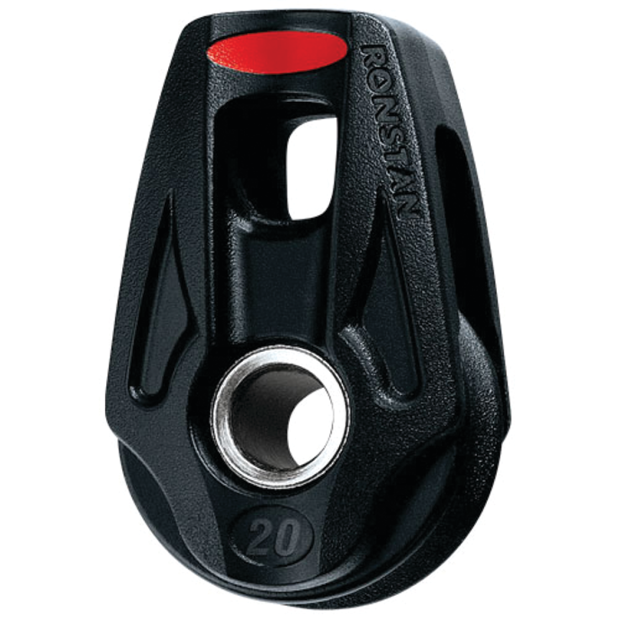

20 mm Ball Bearing Orbit Block
Description
The incredible Series 20 Orbit Block is capable of loads up to 250kg (550lb) while weighing a mere 9 grams. It’s so light that it needs to be lashed down!

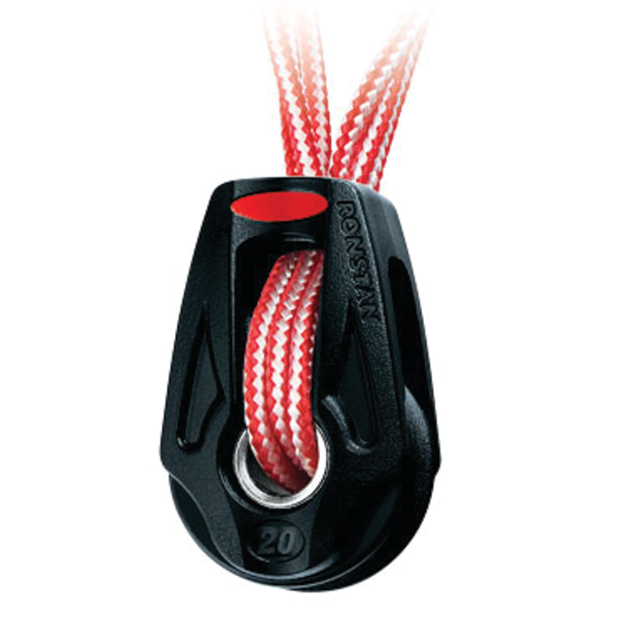

• Integrated stainless steel hub to accept lashing attachment and through-sheave becket
• Suits up to 4mm (5/32”) lashing
• Includes 750 mm (30") x 1.7mm (1/16") diam lashing cord
• Control lines on dinghies and catamarans to 16ft
• Sheave: High compression strength carbon Acetal
• Ball bearings: stainless steel
• Frame/Cheeks: Nylon
Specifications
MFG #:RF25109
BL
1200 lbs
Max Rope
6 mm
MWL
550 lbs
Sheave Dia
20 mm
Barcodes
316800414184
9316800414185
9316800414185
