Threaded Machine Swage Studs - Right - Hand Thread
null

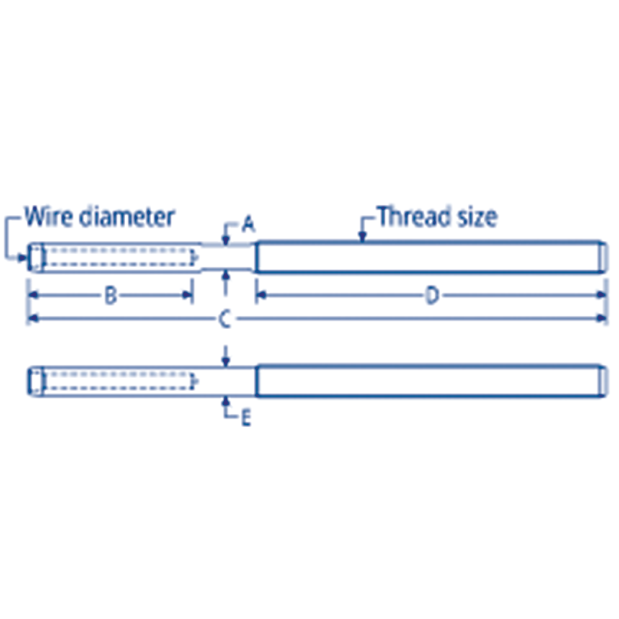

Dimensions of Ronstan Threaded Machine Swage Studs - Right - Hand Thread
null
Dimensions of Ronstan Threaded Machine Swage Studs - Right - Hand Thread

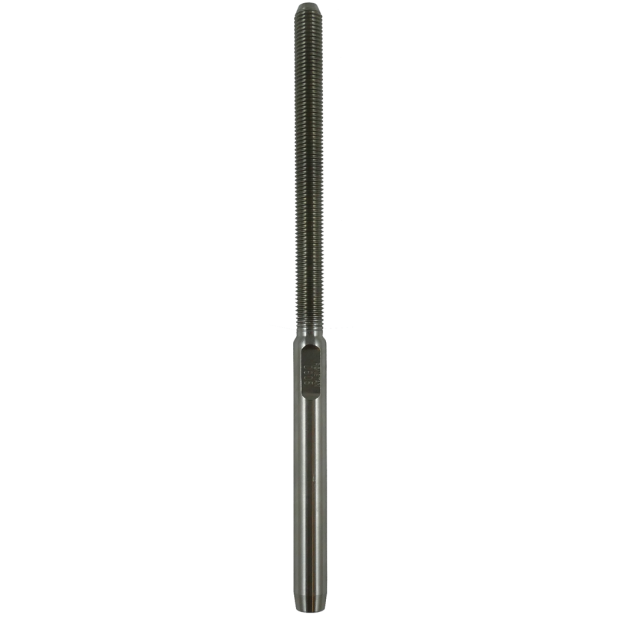

Threaded Machine Swage Stud - 3/16" Wire x 5/16" UNF x 3-1/2" RH Thread

SKU: 148153 Item ID: RON RF1510-0605
  • Series RF1500 - 3/32"-1" Wire
Your Price:$11.60/ Each
Availability:
5 In Stock
Ships immediately
Quantity:
Return Policy

Description

Right-hand, UNF (fine), rolled threads for greater strength. Grade 316 stainless steel.

Are You a Pro?

Fisheries offers discounted pro pricing, real-time inventory and same-day shipping -- as well as our solid customer service reps.

Apply Now

Specifications

MFG #:RF1510-0605
Weight
2.0 oz
Wire Rope Diameter
3/16"
Material
316 Stainless Steel
Thread
5/16" UNF RH
Threaded Stud Length
3-1/2"
A
5/16"
B
2-3/16"
C
6-1/2"
D
3-1/2"
E
3/8"
Suits Turnbuckles
RF1576-0605, RF1574-0605
Barcodes
9316800022267
931680002223
