S2R SCAD Sensor to Resistance Converter

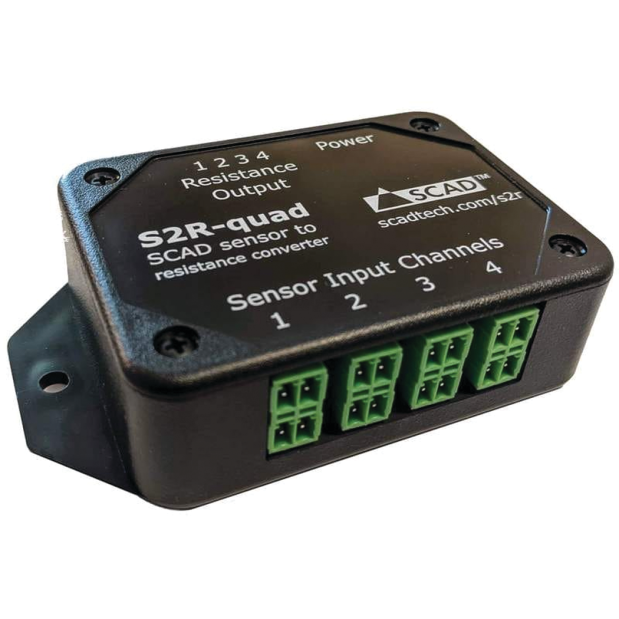

SCAD's S2R-quad transforms the output from SCAD's well-known electronic tank level sensors into a standard variable resistance output of up to 240 Ohm. The S2R allows SCAD's sensors to be compatible with standard float sensor inputs found in digital vehicle and vessel monitoring and switching systems, including the Victron Cerbo GX (not designed for use with analog float sensor gauges).

Note: SCAD sensors are designed for use with SCAD monitors, which pulses regulated power to the sensor periodically. Powering SCAD sensors by other means may result in damage to the sensor or inconsistent readings.

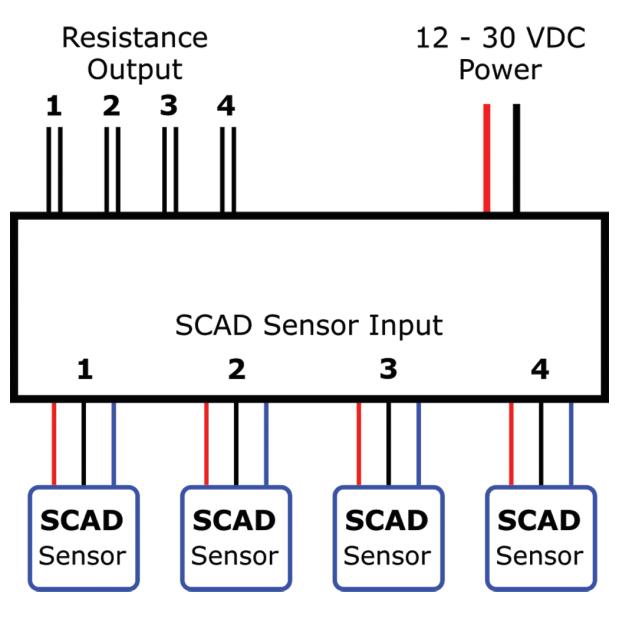

• Periodically reads and stores tank level from up to four SCAD sensors
• Outputs variable resistance up to 240 Ohm (similar to American float sensor type output)
• Automatically calibrates SCAD sensor for empty and full values (requires one empty-full tank level cycle)
• Optional custom calibration service for OEM customers
• 12 to 30 volts DC power
• Connector plugs provided
