INTERNAL TANK SENSOR (6-24INCH)
Tank Sensors
Share THIS PAGE:

Tank Sensors

External and Internal - for Holding & Water Tanks

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

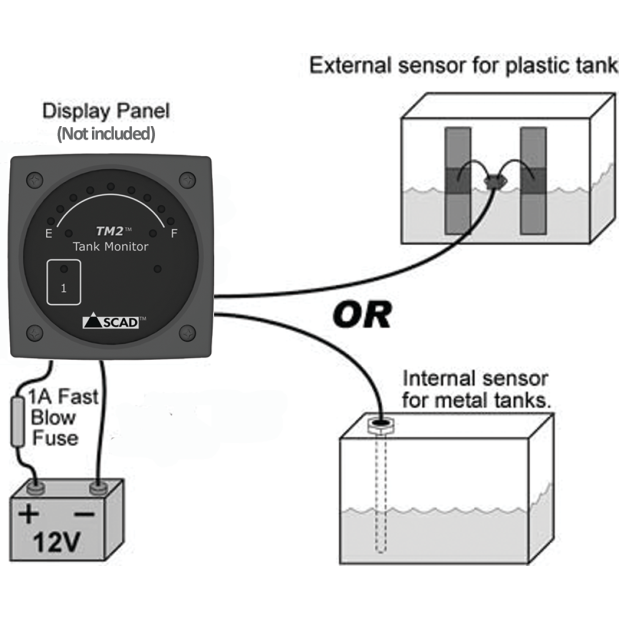

The Tank Monitor system includes a convenient “power on” function that lets you know that your sensor has been installed, and is functioning, correctly.

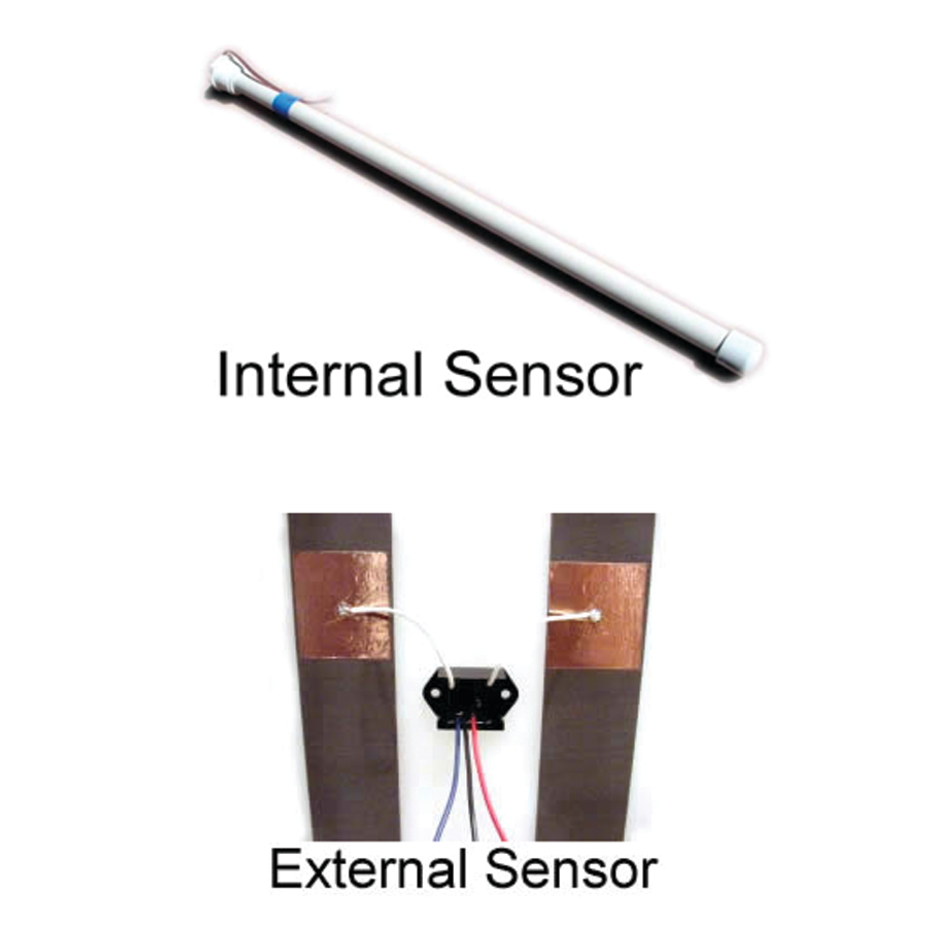

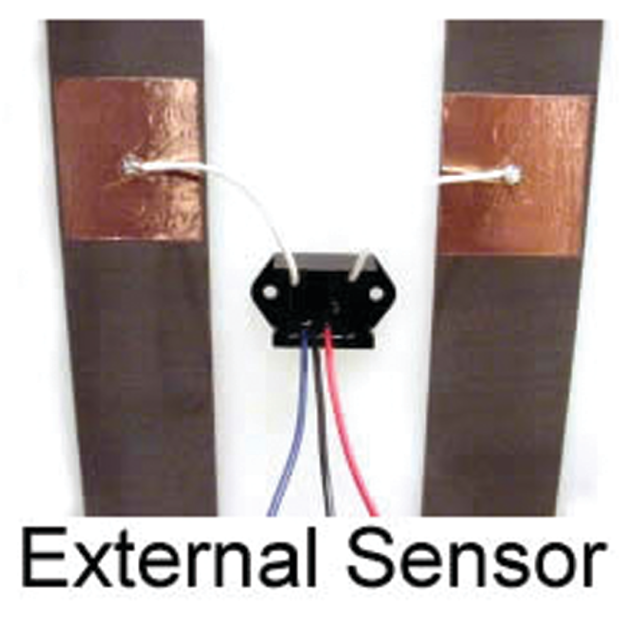

• External tank sensor is adhesive-backed

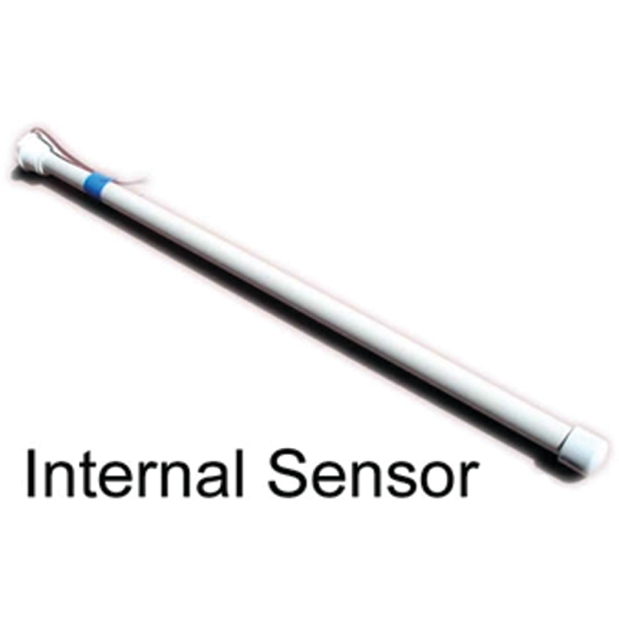

• Internal tank sensor is used on metal, wood-core, or plastic tanks that are inaccessible, or otherwise non-compatible with the external sensor tapes. These are completely solid-state sensors encased in a PVC tube. The sensor installs in a 1" NPT threaded port in the top of your tank

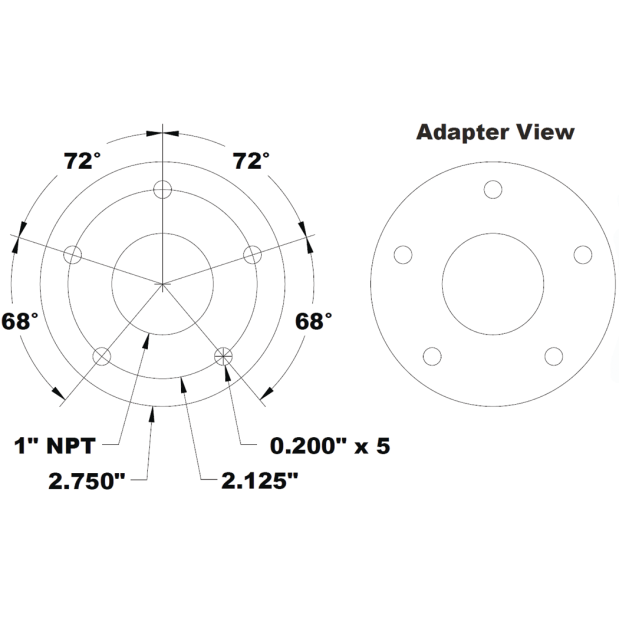

• An adaptor plate is available for an internal sensor installation where a 5-hole SAE inspection/sensor plate already exists in the tank (see table). The adapter plate has a 1" NPT threaded hole in the center for mounting the internal tank sensor

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDSCAD Technologies#AvailabilityDescriptionUOMYour PriceQTY
215311SAI 10022 10022Loading...Tank Sensors , External Paste-on Tank SensorLoading...
215312SAI 10021 10021Loading...Tank Sensors , Internal Tank Sensor (6" - 24" Deep Tank) Loading...
215318SAI 10025 10025Loading...Tank Sensors , Internal Tank Sensor (25" - 36" Deep Tank)Loading...
215319SAI 10029 10029Loading...Tank Sensors , Adapter Plate for Internal Tank SensorLoading...
Add To Cart
