Standard High Reach Swivel J Spout Mixer
- Long 6-1/2" spout
- Chrome plated brass
- 1/2" NPT fittings
Description
This mixer is part of Scandvik's Standard family of faucets. It features a long, 6-1/2" spout extension beyond the base.
• Water connection - hot and cold 8" flexible supply lines with 1/2" female NPT supply end fittings with sealing washers
• Mounting hole - 1"
• Alternate part # SCA 10438

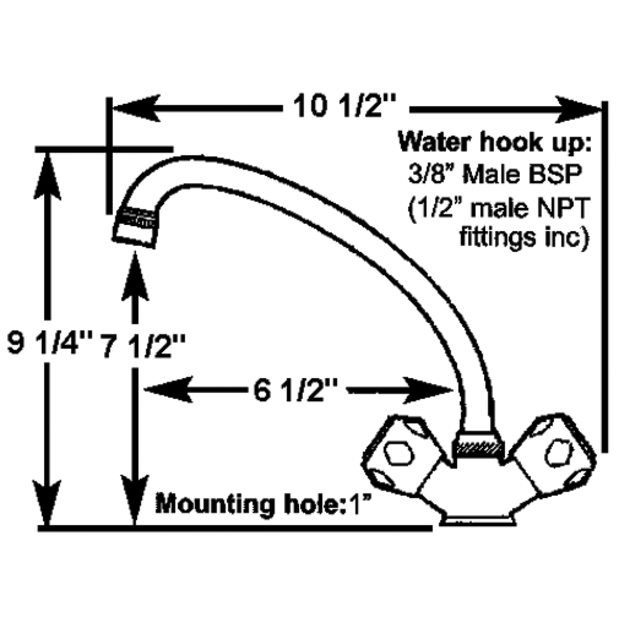

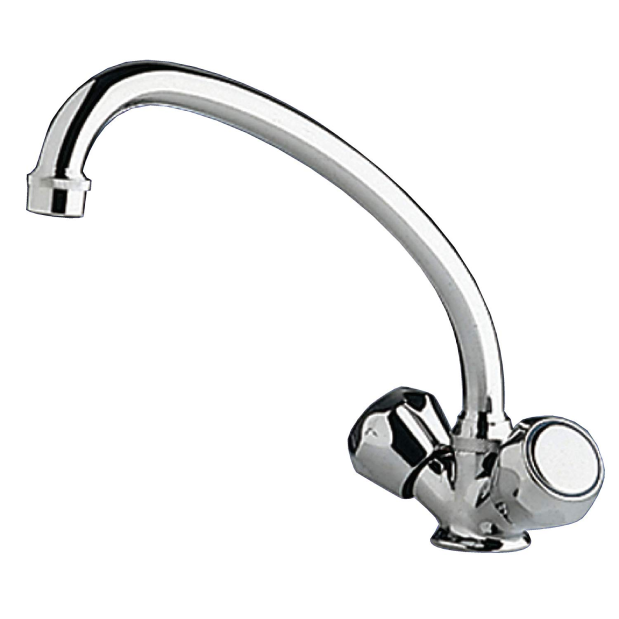

• Note - the dimension diagram is not drawn to scale; although the numbers are correct, the spout doesn't extend out over the sink as far as the drawing implies; the photograph is true to life
Specifications
MFG #:10438P
Type
Standard Family - High Reach Swivel J Spout
Weight
5 lb
Height Above Sink
9-1/4"
Alternate SCA Part #
10438
Spout Extension
6-1/2"
Base Diameter
1-13/16"
