ATMOS 12V Integrated Air Station

ATMOS, by Scanstrut, will revolutionize your family’s boating experience. This beautifully designed, in-built air station is here to maximize quality time on the water.

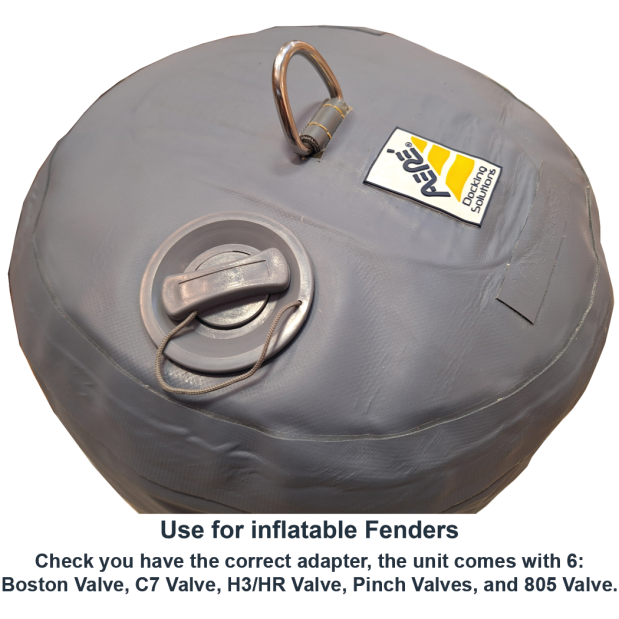

At the push of a button, ATMOS is ready to inflate your paddleboards, towables, fenders and more: simply set the target pressure and let ATMOS do all the hard work.

Utilizing Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh marine environment.

• Waterproof rating - IPX6 waterproof front and back
• Input voltage - 12V Battery system (10-14V)
• Max Pressure output - 20 PSI / 1.37 BAR
• Max current draw - 12A (140W)
• Standby current draw - 0.02W Max
• Two-stage pump - Stage 1 = 0 -1 PSI, Stage 2 = 1.1 - 20 PSI
• The pump comes with the Sun cover, 2.5M (8ft) hose and 6 different adapters including; Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, and 805 Valve.

Typical Inflate / Deflate Stats

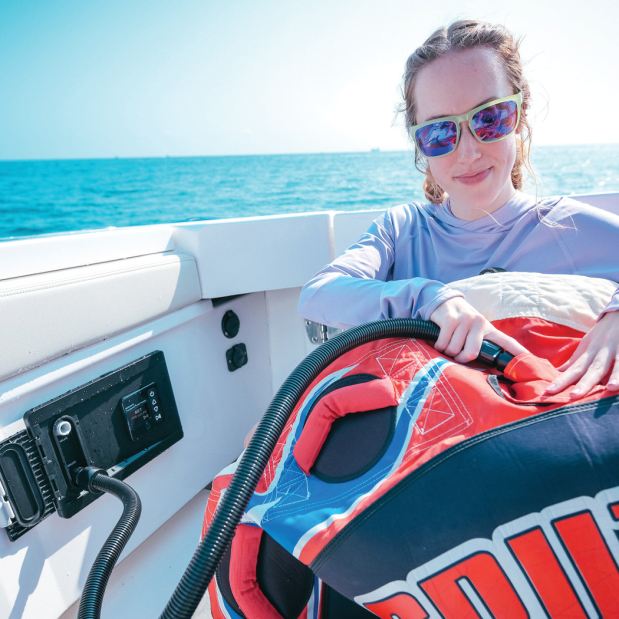

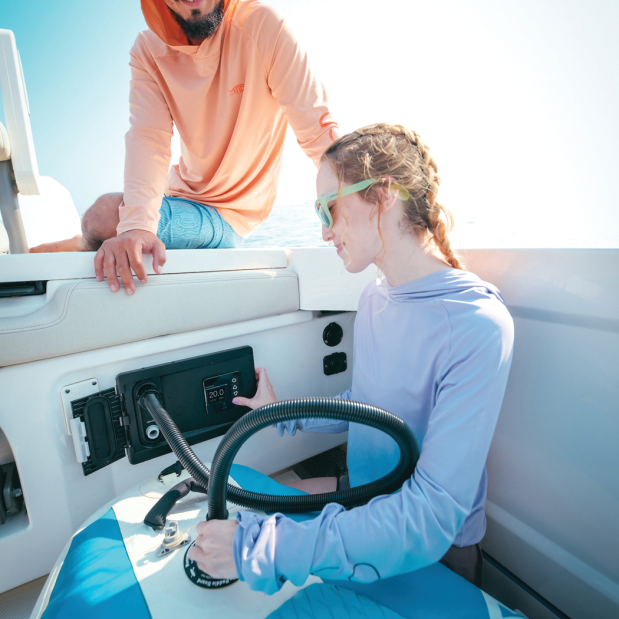

Featuring next-gen air pump technology to provide fast, effortless inflation (and deflation) for your on-water toys. Compact and shallow, ATMOS fits into almost any panel on board such as seating, consoles, or near the swim platform. Now you have ready-to-go air, right where it’s needed, for even more family fun on the water.

Towables
• Inflate: 1.5 PSI > 3 mins
• Deflate: 1.5 PSI > 1 min

10ft SUP
• Inflate: 20PSI in 6-8 mins
• Deflate: 20PSI > 1 min

4M Platform
• Inflate: 5 PSI > 16 mins
• Deflate: 5 PSI > 1 min

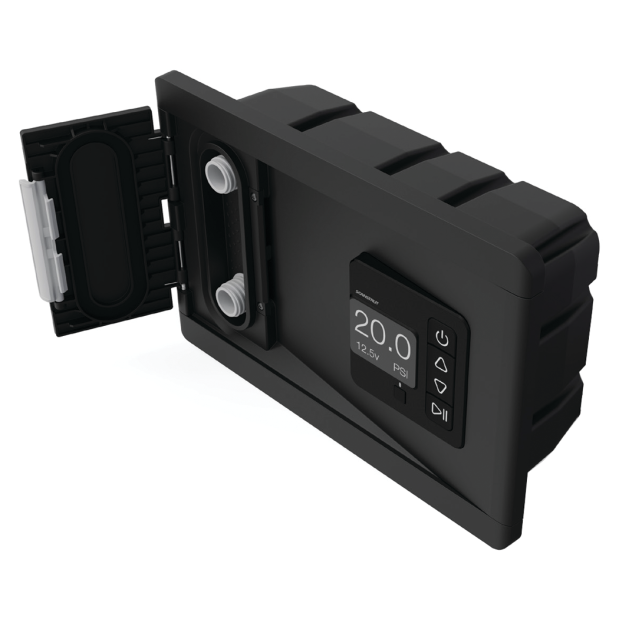

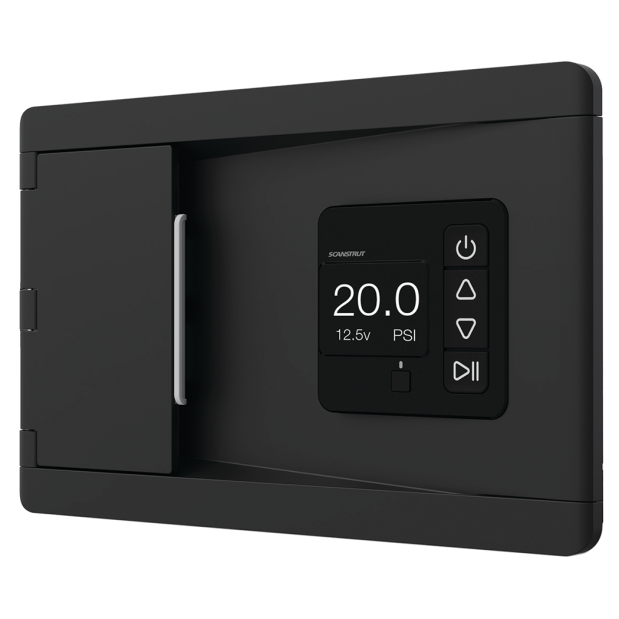

The front.
Take control with our Soft Touch TPE buttons and cutting-edge LCD display. Specially crafted for the challenging marine environment, the buttons feature a non-slip texture that provides a tactile surface, even with wet hands and the bright, wide viewing angle display means you can have a great view from any place on the boat, even on the brightest days. The display also features a helpful Live Voltage readout, so you can easily keep track of your boat's battery health.

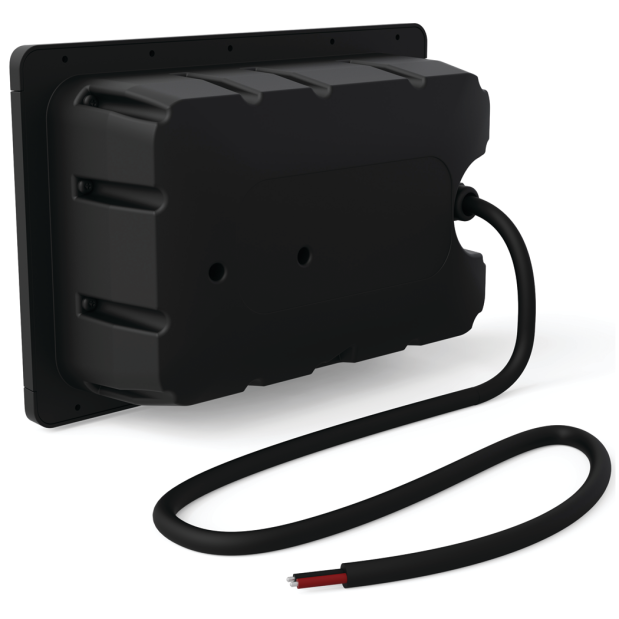

The back.
Easily integrate ATMOS into your boat with its compact and shallow design. The versatile airstation can be installed in a variety of locations, including seating, consoles, or by the swim platform, making it convenient and accessible wherever it's needed. Easily installed into any panel using 10 self-tapping screws, with a foam gasket included to ensure a secure and waterproof fit.

The side.

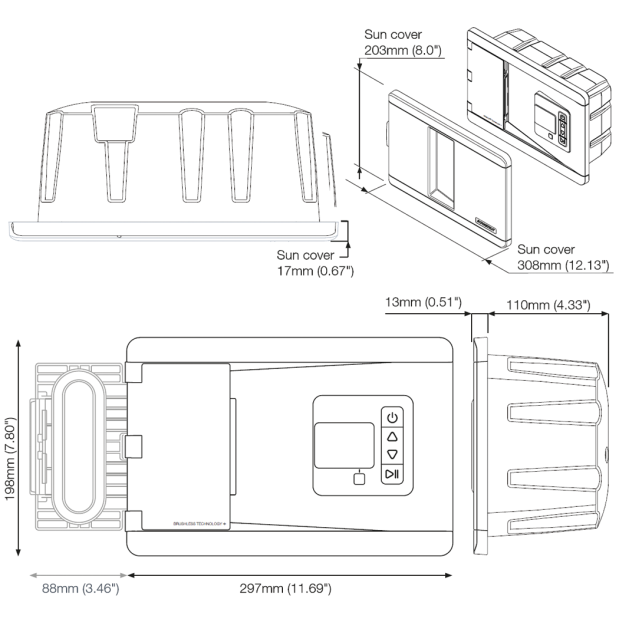

The minimum cavity depth required is 110mm/4.33", and it can be installed at an angle ranging from +10º to -30º from vertical. The power cable length is 500mm (20”) with a wire gauge of 2.0mm2 (14 AWG), please note that there are no end-user serviceable parts.

What's In The Box?

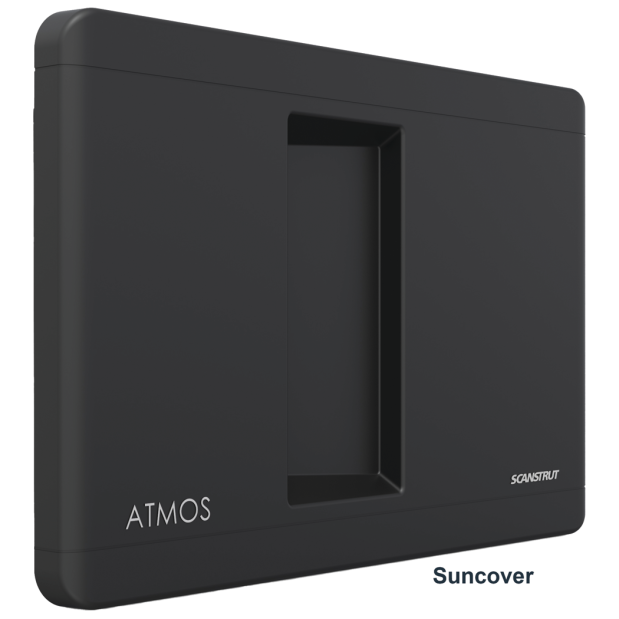

• Sun Cover: Supplied with a durable sun cover, it can shield it from the sun, salt, and other elements' harmful effects over time. By using our sun cover, you can maintain ATMOS' optimal appearance for an extended period.

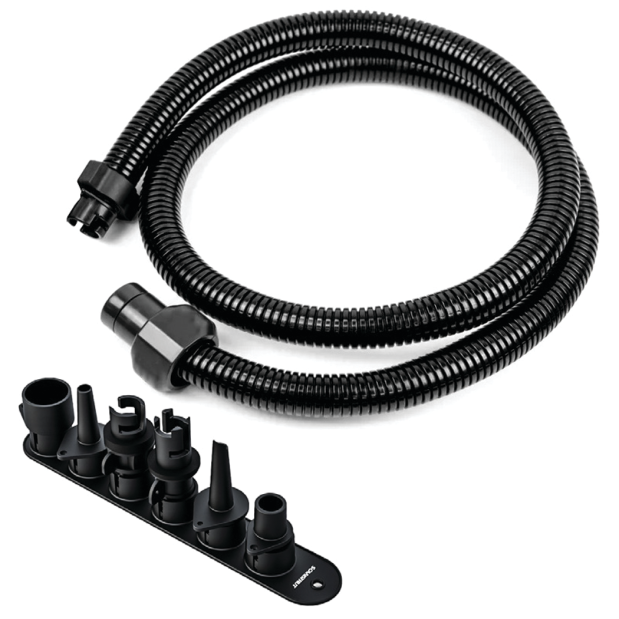

• 2.5M (8ft) hose: When inflating a paddleboard on a boat, it is typically best to place the pump on the deck or a flat surface for stability. Yet, if the hose is too short, this positioning may not be convenient for easy inflation. A longer hose can resolve this issue by extending the reach of the pump.
• 6x Hose attachments: Supplied with six adapters such as Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, and 805 Valve, you'll have all the necessary tools to easily inflate and deflate your toys regardless of the valve type.
