Description

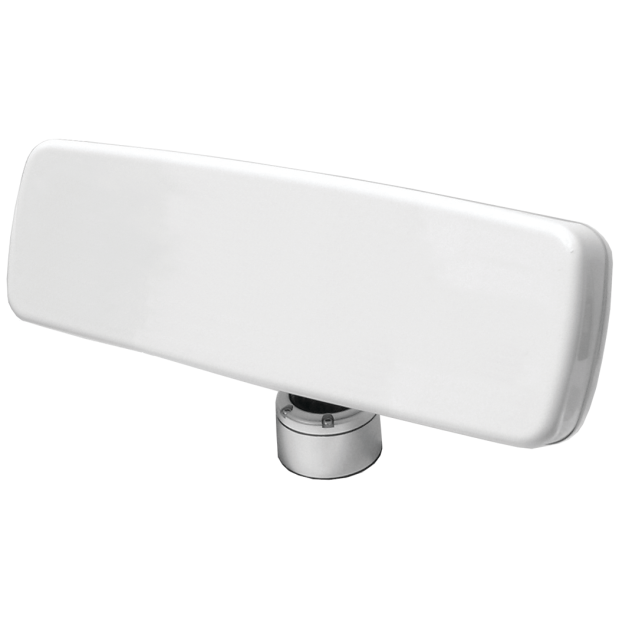

The SPD-4XI-W enables the installation of your instruments on nearly any flat surface aboard. This feature ensures that your instruments are positioned optimally while you are sailing on your sailboat.
By simply pulling a lever, the user-friendly design provides a 360-degree viewing angle, allowing you to fully utilize the capabilities of your instruments.
Swivel & Tilt Base
One-handed quick-release action. simply release the lever, swivel and tilt to suit your requirements before locking back into position.
Best Viewing Angle
An adjustable ball joint allows a range of movement and multiple mounting angles.
Added Strength
Inner bracing plate secures the deck pod base to the pod and gives increased rigidity to the assembly eliminating potential damaged from shock and vibration.
Overhead Mounting
Deck Pod models can be overhead mounted. refer to our fit my device tab on our website.
Hassle-Free Install & Service
Fixings fit from back to front cutting their threads into injection moulded abs inserts designed into the Pod front. this design allows for a quick and safe install and repeat servicing.
Increased Protection
Deck Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won’t deteriorate over time.

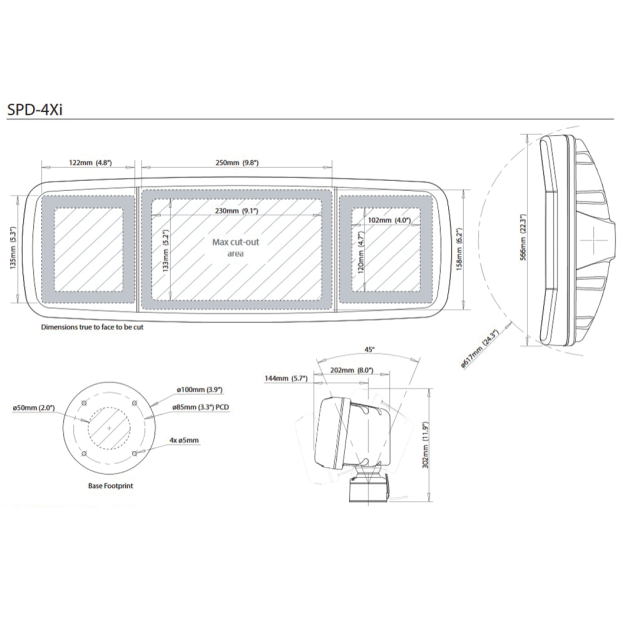

Supplied Uncut
As standard you will receive your Scanpod. for a small charge factory cutting service is available.
Compatibility Checker
B&G
• 10 / 10 HV
Triton /Triton²,
Triton²,
Vulcan 7 (without flush mount),
Zeus Touch 7,
Zeus2 7
Furuno
• FI-50 STD Instruments,
GP-1871F,
NAVpilot-300,
NAVpilot-711C
Garmin
• EchoMap 7 Series,
Echomap Plus 6,
Echomap Plus 7,
ECHOMAP UHD 6",
ECHOMAP UHD 7",
GMI 10,
GMI™ 20,
GNX™,
GNX™ 20,
GNX™ 21,
GPSMAP 720/720s,
GPSMAP 722/722xs,
GPSMAP 740/740s,
GPSMAP 750/750s,
Striker 5,
Striker 7,
Striker Plus 5,
Striker Plus 7,
STRIKER Vivid 5cv,
STRIKER Vivid 7cv,
STRIKER Vivid 9sv
Lowrance
Elite 5/ Mark 5/Elite 5Ti,
Elite 7,
Elite 7 Ti / Ti2,
HDS-5 / HDS-5m / HDS-5x,
HDS-7 / HDS-7m,
HDS-7 Carbon,
HDS-7 Gen 3,
HDS-7 LIVE,
HDS-7(m) Gen2 Touch,
HOOK 7 / 7x
Nexus
• NX, NX2 Digital, NX2 Analogue
Northstar
• Explorer 310 Instruments
Raymarine
• A65/A67/A68,
A75 / A77 / A78,
Alpha 7,
Alpha 9,
Axiom 7,
Axiom 7+,
E7/E7D,
Element 7 HV,
Element 7 S,
i70, p70, p70r,
ST290 Analogue,
ST60+,
ST70,
T100 Series
Simrad
AP24,
AP44,
AP48,
Cruise 5,
Go5 XSE,
Go7 (without flush mount),
Go7 XSR,
IS20,
IS35 Digital Gauge,
IS42 Digital Display,
IS42J Digital Gauge,
IS70/IS80,
NSS-7,
NSS-7 evo2
Tacktick
• Maxi Display T100 Series
