Ultra-rapid USB charging tailored for the next-generation boater.
The Flip Pro is engineered for compatibility with both 12V and 24V inputs, featuring one USB-A and one USB-C charging port. This configuration offers the best connection options and ensures the quickest charging for your devices while onboard.

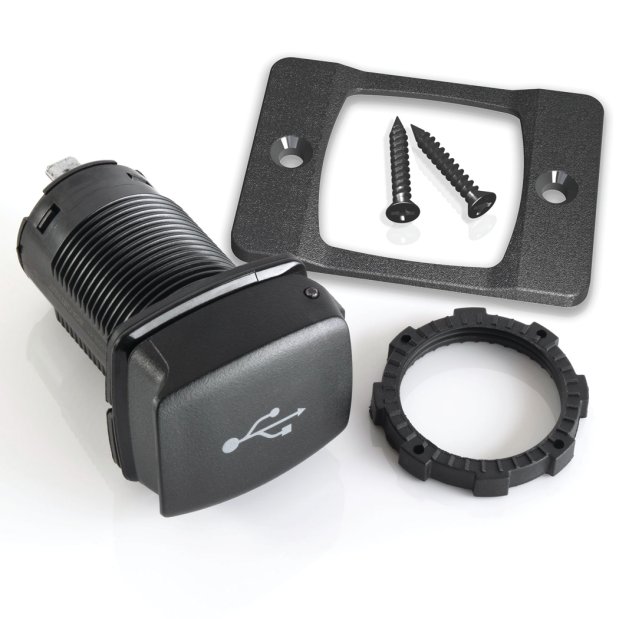

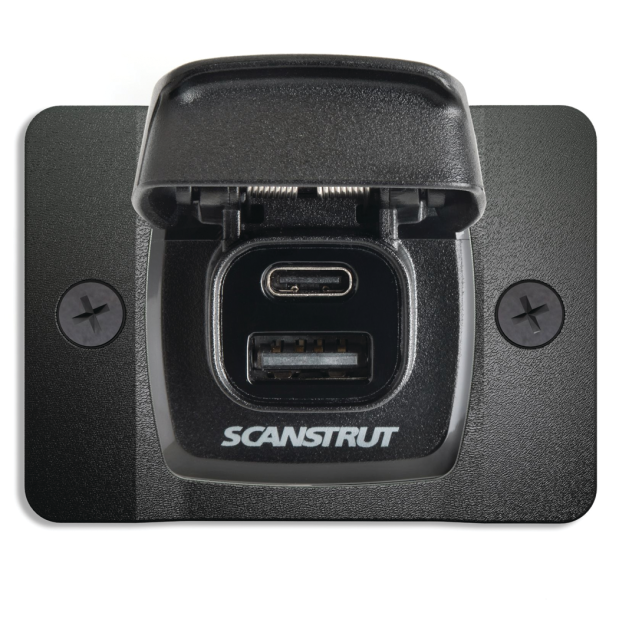

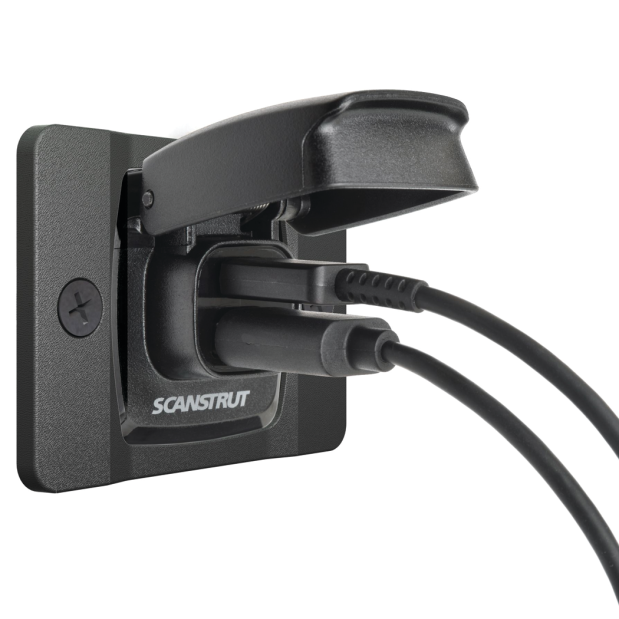

The Flip Pro, equipped with a front bezel, was developed as an adaptation of the original SC-USB-F1 to enhance installation flexibility. In certain situations, accessing the area behind panels may be challenging. Consequently, the front-fit bezel provides an alternative installation method, allowing the product to be mounted from the front using screws. When not in operation, the spring-loaded cap securely closes, safeguarding the ports from environmental factors. During charging, it swiftly locks open to protect your cables while connected.
With its exceptionally compact design, the Flip Pro is made from high-quality, marine-grade materials and is rated IPX4 waterproof, ensuring it is fully prepared for washdown.
The Flip Pro is incredibly fast! It delivers 36W of charging power on a 12V system and up to 60W on a 24V system. This capability makes it ideal for charging contemporary laptops through the USB-C port. Additionally, it charges large tablets at twice the speed and is designed to seamlessly charge both an iPad Pro and an iPhone simultaneously.
The installation cut-out aligns with standard USB sockets, facilitating easy retrofitting or replacement of an existing USB charger, enabling you to accommodate the increased power demands of modern electronic devices.
• Universal fit for any USB-A or USB-C connectors.
- USB – C output: 60W max on 24V system, 36W max on 12V system
- USB – A output: 36W max
• Fast charge (60W max) up to 2 devices at a time.
• Easy Install, using standard USB mounting hole - 29mm (1 1/8”)
• IPX4 waterproof with the cover closed
• Internal anti-corrosion protective coating
• UV resistant
• 316 stainless hinge and spring
• Input Voltage: 10-32V DC (12/24V system)
• Input Current: Max 6A (10A fuse recommended)
• Output (Type C): 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
- 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
• Output (Type A): 5V⎓1.5A, 9V⎓1.5A, 12V⎓1.5A/3A MAX
• Standby Draw: 0.01W
• Certification: CE, FCC, UKCA, C-Tick, ROHS
Important information
The charge cable supplied with your device (tablet, phone, action camera, etc) must be used to achieve maximum charge performance from this charger. Phones will charge at the same speed whether on a 12V or 24V input voltage system. However, a 24V system must be used to get the full 60W output suitable for fast charging laptops.
