SC-USB-F3 Flip Pro Max USB Socket

The Scanstrut Flip Pro USB Charge range is a cutting-edge marine-grade charging solution designed to provide reliable and fast USB charging for the outdoors. The range of chargers combines durable construction, advanced USB technology, and a user-friendly design to ensure a trouble-free charging experience while out on the water.

Flip Pro Max is designed for use with either a 12V or 24V input and features 2x 60W USB-C charging ports. This provides the fastest charging for your devices onboard.

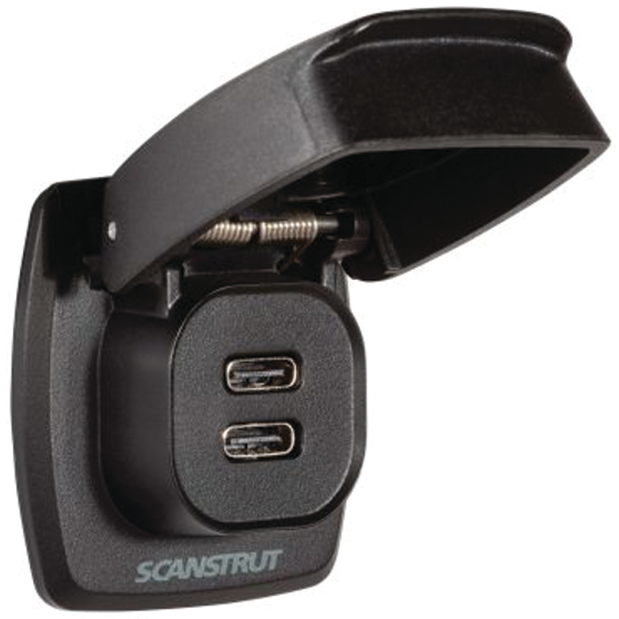

When not in use, the spring-loaded cap remains tightly closed, protecting the ports from the elements. When charging, it quickly locks open to protect your cables when plugged in.

Featuring a super-compact footprint, Flip Pro Max is constructed from premium, marine-grade materials. and is IPX4 waterproof, making it completely washdown-ready.

Flip Pro Max is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops and large tablets, phones and any other USB-C powered devices onboard.

USB – C output:
• 60W max on 24V system
• 36W max on 12V system

Universal
• Universal fit for any USB-C connectors.
• Fast charge (60W max) up to 2 devices at a time.

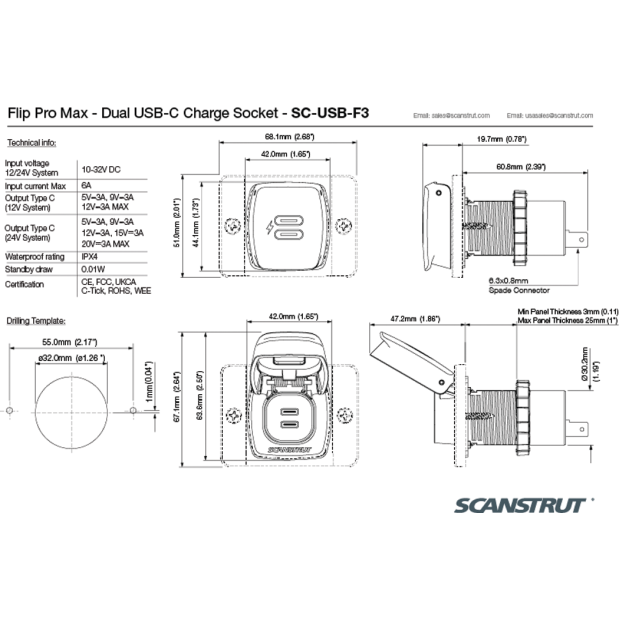

Installation
• Easy install, using a Ø32mm (1.25”) hole saw.
• Supplied as standard with an optional front fit bezel.

Marine Ready
• Internal anti-corrosion protective coating.
• UV resistant.
• 316 stainless hinge and spring.
• IPX4 waterproof with the cover closed.

Electrical Information
• Input voltage: 10-30V DC (12/24V System)
• Input current Max: 6A (10A fuse recommended)
• Standby power draw: 0.01W

Important information
To maximize charge performance, use the cable supplied with your tablet, phone etc. (C to C, or C-lightning)Phones charge at the same speed on either a12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops.
