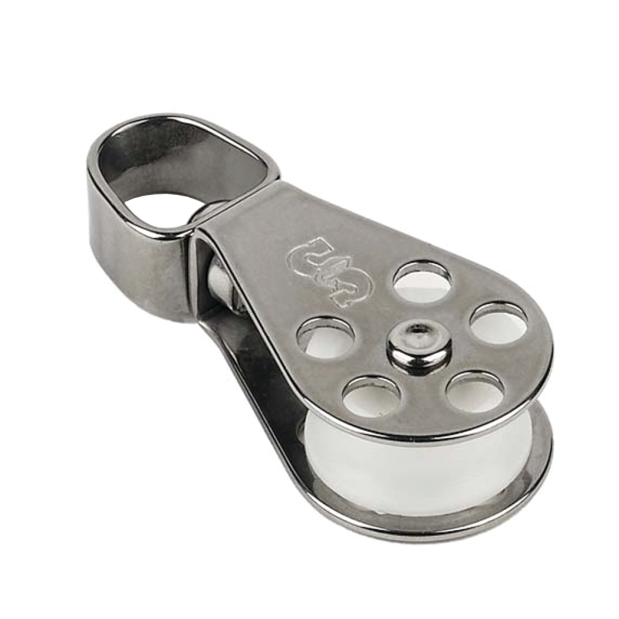

19mm 1 Series Block - Swivel Eye
Description
Each block is constructed of tumbled and polished stainless steel. Self-lubricating high impact Delrin® sheaves turn on polished, stainless spacers to function with a minimum of friction, even under heavy loading. Head shackles are high quality stainless steel with clevis pin and cotter ring attachment.
• Stainless with white Delrin® sheaves
• Pin size: 3/16"
Specifications
MFG #:01-07
Length
2" (52mm)
Max Line
1/4" (6mm)
Sheave Diameter
3/4" (19mm)
SWL
750 lbs. (340kg)
Type
Swivel Eye
Weight
1oz. (28gm)
Width
7/8" (22mm)
Barcode
740507000140
